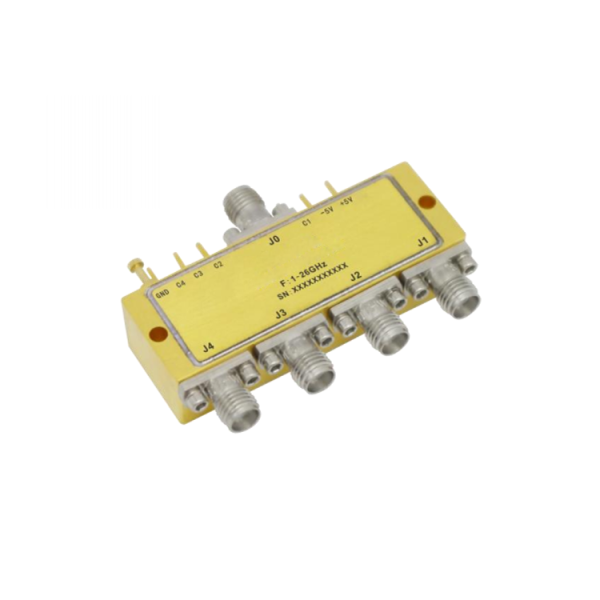

Absorptive Coaxial SP4T Switch from 1GHz to 26GHz .OSR0401002600A

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 1GHz to 26GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSR0401002600A Categories: Active Device, SP4T, Switch

Description



PDF

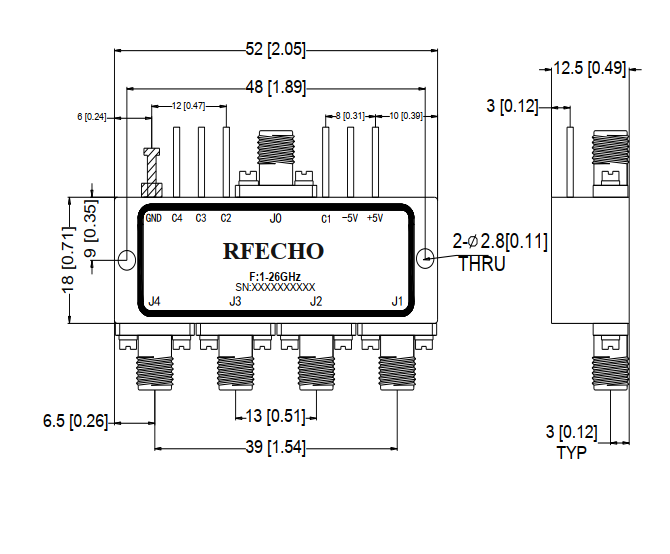

Outline



text





Additional information

Min. Frequency (GHz)

1

Max. Frequency (GHz)

26

VSWR (Max.)

1.6

Switch Type

SP4T

RF Input Power (W)

0.2

Insertion Loss (dB)

3
