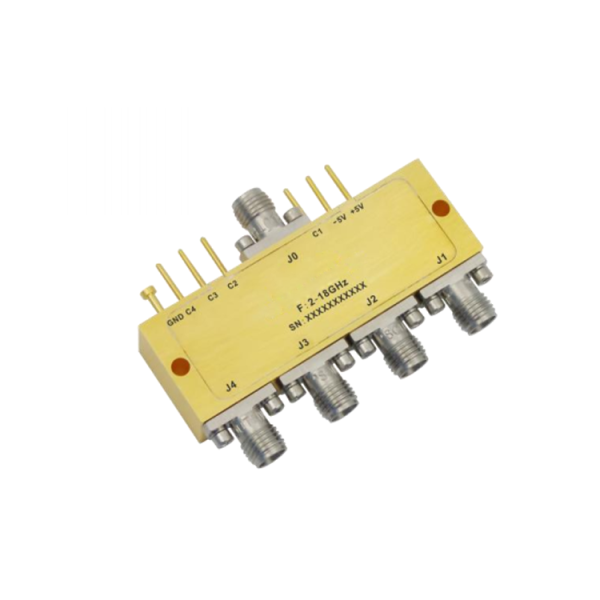

Absorptive Coaxial SP4T Switch from 2GHz to 18GHz .OSA0402001800C

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 2GHz to 18GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSA0402001800C Categories: Active Device, SP4T, Switch

Description



PDF

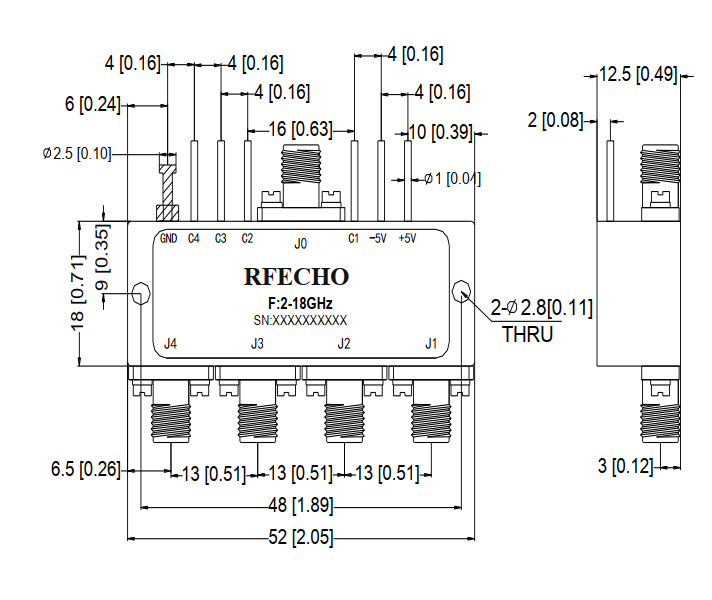

Outline



text





Additional information

Min. Frequency (GHz)

2

Max. Frequency (GHz)

18

VSWR (Max.)

1.5

Switch Type

SP4T

RF Input Power (W)

1

Insertion Loss (dB)

2.7
