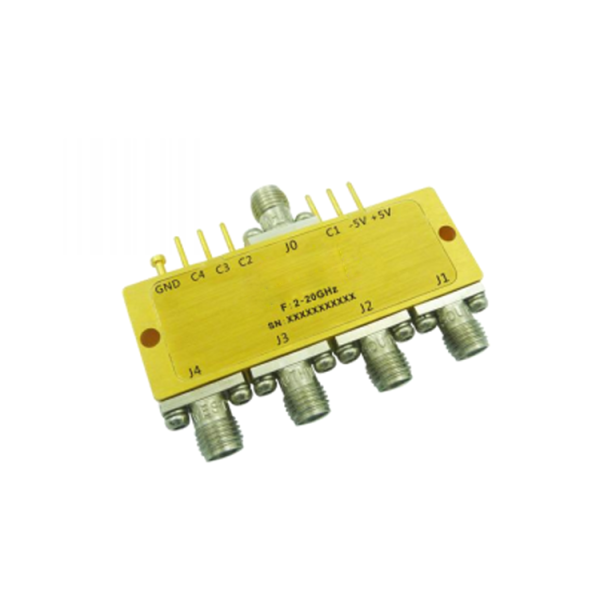

Absorptive Coaxial SP4T Switch from 2GHz to 20GHz .OSR0402002000A
Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 2GHz to 20GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.
Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.
- Description
- Additional information
- Reviews (0)
Additional information
Min. Frequency (GHz) | 2 |
---|---|
Max. Frequency (GHz) | 20 |
VSWR (Max.) | |
Switch Type | SP4T |
RF Input Power (W) | 1 |
Insertion Loss (dB) | 2.7 |
