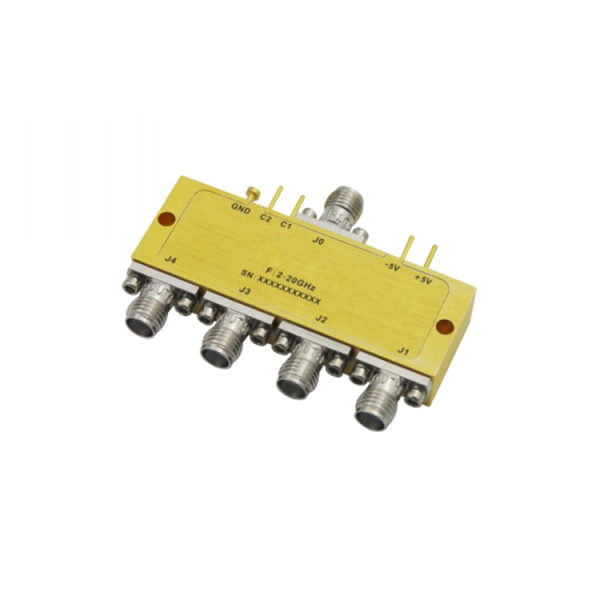

Absorptive Coaxial SP4T Switch from 2GHz to 20GHz .OSR0402002000B

HOT

Absorptive Coaxial SP4T Switch from 2GHz to 20GHz .OSR0402002000B

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 2GHz to 20GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSR0402002000B Categories: Active Device, SP4T, Switch

Description



PDF

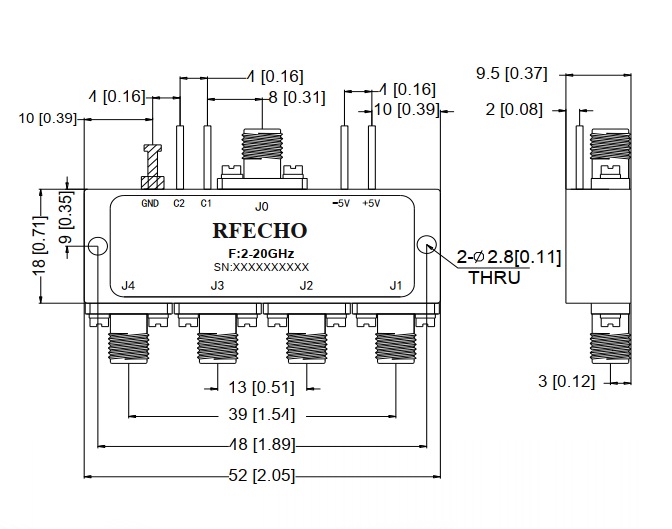

Outline



text





Additional information

Min. Frequency (GHz)

2

Max. Frequency (GHz)

20

VSWR (Max.)

1.8

Switch Type

SP4T

RF Input Power (W)

1

Insertion Loss (dB)

3.5
