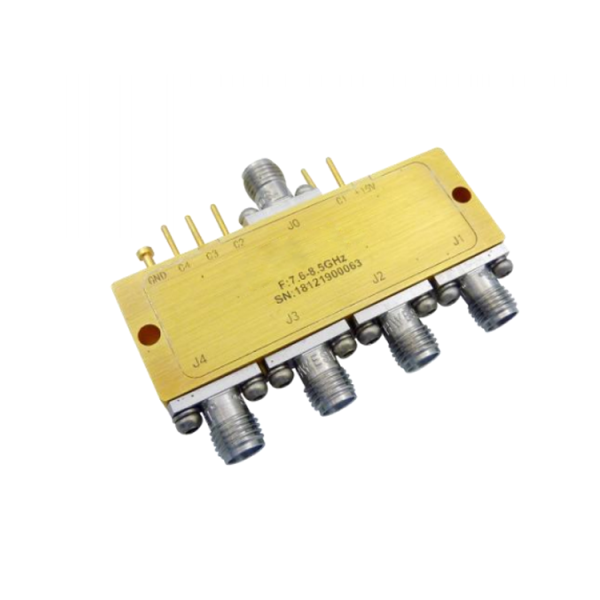

Absorptive Coaxial SP4T Switch from 7.6GHz to 8.5GHz .OSA0407600850A

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 7.6GHz to 8.5GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSA0407600850A Categories: Active Device, SP4T, Switch

Description



PDF

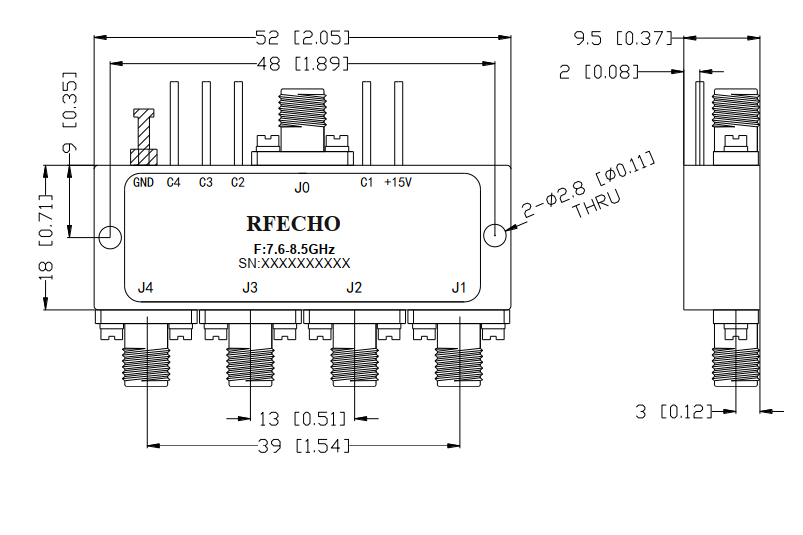

Outline



text





Additional information

Min. Frequency (GHz)

7.6

Max. Frequency (GHz)

8.5

VSWR (Max.)

1.5

Switch Type

SP4T

RF Input Power (W)

1

Insertion Loss (dB)

2.5
