Absorptive Coaxial SP5T Switch from 0.1GHz to 50GHz .OSA0500105000A

HOT

Absorptive Coaxial SP5T Switch from 0.1GHz to 50GHz .OSA0500105000A

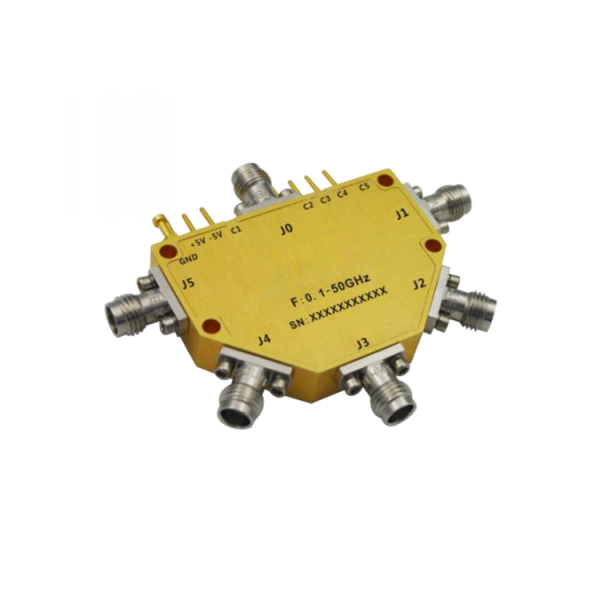

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 0.1GHz to 50GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSA0500105000A Categories: Active Device, SP5T, Switch

Description



PDF

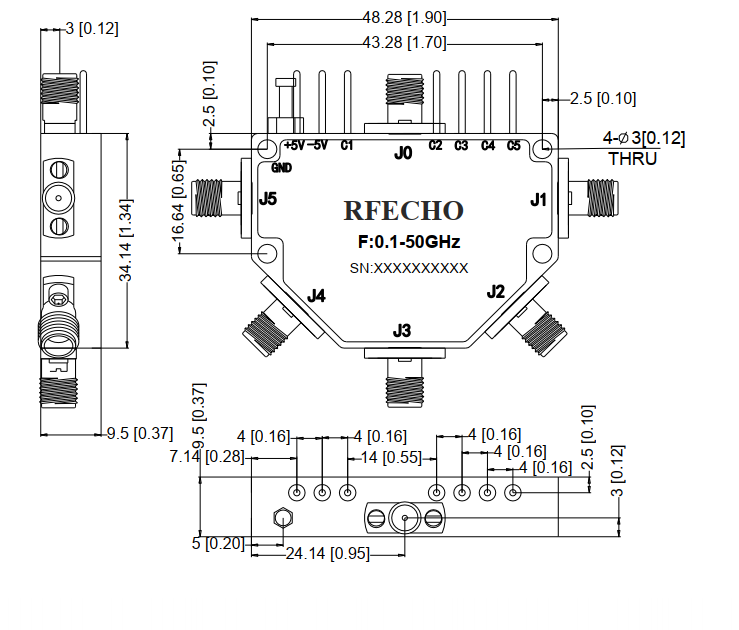

Outline

text









Additional information

Min. Frequency (GHz)

0.1

Max. Frequency (GHz)

50

VSWR (Max.)

2.2

Switch Type

SP5T

RF Input Power (W)

0.6

Insertion Loss (dB)

8
