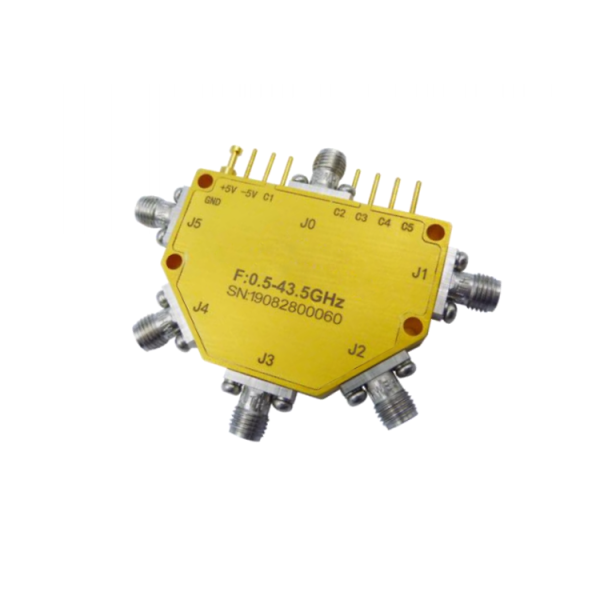

Absorptive Coaxial SP5T Switch from 0.5GHz to 43.5GHz .OSA0500504350A

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 0.5GHz to 43.5GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSA0500504350A Categories: Active Device, SP5T, Switch

Description



PDF

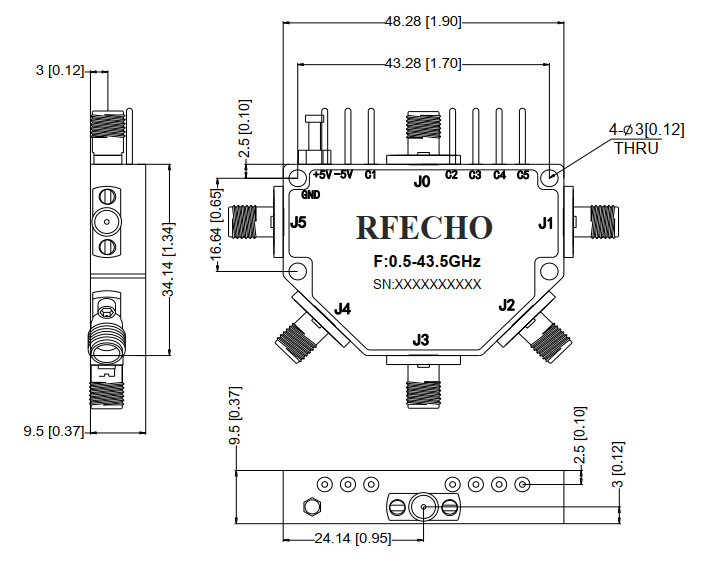

Outline

text









Additional information

Min. Frequency (GHz)

0.5

Max. Frequency (GHz)

43.5

VSWR (Max.)

2

Switch Type

SP5T

RF Input Power (W)

0.2

Insertion Loss (dB)

6
