Absorptive Coaxial SP8T Switch from 0.05GHz to 6GHz .OSA0800050600C

HOT

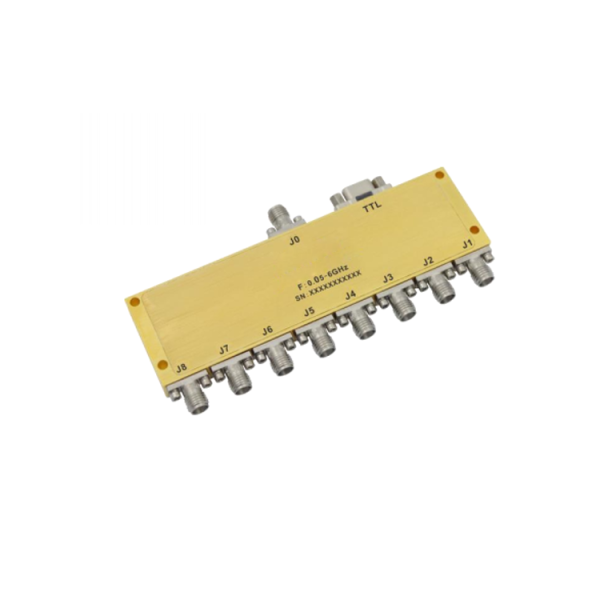

Absorptive Coaxial SP8T Switch from 0.05GHz to 6GHz .OSA0800050600C

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 0.05GHz to 6GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSA0800050600C Categories: Active Device, SP8T, Switch

Description



PDF

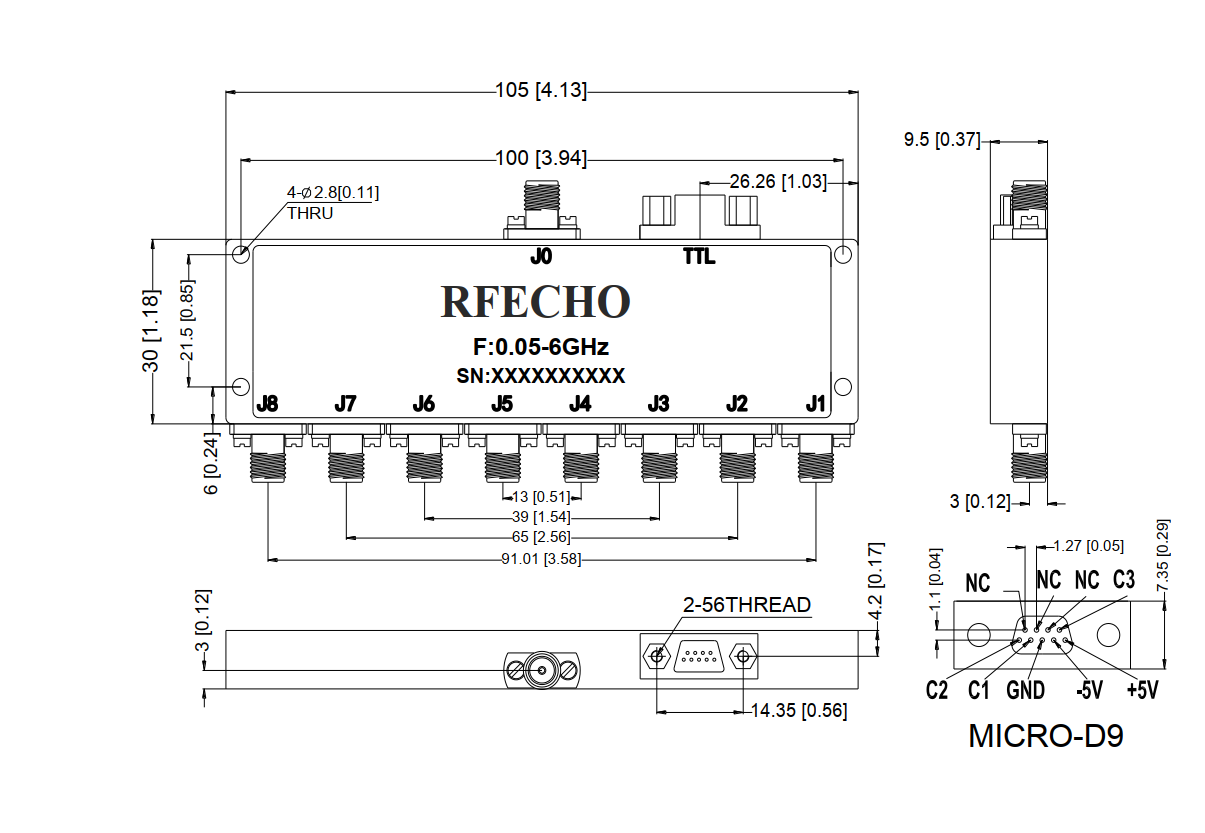

Outline

text







Additional information

Min. Frequency (GHz)

0.05

Max. Frequency (GHz)

6

VSWR (Max.)

1.7

Switch Type

SP8T

RF Input Power (W)

1

Insertion Loss (dB)

3.2
