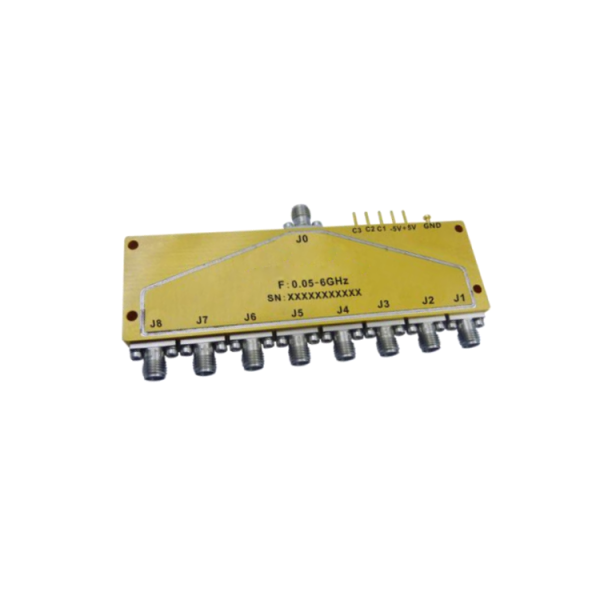

Absorptive Coaxial SP8T Switch from 0.05GHz to 6GHz .OSA0800050600D
Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 0.05GHz to 6GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.
Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.
- Description
- Additional information
- Reviews (0)
Additional information
| Min. Frequency (GHz) | 0.05 |
|---|---|
| Max. Frequency (GHz) | 6 |
| VSWR (Max.) | |
| Switch Type | SP8T |
| RF Input Power (W) | 1 |
| Insertion Loss (dB) | 3.2 |
