Absorptive Coaxial SP8T Switch from 2GHz to 12GHz .OSR0802001200B

HOT

Absorptive Coaxial SP8T Switch from 2GHz to 12GHz .OSR0802001200B

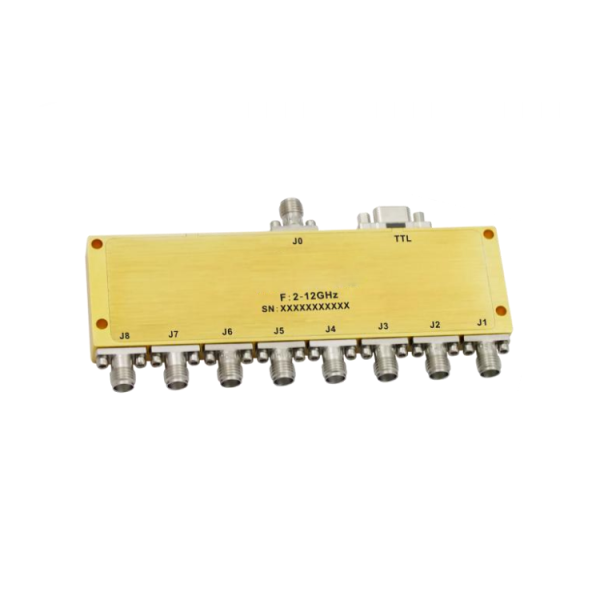

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 2GHz to 12GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSR0802001200B Categories: Active Device, SP8T, Switch

Description



PDF

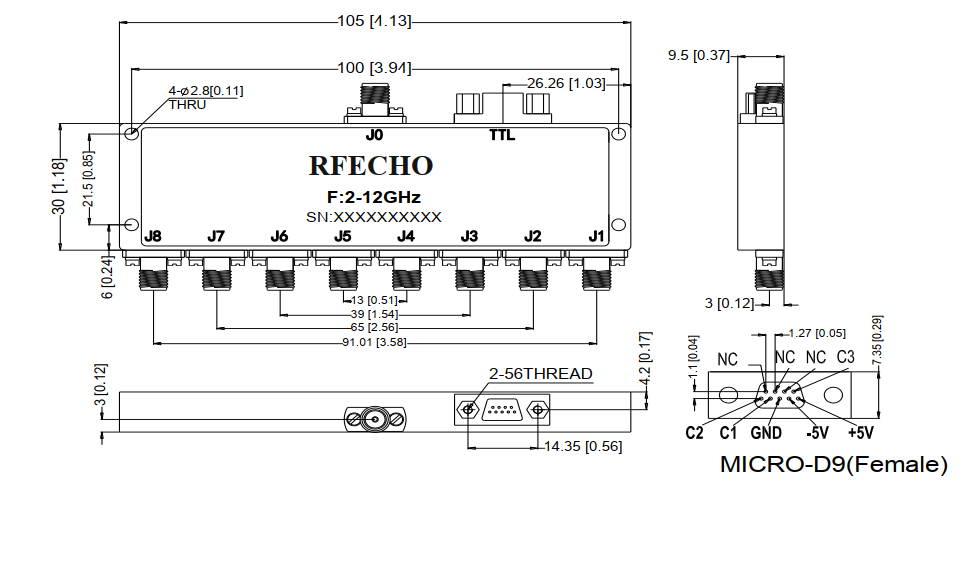

Outline

text







Additional information

Min. Frequency (GHz)

2

Max. Frequency (GHz)

12

VSWR (Max.)

1.6

Switch Type

SP8T

RF Input Power (W)

1

Insertion Loss (dB)

1.8
