Absorptive Coaxial SPST Switch from 2GHz to 20GHz .OSA0102002000A

HOT

Absorptive Coaxial SPST Switch from 2GHz to 20GHz .OSA0102002000A

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 2GHz to 20GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSA0102002000A Categories: Routing, SPST, Switch

Description



PDF

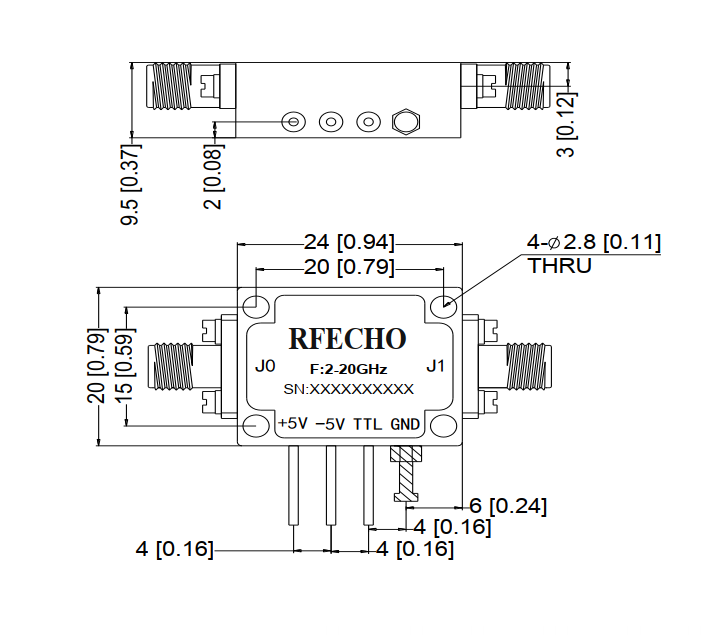

Outline



text





Additional information

Min. Frequency (GHz)

2

Max. Frequency (GHz)

20

VSWR (Max.)

1.8

Switch Type

SPST

RF Input Power (W)

1

Insertion Loss (dB)

2.8
