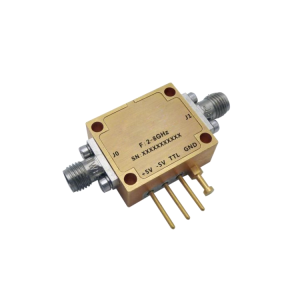

Absorptive Coaxial SPST Switch from 2GHz to 8GHz .OSR0102000800A

Rf echo Absorptive Coaxial Mechanical Switch is an active microwave device, and its frequency range from 2GHz to 8GHz . our Absorptive Coaxial Mechanical Switch has Magnetic latching, Operating life of 1 million cycles, etc.

Rf echo Absorptive Coaxial Mechanical Switch is commonly used in Wireless Infrastructure, RF Microwave & VSAT, 5G communicationFiber Optics, Test and measurement Instrument and other applications.

SKU: OSR0102000800A Categories: Routing, SPST, Switch

Description



PDF

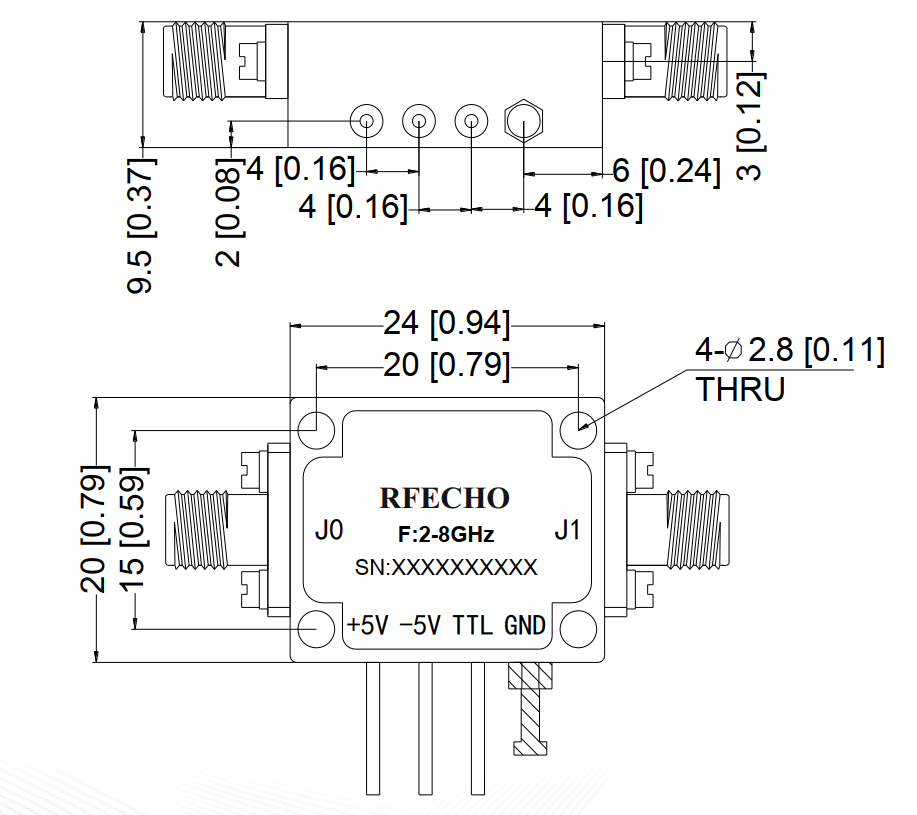

Outline



text







Additional information

Min. Frequency (GHz)

2

Max. Frequency (GHz)

8

VSWR (Max.)

1.5

Switch Type

SPST

RF Input Power (W)

1~10

Insertion Loss (dB)

1
