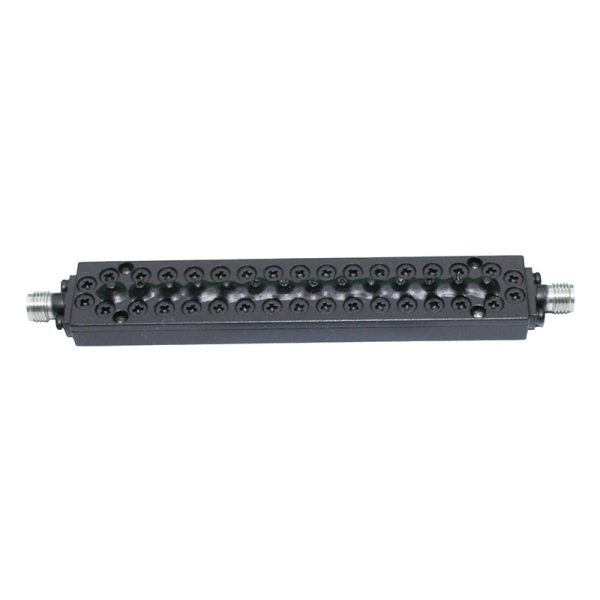

Band pass Filter From 1.0GHz (38.5 ~39.5GHz) OBP-390000-1000 With SMA-Female Connectors
Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.The product name of this Ocean band-pass filter (OBP) is OBP-390000-1000, it’s Center Frequency(F0) is 39GHz, it’s Pass Band Band width is 1.0GHz (38.5 ~39.5GHz), it’s PassBand Insertion Loss is ≤2.5dB. It’s Stop Band frequency is≥50dB @DC~38.2GHz ≥50dB @ 39.8~58.5GHz.
- Description
- Additional information
Description
SPEC
Cavity bandpass filter |
|
Band pass Filter From 1.0GHz (38.5 ~39.5GHz) OBP-390000-1000 With SMA-Female Connectors |
|
OBP-390000-1000 |
|
Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.The product name of this Ocean band-pass filter (OBP) is OBP-390000-1000, it’s Center Frequency(F0) is 39GHz, it’s Pass Band Band width is 1.0GHz (38.5 ~39.5GHz), it’s PassBand Insertion Loss is ≤2.5dB. It’s Stop Band frequency is≥50dB @DC~38.2GHz ≥50dB @ 39.8~58.5GHz. |
|
Property |
Value |
Center Frequency (F0) (MHz) |
39000 |
Min. Pass Band Frequency (MHz) |
38500 |
Max. Pass Band Frequency (MHz) |
39500 |
Pass Band Insertion Loss (dB) |
≤2.5 ≤0.8 ≥18 |
Stop Band Rejection |
≥50dB @ DC ~ 38.2GHz ≥50dB @ 39.8 ~ 58.5GHz |
Impedance (Ω) |
50 |
Power Handling (W) |
≥10 |
Connection Type |
2.92mm(K)-Female |
|
Data Sheet

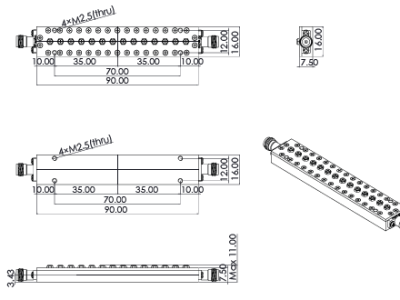

Outline

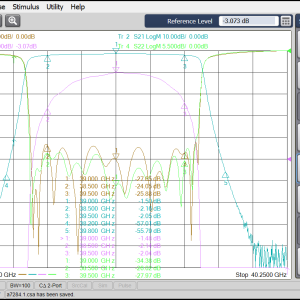

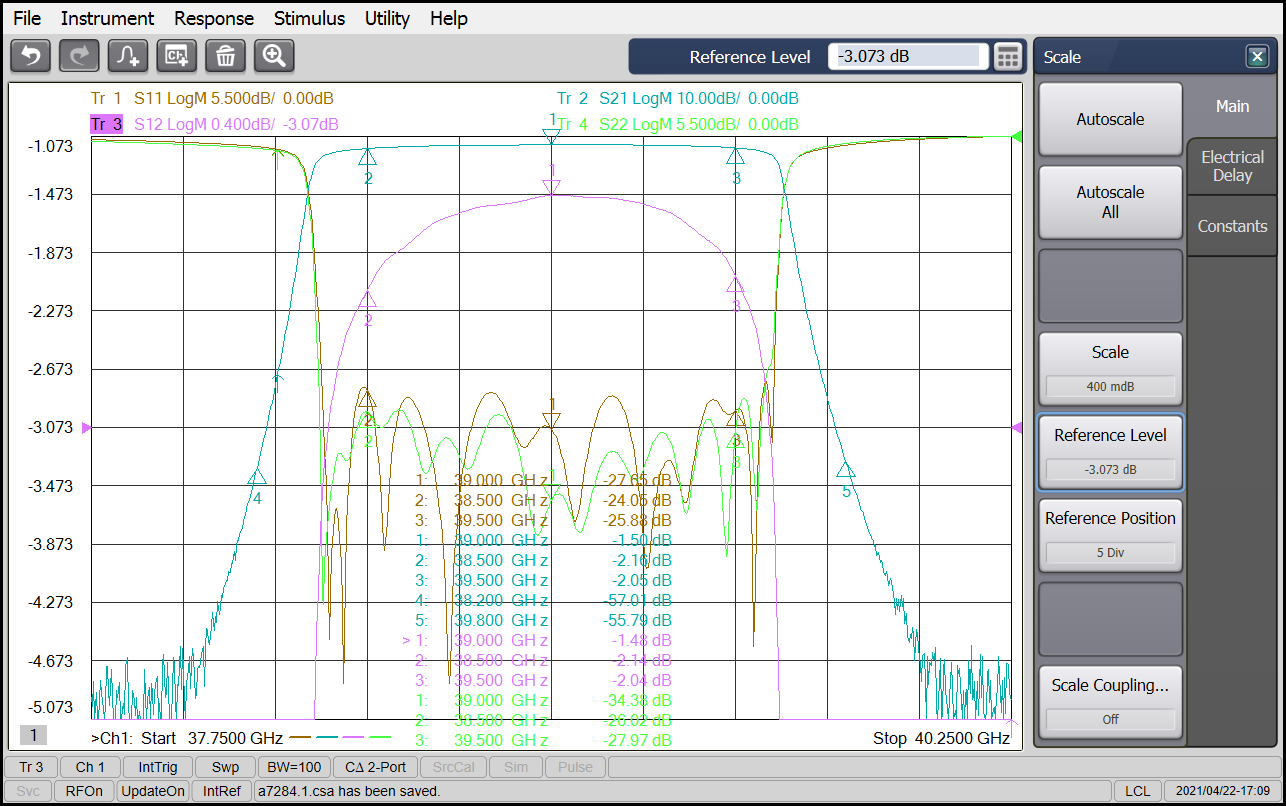

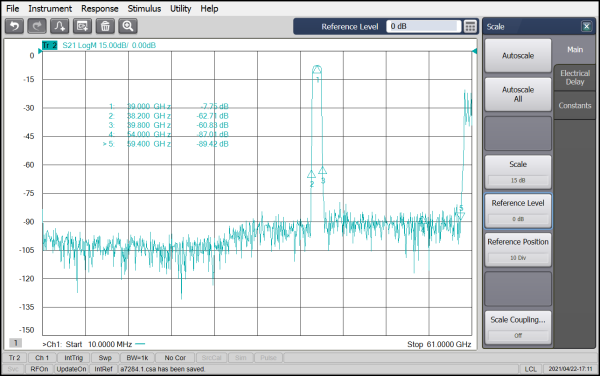

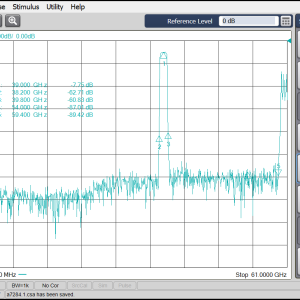

Plot
Additional information
Min. Pass Band Frequency (MHz) | |
---|---|
Max. Pass Band Frequency (MHz) | |
Pass Band Insertion Loss (dB) | |
1 | |
Impedance (Ω) | |
Power Handling (W) | |
Connection Type |
