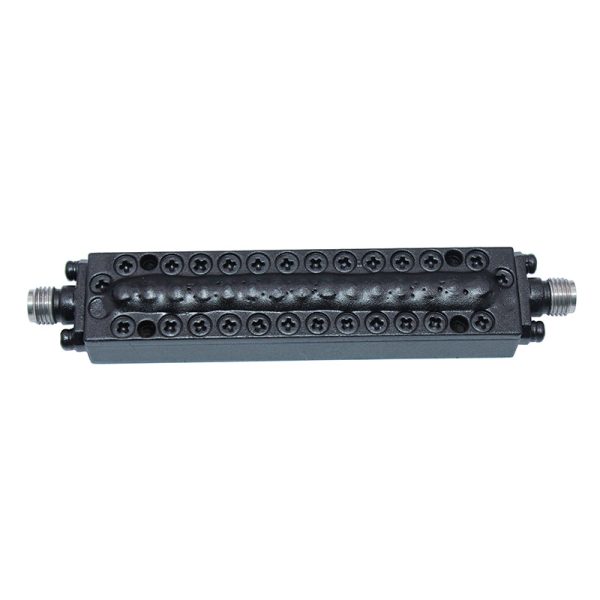

Band Pass Filter From 15~25GHz OBP-20000-10000 With 2.92mm(K)-Female Connectors

Band Pass Filter From 2.6GHz (18.5~21.1GHz) OBP-19800-2600 With SMA-Female Connectors
Band Pass Filter From 50MHz (19.975～20.025GHz) OBP-20000-50000 With SMA-Female Connectors
0 out of 5
( There are no reviews yet. )

$398

Ocean Microwave band-pass filter (Ocean band-pass filter，abbreviation：abbreviation：OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

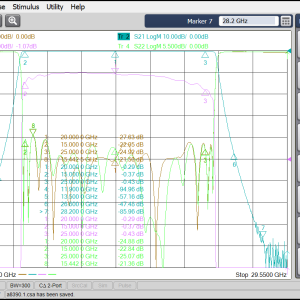

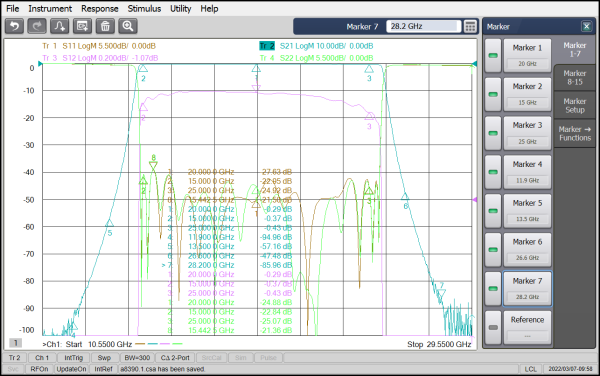

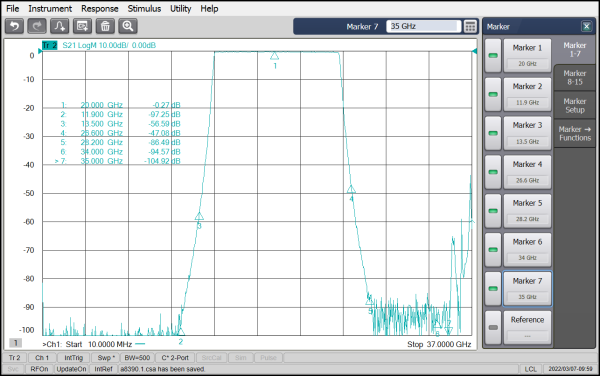

The product name of this Ocean band-pass filter (OBP) is OBP-20000-10000,its Center Frequency(F0) is 20GHz, its Pass Band Bandwidth is15~25GHz, its Pass Band Insertion Loss is ≤0.7dB, and the Stop Band frequency is ≥80dB @DC~11.9GHz≥40dB @11.9~13.5GHz ≥40dB @26.6~28.2GHz≥80dB @28.2~34GHz.

Availability: Available on backorder SKU: OBP-20000-10000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters
Add to Wishlist

Description

Ocean Microwave band-pass filter (Ocean band-pass filter，abbreviation：abbreviation：OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-20000-10000,its Center Frequency(F0) is 20GHz, its Pass Band Bandwidth is15~25GHz, its Pass Band Insertion Loss is ≤0.7dB, and the Stop Band frequency is ≥80dB @DC~11.9GHz≥40dB @11.9~13.5GHz ≥40dB @26.6~28.2GHz≥80dB @28.2~34GHz.

Band Pass Filter Datasheet (Click to download)

Reviews

There are no reviews yet.

Be the first to review “Band Pass Filter From 15~25GHz OBP-20000-10000 With 2.92mm(K)-Female Connectors”
