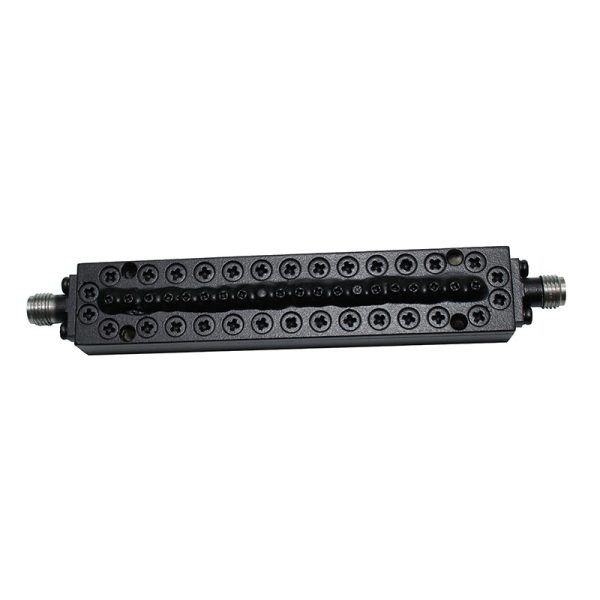

Band Pass Filter From 18~26GHz OBP-22000-8000 With 2.92mm(K)-Female Connectors

Band Pass Filter From 18~26GHz OBP-22000-8000 With 2.92mm(K)-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-22000-8000, its Center Frequency(F0) is 22GHz, its Pass Band Bandwidth is 18~26GHz , its Pass Band Insertion Loss is ≤1.0dB, Pass Band VSWR is,and the Stop Band frequency is ≥80dB @DC~16.4GHz≥55dB @16.4~17GHz ≥70dB @27~27.2GHz≥80dB @27.2~36.5GHz.

Availability: Available on backorder SKU: OBP-22000-8000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-22000-8000, its Center Frequency(F0) is 22GHz, its Pass Band Bandwidth is 18~26GHz , its Pass Band Insertion Loss is ≤1.0dB, Pass Band VSWR is,and the Stop Band frequency is ≥80dB @DC~16.4GHz≥55dB @16.4~17GHz ≥70dB @27~27.2GHz≥80dB @27.2~36.5GHz.

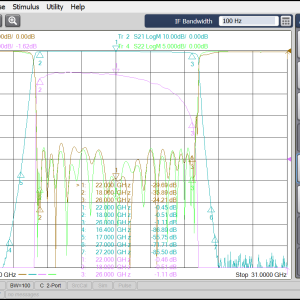

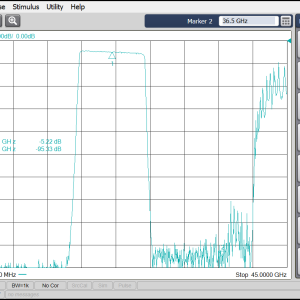

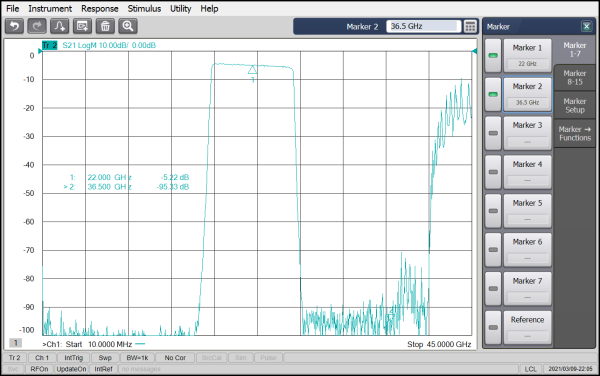

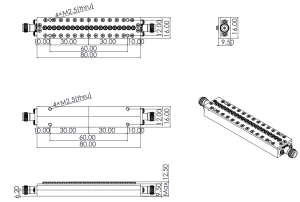

Outline

PDF

Band Pass Filter Datasheet (Click to download)

Additional information

Center Frequency (F0) (MHz)

22000

Min. Pass Band Frequency (MHz)

18000

Max. Pass Band Frequency (MHz)

26000

Pass Band Insertion Loss (dB)

≤1.0dB ≤0.6dB

Stop Band Rejection

≥80dB @ DC ~ 16.4GHz ≥55dB @ 16.4 ~ 17GHz ≥70dB @ 27 ~ 27.2GHz ≥80dB @ 27.2 ~ 36.5GHz

Impedance (Ω)

50

Power Handling (W)

5W Max

Connection Type

2.92mm(K)-Female
