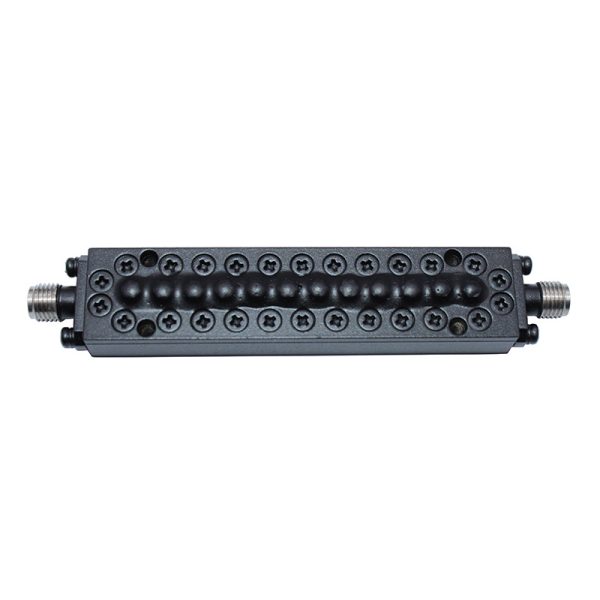

Band Pass Filter From 19.8~21.6GHz OBP-20700-1800 With SMA-Female Connectors
Ocean Microwave band-pass filter (Ocean band-pass filter，abbreviation：abbreviation：OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-20700-1800, its Center Frequency(F0) is 20.7GHz, its Pass Band Bandwidth is 19.8~21.6GHz ,its Pass Band Insertion Loss is ≤1.0dB, Pass Band VSWR is ,and the Stop Band frequency is ≥80dB @DC~18.6GHz≥60dB @18.6~19GHz ≥60dB @22.4~22.8GHz≥80dB @22.8~38GHz.
- Description
- Additional information
- Reviews (0)
Description
Ocean Microwave band-pass filter (Ocean band-pass filter，abbreviation：abbreviation：OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-20700-1800, its Center Frequency(F0) is 20.7GHz, its Pass Band Bandwidth is 19.8~21.6GHz ,its Pass Band Insertion Loss is ≤1.0dB, Pass Band VSWR is ,and the Stop Band frequency is ≥80dB @DC~18.6GHz≥60dB @18.6~19GHz ≥60dB @22.4~22.8GHz≥80dB @22.8~38GHz.

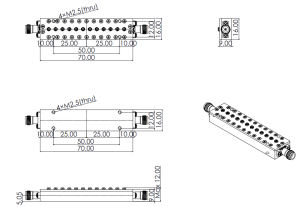

Outline
Band Pass Filter Datasheet (Click to download)
Additional information
| Center Frequency (F0) (MHz) | |
|---|---|
| Min. Pass Band Frequency (MHz) | |
| Max. Pass Band Frequency (MHz) | |
| Pass Band Insertion Loss (dB) | |
| Stop Band Rejection | ≥80dB @ DC ~ 18.6GHz ≥60dB @ 18.6 ~ 19GHz ≥60dB @ 22.4 ~ 22.8GHz ≥80dB @ 22.8 ~ 38GHz |
| Impedance (Ω) | |
| Power Handling (W) | |
| Connection Type |
