$398

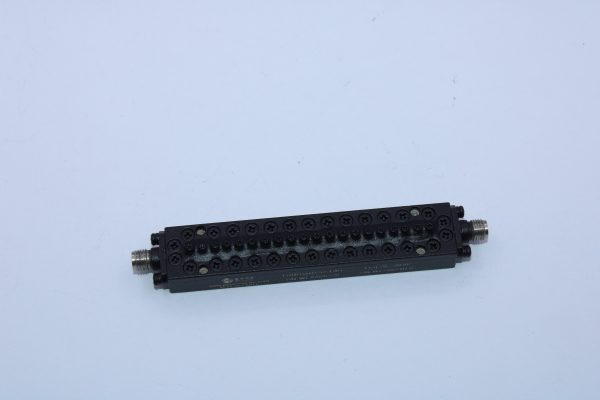

Ocean Microwave band-pass filter (Ocean band-pass filter，abbreviation：abbreviation：OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-25000- 10000, it’s Center Frequency(F0) is 25GHz, it’s Pass Band Bandwidth is 20~30GHz ,it’s Pass Band Insertion Loss is ≤1.1dB, Pass BandReturn Loss is ≥17dB,Pass Band VSWR is, and the Stop Band frequency is ≥80dB @DC~18000MHz≥65dB @18000~18500MHz≥70dB@31500~32000MHz≥80dB@32000~36500MHz.

Availability: Available on backorder SKU: OBP-25000- 10000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters
Add to Wishlist

Description

Ocean Microwave band-pass filter (Ocean band-pass filter，abbreviation：abbreviation：OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

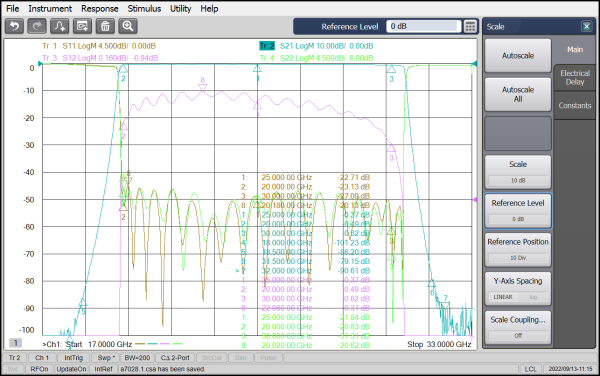

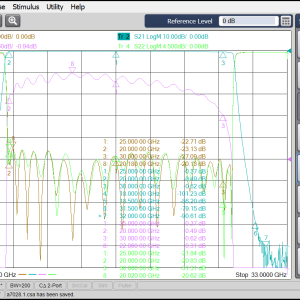

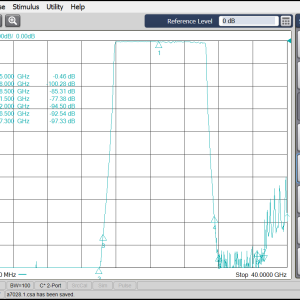

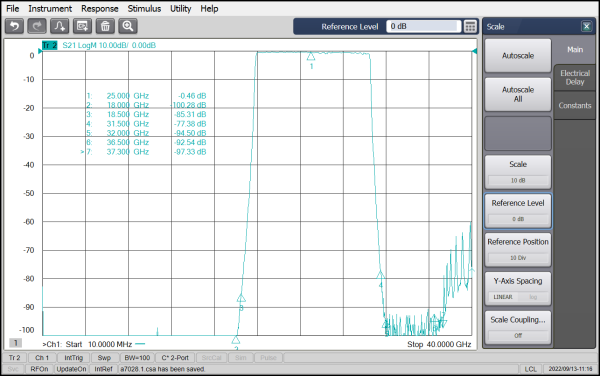

The product name of this Ocean band-pass filter (OBP) is OBP-25000- 10000, it’s Center Frequency(F0) is 25GHz, it’s Pass Band Bandwidth is 20~30GHz ,it’s Pass Band Insertion Loss is ≤1.1dB, Pass BandReturn Loss is ≥17dB,Pass Band VSWR is, and the Stop Band frequency is ≥80dB @DC~18000MHz≥65dB @18000~18500MHz ≥70dB @31500~32000MHz≥80dB

@32000~36500MHz.

Band Pass Filter Datasheet (Click to download)
