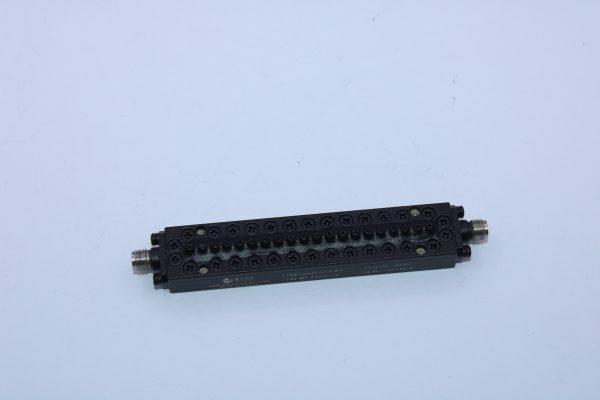

Band Pass Filter From 20~40GHz OBP-30000-20000 With 2.92mm-Female Connectors
Ocean Microwave band-pass filter (Ocean band-pass filter，abbreviation：abbreviation：OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-30000-20000,it’s Center Frequency(F0) is 30GHz, it’s Pass Band Bandwidth is 20~40GHz,it’s Pass Band Insertion Loss is ≤1.0dB, Pass Band Return Loss is ≥15dB,Pass Band VSWR is, and the Stop Band frequency is ≥80dB @DC~17000MHz≥30dB @17000~19000MHz ≥10dB @41000~43500MHz.
- Description
- Additional information
- Reviews (0)
Description
Ocean Microwave band-pass filter (Ocean band-pass filter，abbreviation：abbreviation：OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-30000-20000,it’s Center Frequency(F0) is 30GHz, it’s Pass Band Bandwidth is 20~40GHz,it’s Pass Band Insertion Loss is ≤1.0dB, Pass Band Return Loss is ≥15dB,Pass Band VSWR is, and the Stop Band frequency is ≥80dB @DC~17000MHz≥30dB @17000~19000MHz ≥10dB @41000~43500MHz.
Outline
Band Pass Filter Datasheet (Click to download)
Additional information
| Center Frequency (F0) (MHz) | |
|---|---|
| Min. Pass Band Frequency (MHz) | |
| Max. Pass Band Frequency (MHz) | |
| Pass Band Insertion Loss (dB) | |
| Stop Band Rejection | ≥80dB @ DC ~ 17000MHz ≥30dB @ 17000 ~ 19000MHz ≥10dB @ 41000 ~ 43500MHz |
| Impedance (Ω) | |
| Power Handling (W) | |
| Connection Type |
