Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.The product name of this Ocean band-pass filter (OBP) is OBP-25875-3250,its Center Frequency(F0) is 25.875GHz, its Pass Band Bandwidth is 24.25~ 27.5GHz its Pass Band Insertion Loss is≤2.2dB, and its PassBand VSWRis. Its Stop Band frequency is≥60dB @ F0±2GHz (DC ~23.875GHz , 27.875 ~ 47.5GHz)

SKU: OBP-25875-3250 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

SPEC

Cavity bandpass filter

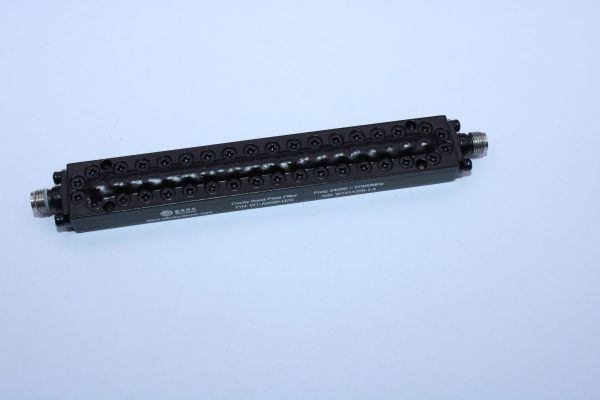

Band pass Filter From 24.25~ 27.5GHz OBP-25875-3250 With SMA-Female Connectors

OBP-25875-3250

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.The product name of this Ocean band-pass filter (OBP) is OBP-25875-3250,its Center Frequency(F0) is 25.875GHz, its Pass Band Bandwidth is 24.25~ 27.5GHz its Pass Band Insertion Loss is≤2.2dB, and its PassBand VSWRis. Its Stop Band frequency is≥60dB @ F0±2GHz (DC ~23.875GHz , 27.875 ~ 47.5GHz)

Property

Value

Center Frequency (F0) (MHz)

25875

Min. Pass Band Frequency (MHz)

24250

Max. Pass Band Frequency (MHz)

27500

Pass Band Insertion Loss (dB)

≤2.2 ≥17

Stop Band Rejection

≥60dB @ F0±2000MHz (DC ~ 23875MHz , 27875 ~ 47500MHz)

Impedance (Ω)

50

Power Handling (W)

5W Max

Connection Type

2.92mm(K)-Female

Data Sheet

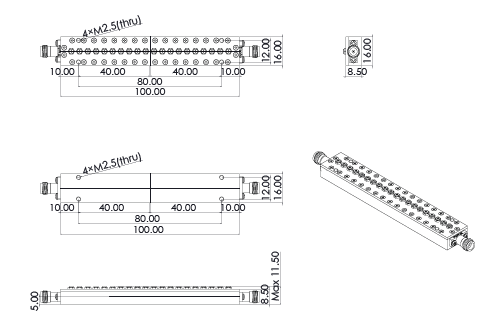

Outline

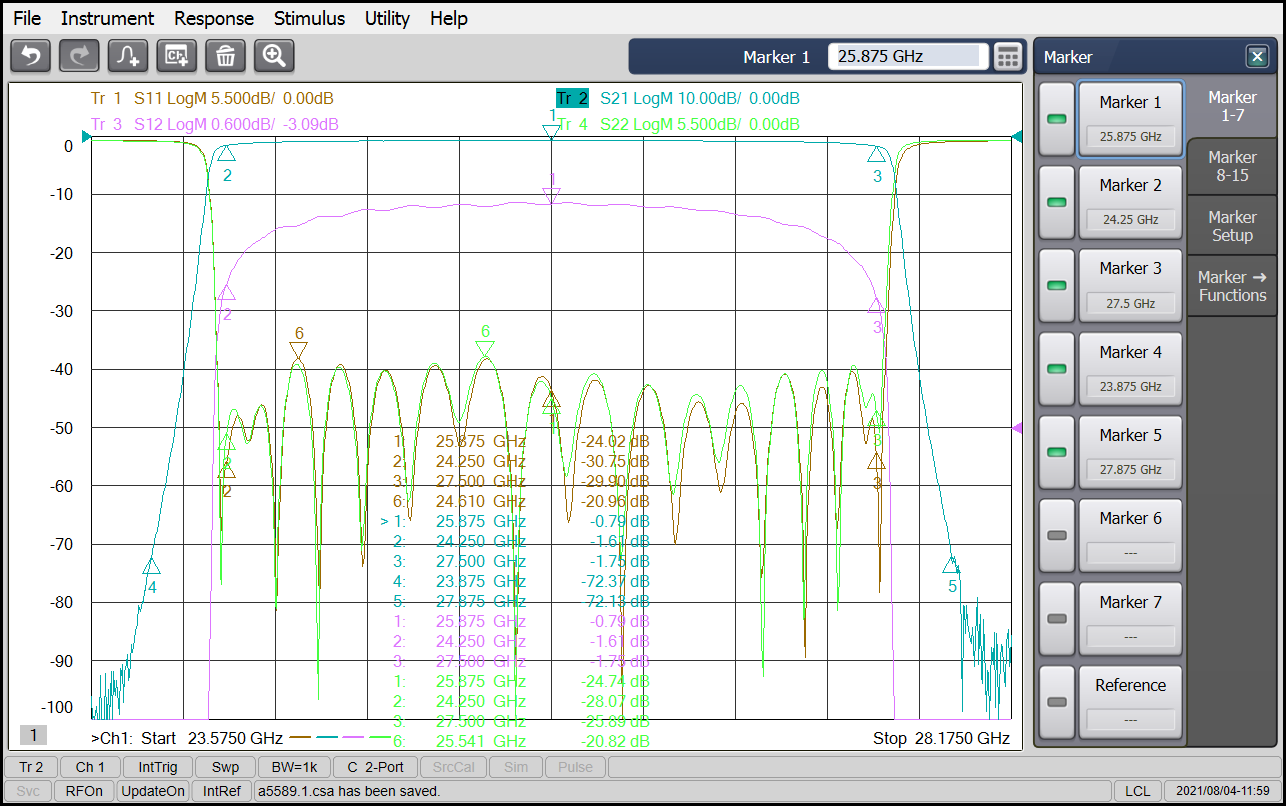

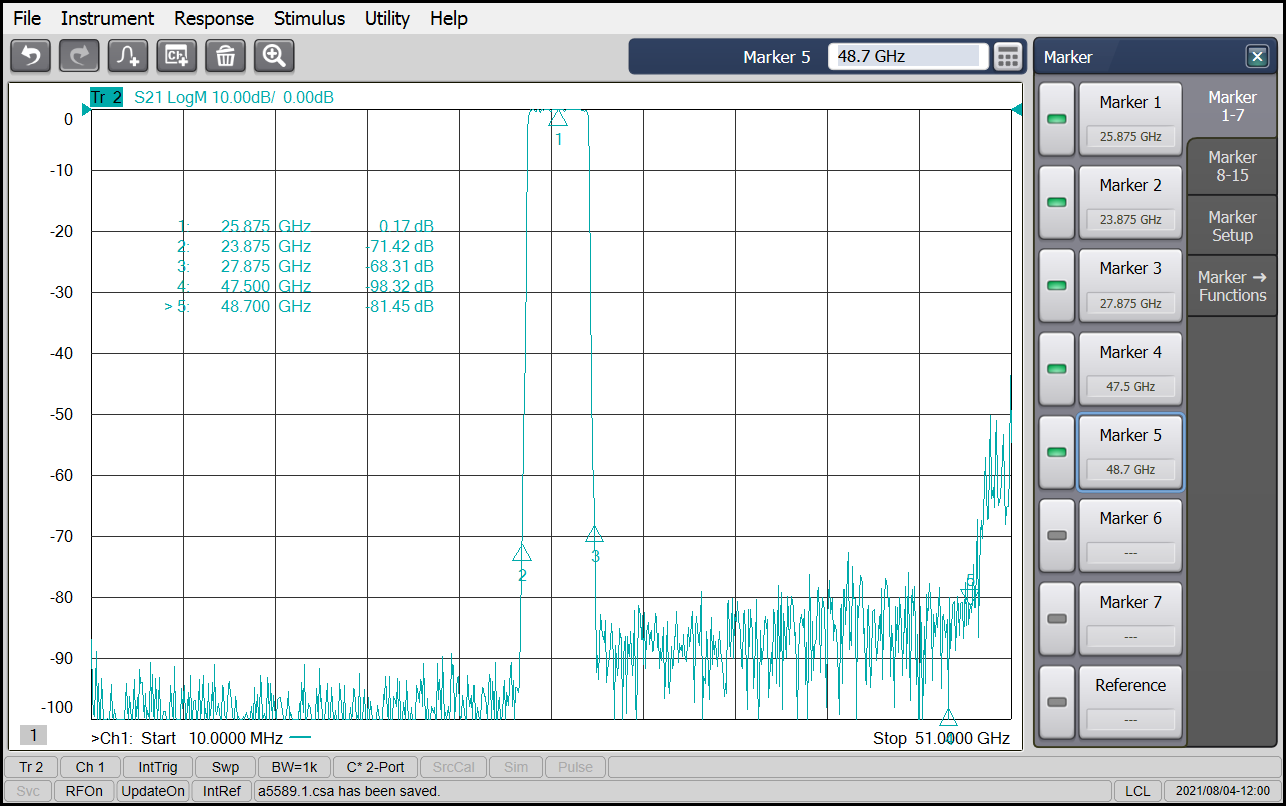

Plot

Additional information

Min. Pass Band Frequency (MHz)

24250

Max. Pass Band Frequency (MHz)

27500

Pass Band Insertion Loss (dB)

≤2.2 ≥17

1

≥60dB @ F0±2000MHz (DC ~ 23875MHz , 27875 ~ 47500MHz)

Impedance (Ω)

50

Power Handling (W)

5W Max

Connection Type

2.92mm(K)-Female
