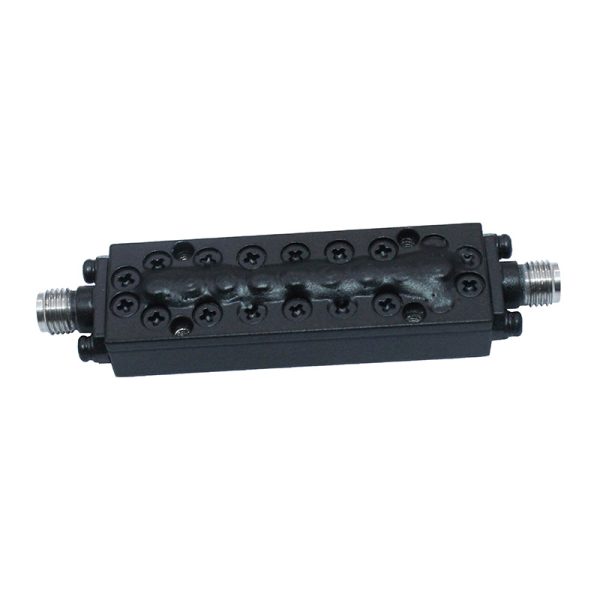

Band pass Filter From 24~26GHz OBP-250000-2000 With SMA-Female Connectors

Band pass Filter From 24~26GHz OBP-250000-2000 With SMA-Female Connectors

0 out of 5

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.The product name of this Ocean band-pass filter (OBP) is OBP-250000-2000,its Center Frequency(F0) is 25GHz, its Pass Band Bandwidth is24~26GHzits Pass Band Insertion Loss is≤1.0dB, and its PassBandVSWR is≤1.3:1. Its Stop Band frequency is≥50dB @DC~23GHzn≥40dB @27~47.5GHz

SKU: OBP-250000-2000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

SPEC

Cavity bandpass filter

Band pass Filter From 24~26GHz OBP-250000-2000 With SMA-Female Connectors

OBP-250000-2000

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.The product name of this Ocean band-pass filter (OBP) is OBP-250000-2000,its Center Frequency(F0) is 25GHz, its Pass Band Bandwidth is24~26GHzits Pass Band Insertion Loss is≤1.0dB, and its PassBandVSWR is≤1.3:1. Its Stop Band frequency is≥50dB @DC~23GHzn≥40dB @27~47.5GHz

Property

Value

Center Frequency (F0) (MHz)

25000

Min. Pass Band Frequency (MHz)

24000

Max. Pass Band Frequency (MHz)

26000

Pass Band Insertion Loss (dB)

≤1.0

Stop Band Rejection

≥50dB @DC~23GHz≥40dB @27~47.5GHz

Impedance (Ω)

50

Power Handling (W)

5

Connection Type

2.92mm(K)-Female

Data Sheet

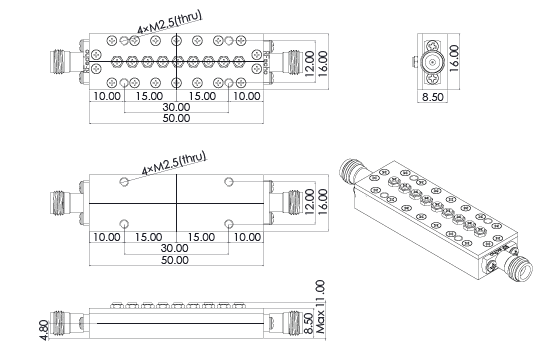

Outline

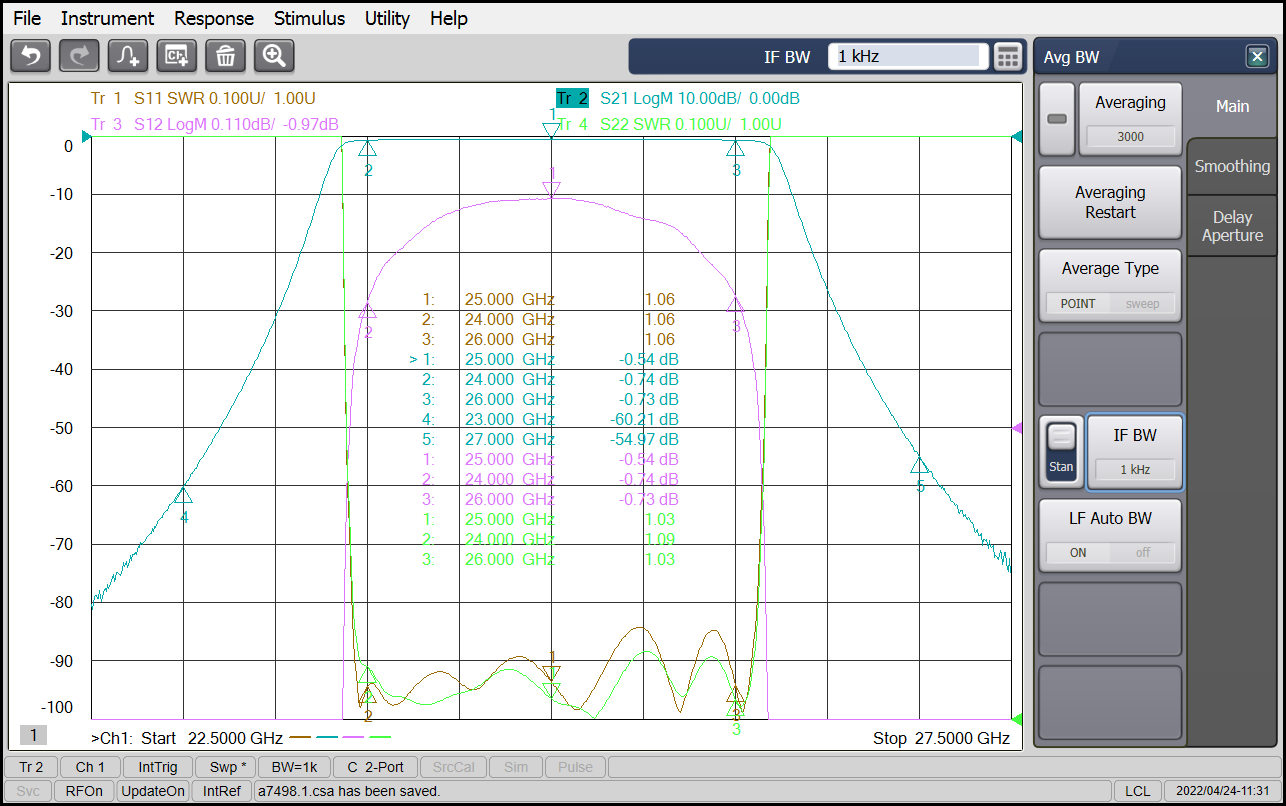

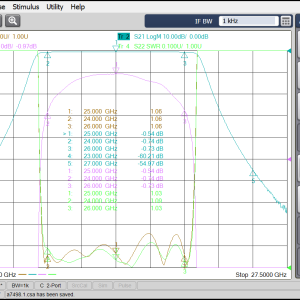

Plot

Additional information

Min. Pass Band Frequency (MHz)

24000

Max. Pass Band Frequency (MHz)

26000

Pass Band Insertion Loss (dB)

≤1.0

1

≥50dB @DC~23GHz≥40dB @27~47.5GHz

Impedance (Ω)

50

Power Handling (W)

5

Connection Type

2.92mm(K)-Female
