Band pass Filter From 26～31.5GHz OBP-287500-5500 With SMA-Female Connectors
Ocean Microwave band-pass filter (Ocean band-pass filter，abbreviation：abbreviation：OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.The product name of this Ocean band-pass filter (OBP) is OBP-287500-5500,itsCenter Frequency(F0) is 28.75GHz , its Pass Band Bandwidth is 26～31.5GHz, itsPass Band Insertion Loss is ≤2.5dB, and it’s PassBandVSWR is ≤2.0:1. Its Stop Band frequency is ≥45dB @ 24.25GHz≥45dB @ 33.25GHz≥70dB @ 23.25GHz≥70dB @34.25GHz.
- Description
- Additional information
Description
SPEC
|
Cavity bandpass filter |
|
|

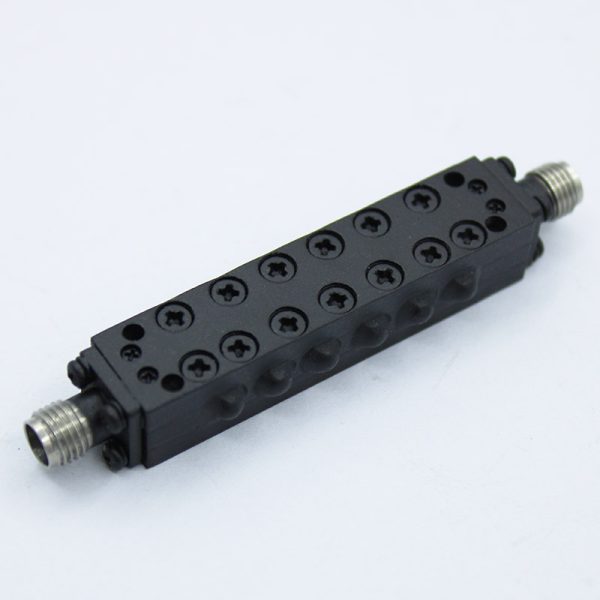

Band pass Filter From 26～31.5GHz OBP-287500-5500 With SMA-Female Connectors |
|
|
OBP-287500-5500 |
|
|
Ocean Microwave band-pass filter (Ocean band-pass filter，abbreviation：abbreviation：OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.The product name of this Ocean band-pass filter (OBP) is OBP-287500-5500,itsCenter Frequency(F0) is 28.75GHz , its Pass Band Bandwidth is 26～31.5GHz, itsPass Band Insertion Loss is ≤2.5dB, and it’s PassBandVSWR is ≤2.0:1. Its Stop Band frequency is ≥45dB @ 24.25GHz≥45dB @ 33.25GHz≥70dB @ 23.25GHz≥70dB @34.25GHz. |
|
|
Property |
Value |
|
Center Frequency (F0) (MHz) |
28750 |
|
Min. Pass Band Frequency (MHz) |
26000 |
|
Max. Pass Band Frequency (MHz) |
31500 |
|
Pass Band Insertion Loss (dB) |
≤2.5 |
|
Stop Band Rejection |
≥45dB @ 24.25GHz≥45dB @ 33.25GHz≥70dB @ 23.25GHz≥70dB @ 34.25GHz |
|
Impedance (Ω) |
50 |
|
Power Handling (W) |
≤10 |
|
Connection Type |
2.92mm-Female |
|
|
|
Data Sheet

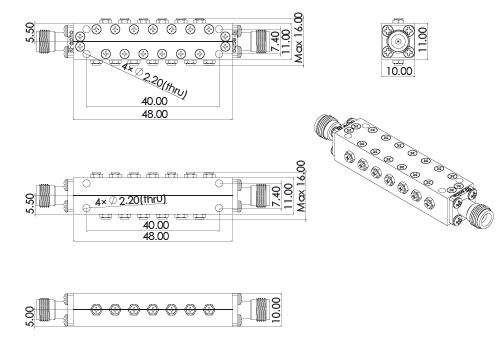

Outline

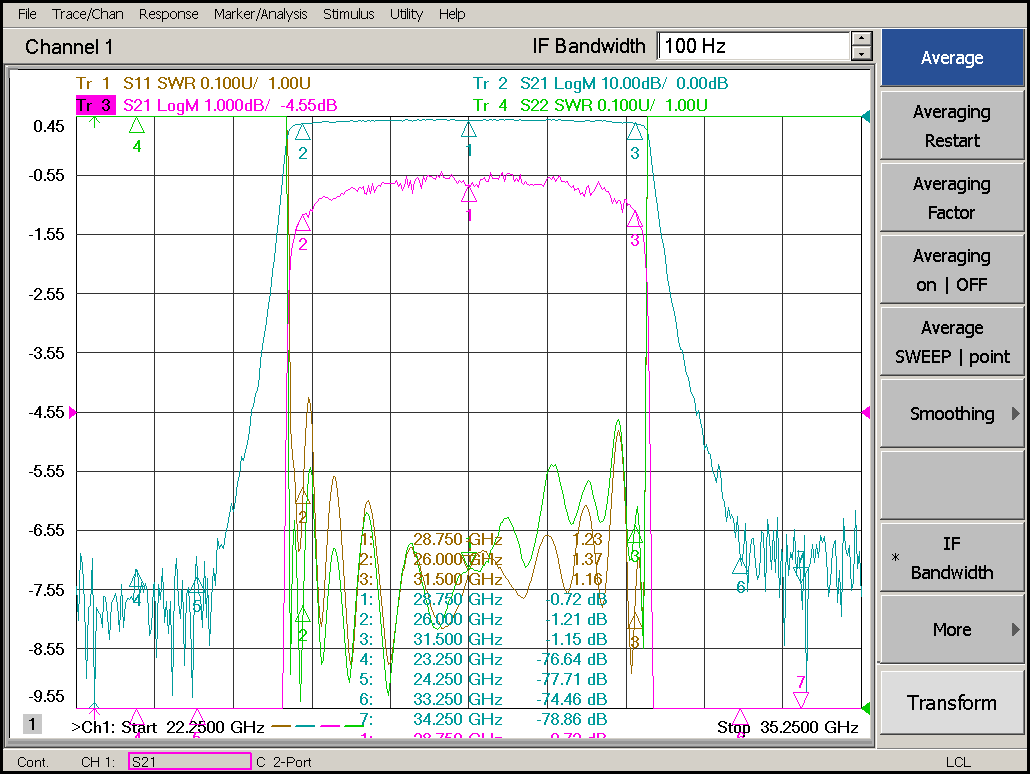

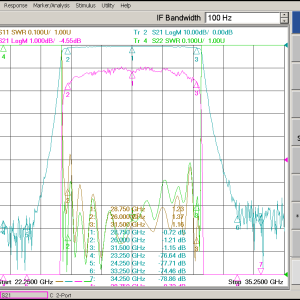

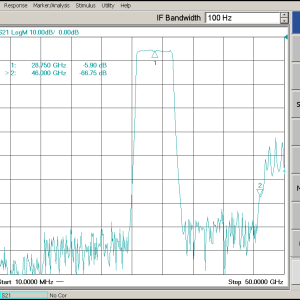

Plot
Additional information
| Min. Pass Band Frequency (MHz) | |
|---|---|
| Max. Pass Band Frequency (MHz) | |
| Pass Band Insertion Loss (dB) | |
| 1 | ≥45dB @ 24.25GHz≥45dB @ 33.25GHz≥70dB @ 23.25GHz≥70dB @ 34.25GHz |
| Impedance (Ω) | |
| Power Handling (W) | |
| Connection Type |
