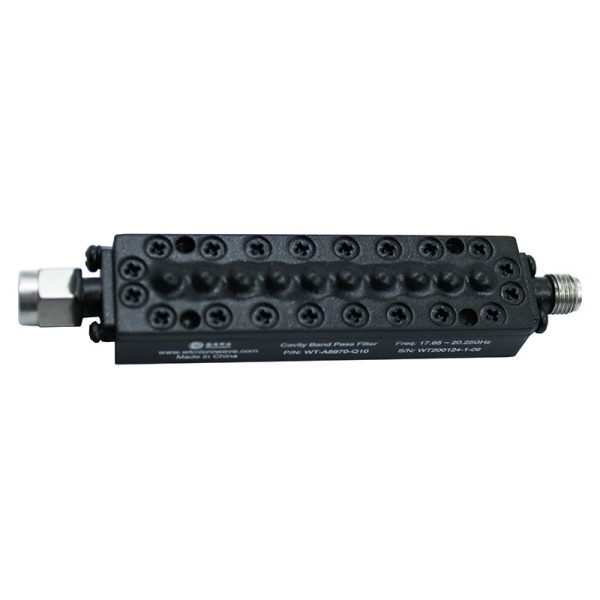

Band Pass Filter From 2600MHz (17.65~20.25GHz) OBP-18950-2600 With SMA-Female Connectors

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-18950-2600,its Center Frequency (F0) is 18.95GHz, its Pass Band Bandwidth is 2600MHz (17.65~20.25GHz) ,its Pass Band Insertion Loss is ≤0.75dB@18.95GHz≤0.9dB @17.65~20.25GHz, Pass Band VSWR is ≤1.22:1(Input/Output), and the Stop Band frequency is ≥80dB @0.1~14.7GHz≥70dB @14.7~16.2GHz.

Availability: Available on backorder SKU: OBP-18950-2600 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.

The product name of this Ocean band-pass filter (OBP) is OBP-18950-2600,its Center Frequency (F0) is 18.95GHz, its Pass Band Bandwidth is 2600MHz (17.65~20.25GHz) ,its Pass Band Insertion Loss is ≤0.75dB@18.95GHz≤0.9dB @17.65~20.25GHz, Pass Band VSWR is ≤1.22:1(Input/Output), and the Stop Band frequency is ≥80dB @0.1~14.7GHz≥70dB @14.7~16.2GHz.

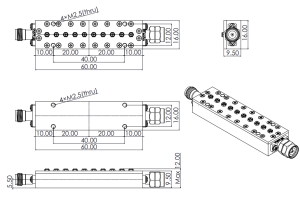

Outline



PDF

Bandpass Filter Datasheet (Click to download)

Additional information

Center Frequency (F0) (MHz)

18950

Min. Pass Band Frequency (MHz)

17650

Max. Pass Band Frequency (MHz)

20250

Pass Band Insertion Loss (dB)

≤0.7dB ≤0.9dB

Stop Band Rejection

≥80dB @ 0.1 ~ 14.7GHz ≥70dB @ 14.7 ~ 16.2GHz

Impedance (Ω)

50

Power Handling (W)

≤5

Connection Type

SMA-Female
