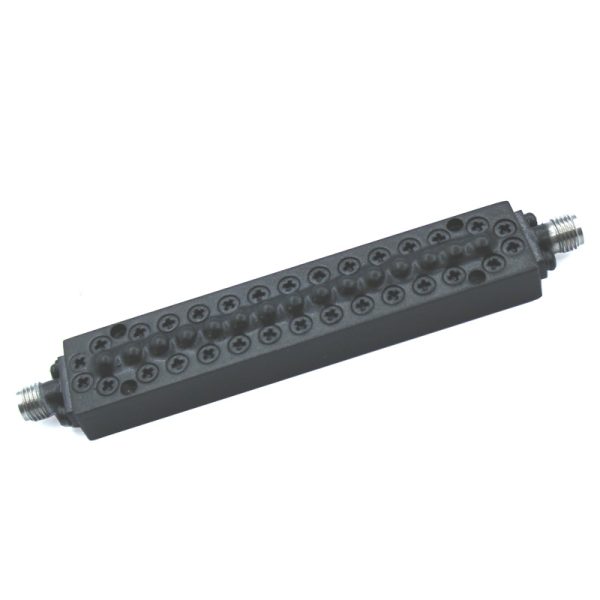

Band Pass Filter From 30.6~33.6GHz OBP-32100-3000 With 2.92mm(K)-Female Connectors
Ocean Microwave band-pass filter (Ocean band-pass filter, abbreviation：abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-32100-3000, it’s Center Frequency (FO) is 32.1GHz, it’s Pass Band Bandwidth is 30.6~33.6GHz, it’s Pass Band Insertion Loss is ≤2.0dB, Pass Band Return Loss is, Pass Band VSWR is <1.5:1, and the Stop Band frequency is >60dB@DC~29.4GHz ≥60dB@35~46GHz.
- Description
- Additional information
- Reviews (0)
Description
Ocean Microwave band-pass filter (Ocean band-pass filter, abbreviation：abbreviation:OBP) is a filter that allows waves of specific frequency band to pass through while rejecting other frequency bands.
The product name of this Ocean band-pass filter (OBP) is OBP-32100-3000, it’s Center Frequency (FO) is 32.1GHz, it’s Pass Band Bandwidth is 30.6~33.6GHz, it’s Pass Band Insertion Loss is ≤2.0dB, Pass Band Return Loss is, Pass Band VSWR is <1.5:1, and the Stop Band frequency is >60dB@DC~29.4GHz ≥60dB@35~46GHz.

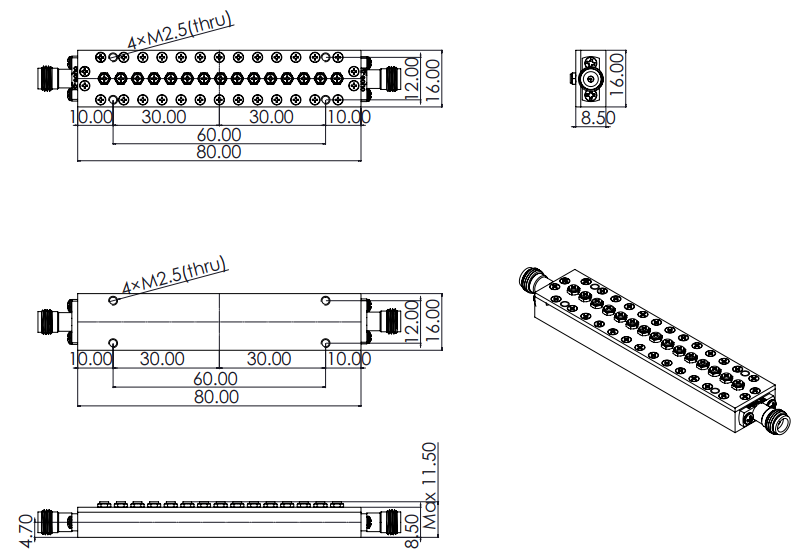

Outline
Band Pass Filter Datasheet (Click to download)
Additional information
| Center Frequency (F0) (MHz) | |
|---|---|
| Min. Pass Band Frequency (MHz) | |
| Max. Pass Band Frequency (MHz) | |
| Pass Band Insertion Loss (dB) | |
| Stop Band Rejection | |
| Impedance (Ω) | |
| Power Handling (W) | |
| Connection Type |
