Band pass Filter From 37.5 ~ 44.5GHz OBP-410000-7000 With SMA-Female Connectors
Ocean Microwave band-pass filter (Ocean band-pass filter，，abbreviation：abbreviation：OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.The product name of this Ocean band-pass filter (OBP) is OBP-410000-7000, it’s Center Frequency(F0) is 41GHz, it’s Pass Band Bandwidth is 37.5 ~ 44.5GHz, it’s PassBand Insertion Loss is ≤1.1dB. Its Stop Band frequency is ≥80dB @DC~35.3GHz ≥80dB @ 47.5~58.5GHz .
- Description
- Additional information
Description
SPEC
|
Cavity bandpass filter |
|
|

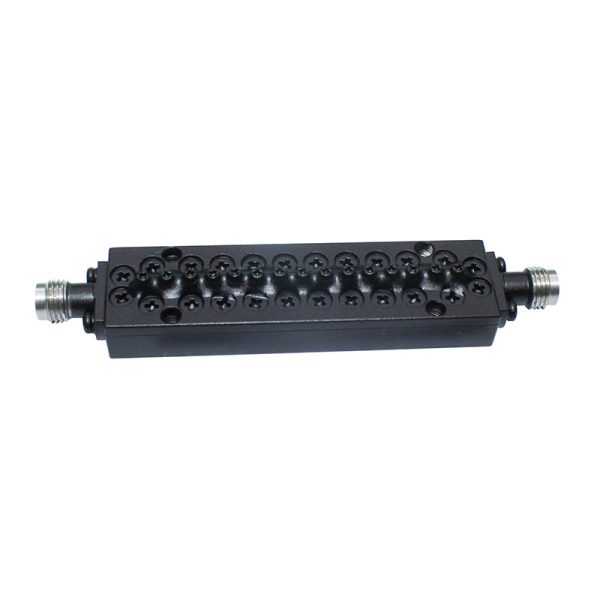

Band pass Filter From 37.5 ~ 44.5GHz OBP-410000-7000 With SMA-Female Connectors |
|
|
OBP-410000-7000 |
|
|
Ocean Microwave band-pass filter (Ocean band-pass filter，，abbreviation：abbreviation：OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.The product name of this Ocean band-pass filter (OBP) is OBP-410000-7000, it’s Center Frequency(F0) is 41GHz, it’s Pass Band Bandwidth is 37.5 ~ 44.5GHz, it’s PassBand Insertion Loss is ≤1.1dB. Its Stop Band frequency is ≥80dB @DC~35.3GHz ≥80dB @ 47.5~58.5GHz . |
|
|
Property |
Value |
|
Center Frequency (F0) (MHz) |
41000 |
|
Min. Pass Band Frequency (MHz) |
37500 |
|
Max. Pass Band Frequency (MHz) |
44500 |
|
Pass Band Insertion Loss (dB) |
≤1.1 ≤0.37 ≥18 |
|
Stop Band Rejection |
≥80dB @ DC ~ 35.3GHz ≥80dB @ 47.5 ~ 58.5GHz |
|
Impedance (Ω) |
50 |
|
Power Handling (W) |
≤5 |
|
Connection Type |
2.4mm-Female |
|
|
|
Data Sheet

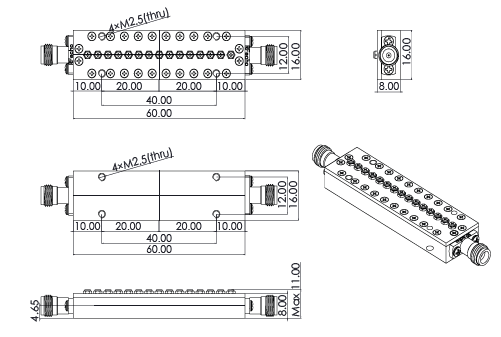

Outline

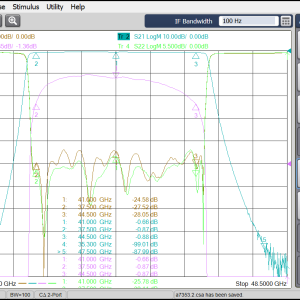

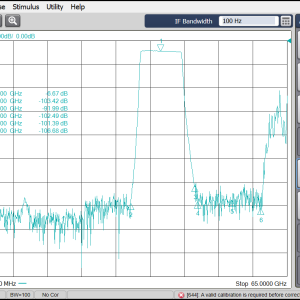

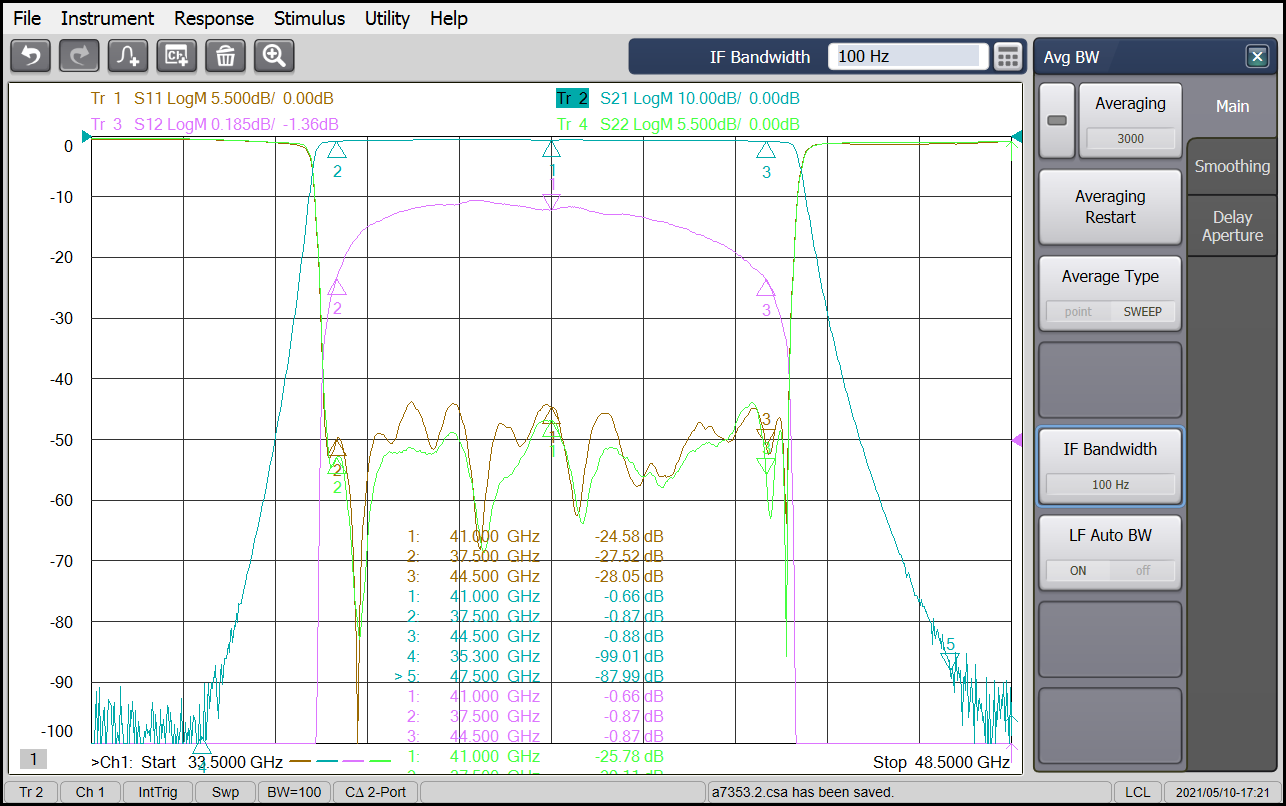

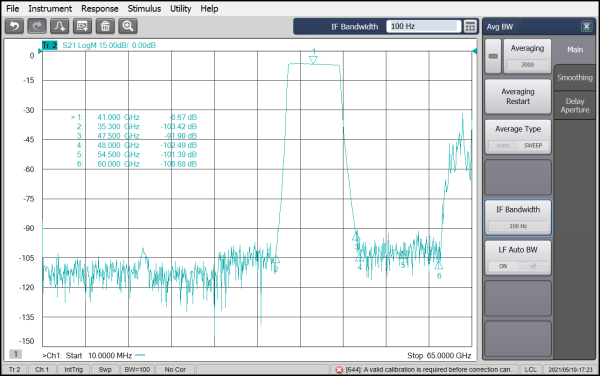

Plot
Additional information
| Min. Pass Band Frequency (MHz) | |
|---|---|
| Max. Pass Band Frequency (MHz) | |
| Pass Band Insertion Loss (dB) | |
| 1 | |
| Impedance (Ω) | |
| Power Handling (W) | |
| Connection Type |
