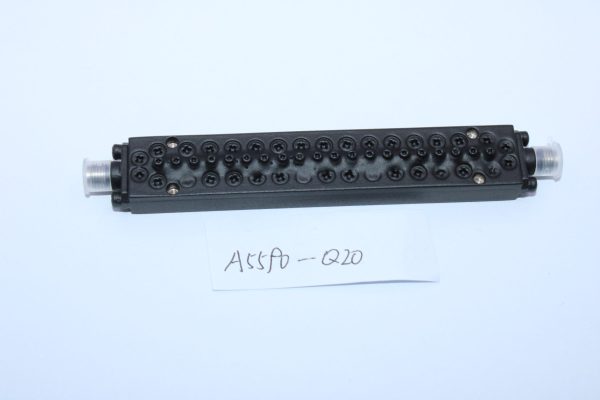

Band pass Filter From 37.7 ~43.5GHz OBP-40600-5800 With SMA-Female Connectors

Band pass Filter From 37.7 ~43.5GHz OBP-40600-5800 With SMA-Female Connectors

0 out of 5

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencyband to pass through while rejecting other frequency bands.The product name of this Ocean band-pass filter (OBP) is OBP-40600-5800,its Center Frequency(F0) is 40.6GHz, its Pass Band Bandwidth is37.7 ~ 43.5GHz its Pass Band Insertion Loss is≤2.6dB≥17dB, and itsPassBand VSWRis. Its Stop Bandfrequency is≥80dB @ F0±4000MHz (DC ~36600MHz , 44600 ~ 59000MHz)

SKU: OBP-40600-5800 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

SPEC

Cavity bandpass filter

Band pass Filter From 37.7 ~43.5GHz OBP-40600-5800 With SMA-Female Connectors

OBP-40600-5800

Ocean Microwave band-pass filter (Ocean band-pass filter,,abbreviation:abbreviation:OBP) is a filter that allows waves of specific frequencyband to pass through while rejecting other frequency bands.The product name of this Ocean band-pass filter (OBP) is OBP-40600-5800,its Center Frequency(F0) is 40.6GHz, its Pass Band Bandwidth is37.7 ~ 43.5GHz its Pass Band Insertion Loss is≤2.6dB≥17dB, and itsPassBand VSWRis. Its Stop Bandfrequency is≥80dB @ F0±4000MHz (DC ~36600MHz , 44600 ~ 59000MHz)

Property

Value

Center Frequency (F0) (MHz)

40600

Min. Pass Band Frequency (MHz)

37700

Max. Pass Band Frequency (MHz)

43500

Pass Band Insertion Loss (dB)

≤2.6 ≥17

Stop Band Rejection

≥80dB @ F0±4000MHz (DC ~ 36600MHz , 44600 ~ 59000MHz)

Impedance (Ω)

50

Power Handling (W)

5W Max

Connection Type

2.92mm(K)-Female

Data Sheet

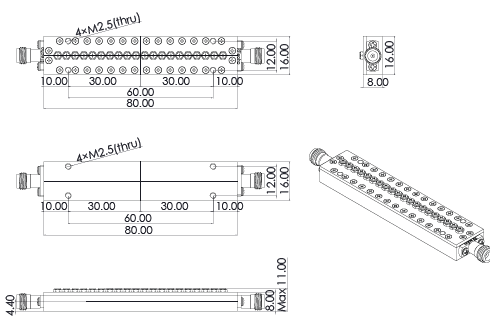

Outline

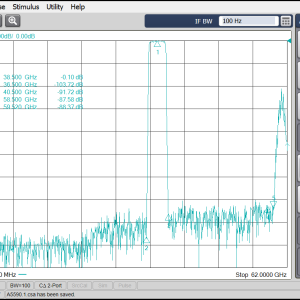

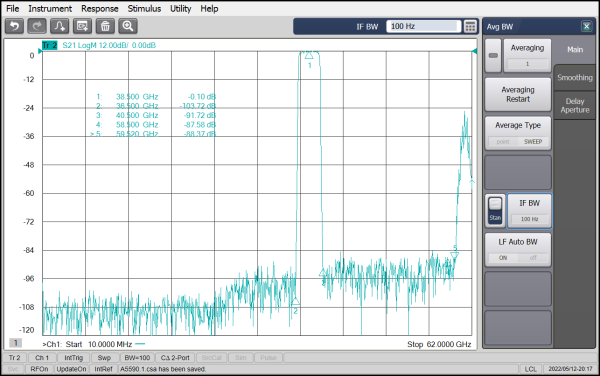

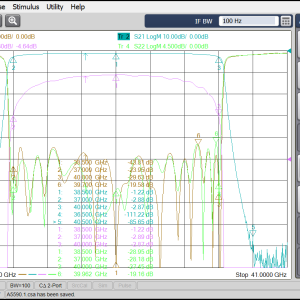

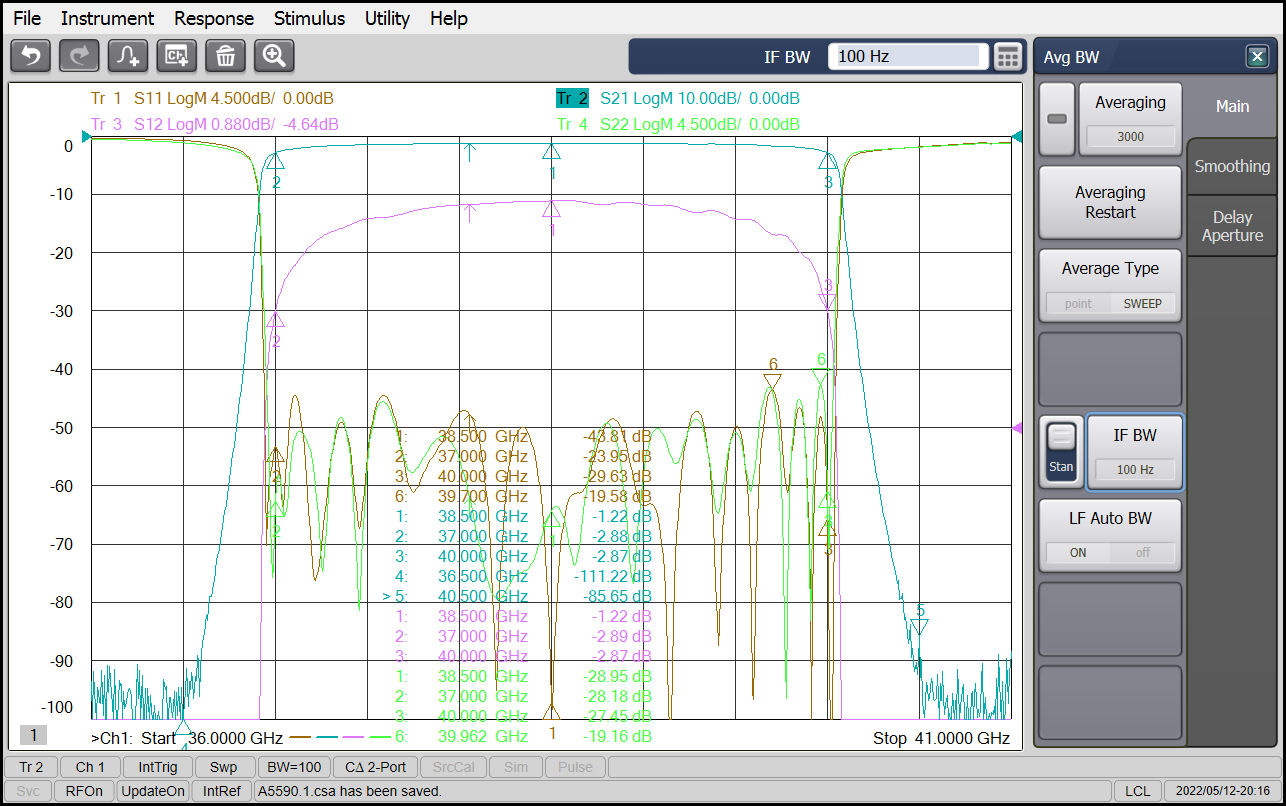

Plot

Additional information

Min. Pass Band Frequency (MHz)

37700

Max. Pass Band Frequency (MHz)

43500

Pass Band Insertion Loss (dB)

≤2.6 ≥17

1

≥80dB @ F0±4000MHz (DC ~ 36600MHz , 44600 ~ 59000MHz)

Impedance (Ω)

50

Power Handling (W)

5W Max

Connection Type

2.92mm(K)-Female
