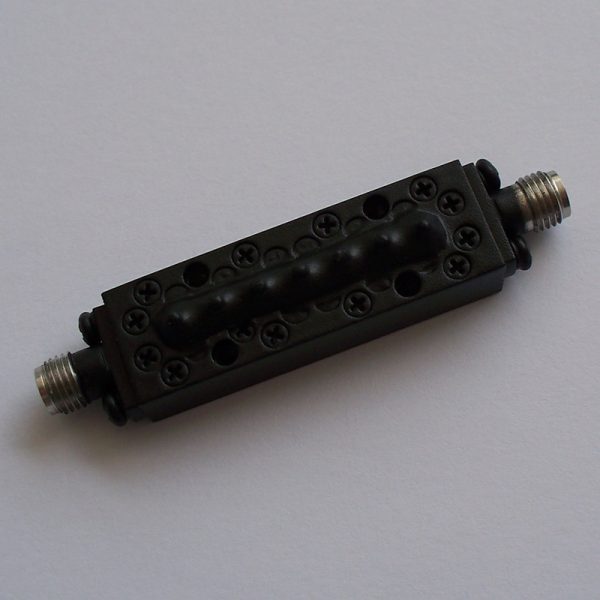

Band pass Filter From 38.6～40GHz OBP-393000-1400 With SMA-Female Connectors
Ocean Microwave band-pass filter (Ocean band-pass filter，，abbreviation：abbreviation：OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.The product name of this Ocean band-pass filter (OBP) is OBP-393000-1400, it’s Center Frequency(F0) is39.3GHz, it’s Pass Band Band width is 38.6～40GHz, it’s PassBand Insertion Loss is ≤1.8dB and it’s Pass Band VSWR is ≤1.5:1. It’s Stop Band frequency is≥40dB @ F0±2.0GHz (37.3GHz、41.3GHz).
- Description
- Additional information
Description
SPEC
|
Cavity bandpass filter |
|
|
Band pass Filter From 38.6～40GHz OBP-393000-1400 With SMA-Female Connectors |
|
|
OBP-393000-1400 |
|
|
Ocean Microwave band-pass filter (Ocean band-pass filter，，abbreviation：abbreviation：OBP) is a filter that allows waves of specific frequency bandto pass through while rejecting other frequency bands.The product name of this Ocean band-pass filter (OBP) is OBP-393000-1400, it’s Center Frequency(F0) is39.3GHz, it’s Pass Band Band width is 38.6～40GHz, it’s PassBand Insertion Loss is ≤1.8dB and it’s Pass Band VSWR is ≤1.5:1. It’s Stop Band frequency is≥40dB @ F0±2.0GHz (37.3GHz、41.3GHz). |
|
|
Property |
Value |
|
Center Frequency (F0) (MHz) |
39300 |
|
Min. Pass Band Frequency (MHz) |
38600 |
|
Max. Pass Band Frequency (MHz) |
40000 |
|
Pass Band Insertion Loss (dB) |
≤1.8 |
|
Stop Band Rejection |
≥40dB @ F0±2.0GHz(37.3GHz、41.3GHz) |
|
Impedance (Ω) |
50 |
|
Power Handling (W) |
≤5 |
|
Connection Type |
2.92mm-Female |
|
|
|
Data Sheet

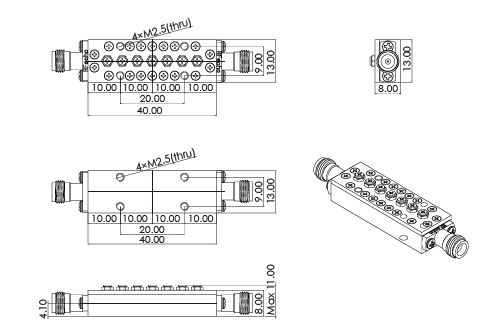

Outline

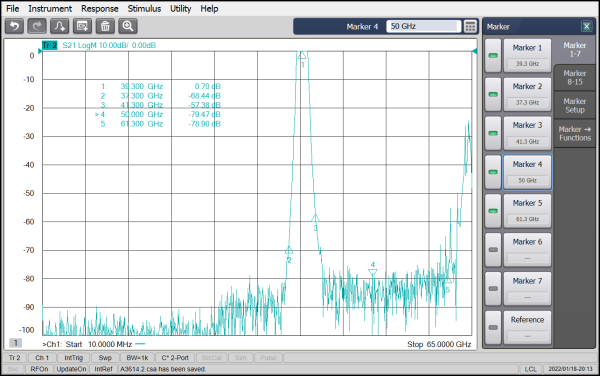

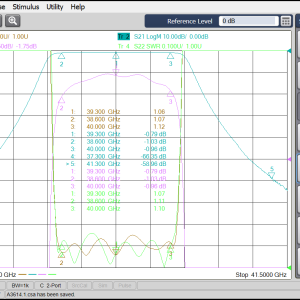

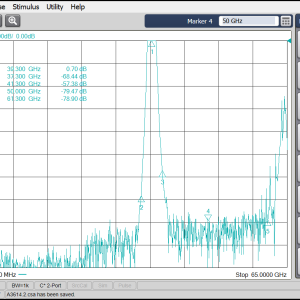

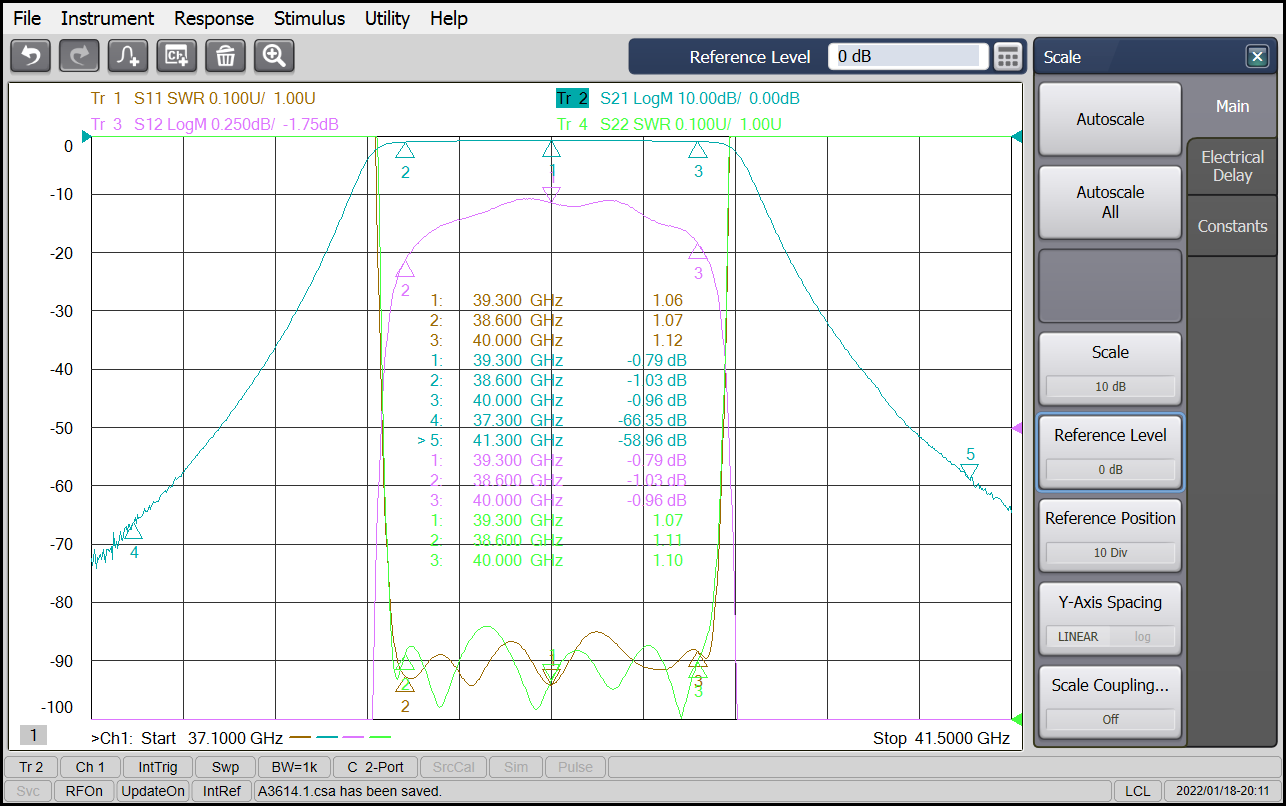

Plot
Additional information
| Min. Pass Band Frequency (MHz) | |
|---|---|
| Max. Pass Band Frequency (MHz) | |
| Pass Band Insertion Loss (dB) | |
| 1 | |
| Impedance (Ω) | |
| Power Handling (W) | |
| Connection Type |
