Band pass Filter From 600GHz(31800～32400MHz) OBP-32100-600 With SMA-Female Connectors
Ocean Microwave band-pass filter (Ocean band-pass filter，abbreviation：abbreviation：OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.The product name of this Ocean band-pass filter (OBP) is OBP-32100-600 ,its Center Frequency(F0) is 32.1GHz, its Pass Band Bandwidth is 600GHz(31800～32400MHz) its Pass Band Insertion Loss is≤2.0dB@32.1GHz ≤2.8dB@31.8GHz～32.4GHz, and itsPassBandVSWRis. Its Stop Bandfrequency is≥25dB @ 0～31600MHz ≥25dB @ 32600～45000MHz
- Description
- Additional information
Description
SPEC
|
Cavity bandpass filter |
|
|
Band pass Filter From 600GHz(31800～32400MHz) OBP-32100-600 With SMA-Female Connectors |
|
|
OBP-32100-600 |
|
|
Ocean Microwave band-pass filter (Ocean band-pass filter，abbreviation：abbreviation：OBP) is a filter that allows waves of specific frequencybandto pass through while rejecting other frequency bands.The product name of this Ocean band-pass filter (OBP) is OBP-32100-600 ,its Center Frequency(F0) is 32.1GHz, its Pass Band Bandwidth is 600GHz(31800～32400MHz) its Pass Band Insertion Loss is≤2.0dB@32.1GHz ≤2.8dB@31.8GHz～32.4GHz, and itsPassBandVSWRis. Its Stop Bandfrequency is≥25dB @ 0～31600MHz ≥25dB @ 32600～45000MHz |
|
|
Property |
Value |
|
Center Frequency (F0) (MHz) |
32100 |
|
Min. Pass Band Frequency (MHz) |
31800 |
|
Max. Pass Band Frequency (MHz) |
32400 |
|
Pass Band Insertion Loss (dB) |
≤2.0dB @ 32100MHz≤2.8dB @ 31800～32400MHz |
|
Stop Band Rejection |
≥25dB @ 0～31600MHz≥25dB @ 32600～45000MHz |
|
Impedance (Ω) |
50 |
|
Power Handling (W) |
5W Max |
|
Connection Type |
2.92mm(K)-Female |
|
|
|
Data Sheet

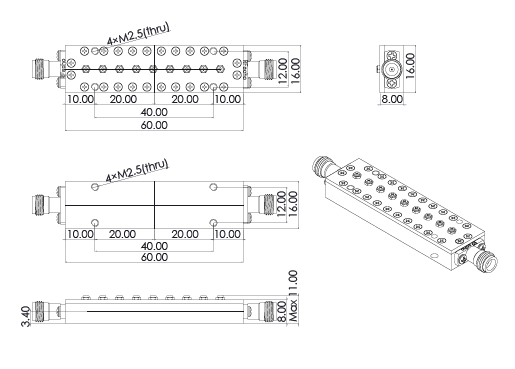

Outline
Plot
Additional information
| Min. Pass Band Frequency (MHz) | |
|---|---|
| Max. Pass Band Frequency (MHz) | |
| Pass Band Insertion Loss (dB) | |
| 1 | |
| Impedance (Ω) | |
| Power Handling (W) | |
| Connection Type |
