Bandpass Filter From 1.7GHz To 1.8GHz With SMA-Female Connectors

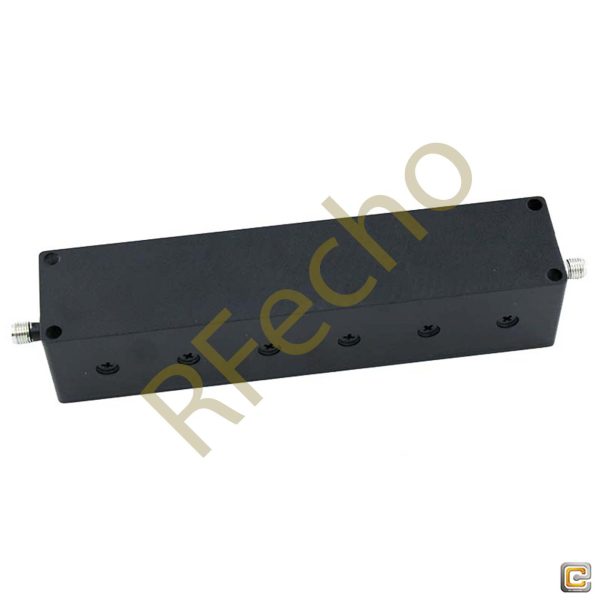

Cavity bandpass filter part number OBP-1750-100 is only one product of a wide selection of coaxial RF filter components supplied by RFecho. This RF cavity band pass filter design is built from 1.7GHz to 1.8GHz with SMA Female connectors. The SMA cavity bandpass filter design is rated for a VSWR of ≤1.3:1 and a maximum power of 5 Watts.
- Description
- Additional information
Description
SPEC
|
Cavity bandpass filter |
|
|
Bandpass Filter From 1.7GHz To 1.8GHz With SMA-Female Connectors |
|
|
OBP-1750-100 |
|
|
Cavity bandpass filter part number OBP-1750-100 is only one product of a wide selection of coaxial RF filter components supplied by RFecho. This RF cavity band pass filter design is built from 1.7GHz to 1.8GHz with SMA Female connectors. The SMA cavity bandpass filter design is rated for a VSWR of ≤1.3:1 and a maximum power of 5 Watts. |
|
|
Property |
Value |
|
Center Frequency (F0) (MHz) |
1750 |
|
Min. Pass Band Frequency (MHz) |
1700 |
|
Max. Pass Band Frequency (MHz) |
1800 |
|
Pass Band Insertion Loss (dB) |
≤1.0 |
|
Stop Band Rejection |
≥60dB @ 2140MHz |
|
Impedance (Ω) |
50 |
|
Power Handling (W) |
?30 |
|
Connection Type |
SMA-Female |
|
|
|
Data Sheet

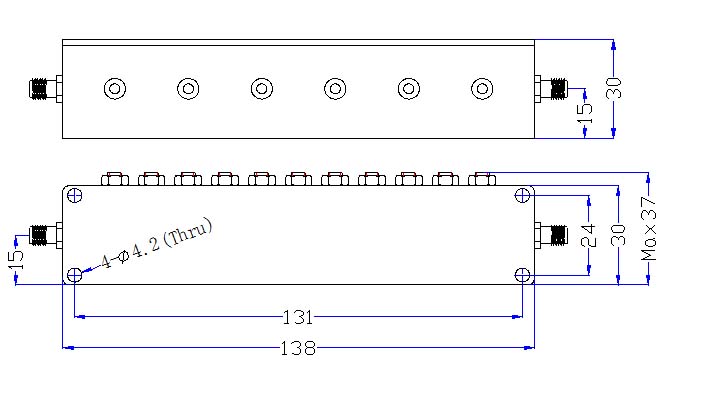

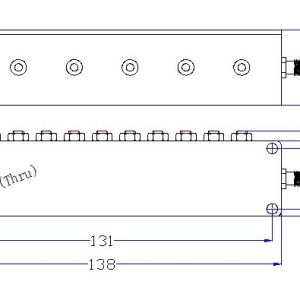

Outline

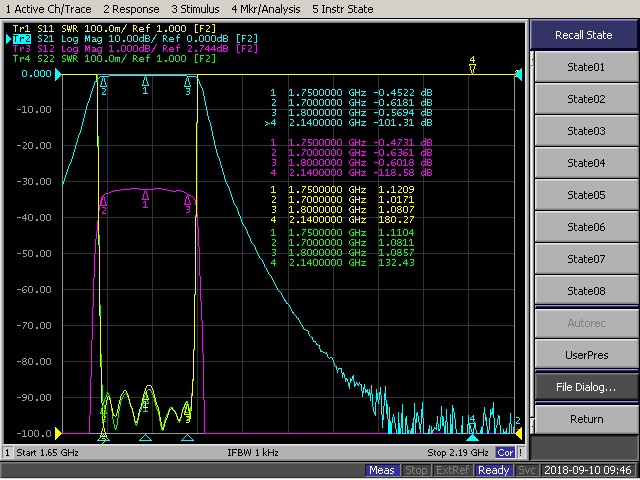

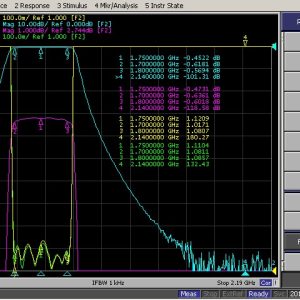

Plot
