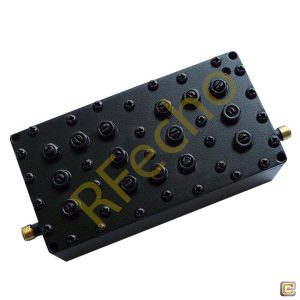

Bandpass Filter From 1805MHz To 1880MHz With SMA-Female Connectors
Cavity bandpass filter part number OBP-1842-75 is only one product of a wide selection of coaxial RF filter components supplied by RFecho. This RF cavity band pass filter design is built from 1805MHz to 1880MHz with SMA Female connectors. The SMA cavity bandpass filter design is rated for a VSWR of ≤1.3:1 and a maximum power of 20 Watts.
- Description
Description
SPEC
|
Cavity bandpass filter |
|
|
Bandpass Filter From 1805MHz To 1880MHz With SMA-Female Connectors |
|
|
OBP-1842-75 |
|
|
Cavity bandpass filter part number OBP-1842-75 is only one product of a wide selection of coaxial RF filter components supplied by RFecho. This RF cavity band pass filter design is built from 1805MHz to 1880MHz with SMA Female connectors. The SMA cavity bandpass filter design is rated for a VSWR of ≤1.3:1 and a maximum power of 20 Watts. |
|
|
Property |
Value |
|
Center Frequency (F0) (MHz) |
NA |
|
Min. Pass Band Frequency (MHz) |
1805 |
|
Max. Pass Band Frequency (MHz) |
1880 |
|
Pass Band Insertion Loss (dB) |
≤1.5 |
|
Stop Band Rejection |
≥70dB @ DC～1200MHz ≥40dB @ 1200～1785MHz ≥40dB @ 1920～2400MHz ≥70dB @ 2400～3000MHz |
|
Impedance (Ω) |
50 |
|
Power Handling (W) |
20 |
|
Connection Type |
SMA-Female |
|
|
|
Data Sheet

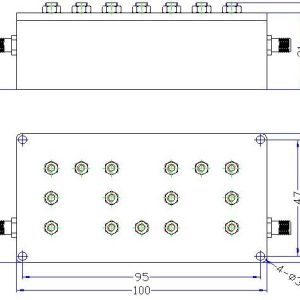

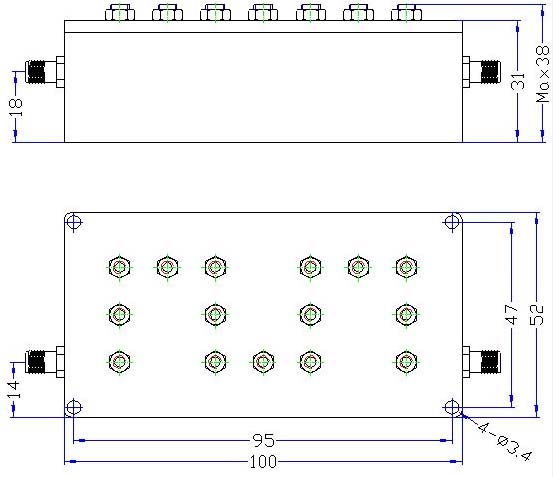

Outline

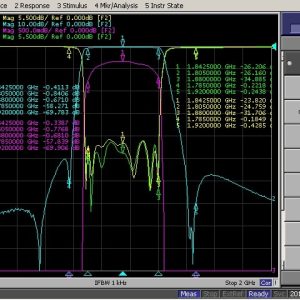

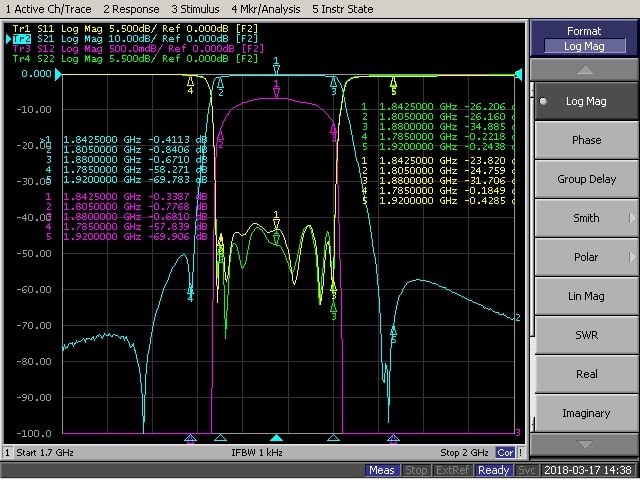

Plot
