Bandpass Filter From 400MHz To 403MHz With N-Female Connectors

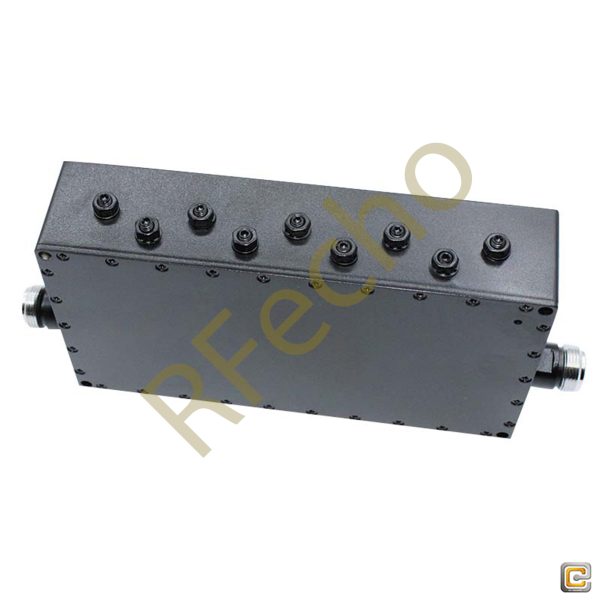

Cavity bandpass filter part number OBP-401.5-3 is only one product of a wide selection of coaxial RF filter components supplied by RFecho. This RF cavity band pass filter design is built from 400MHz to 403MHz with N Female connectors. The N-Type cavity bandpass filter design is rated for a VSWR of ≤1.5:1 and a maximum power of 50 Watts.
- Description
- Additional information
Description
SPEC
|
Cavity bandpass filter |
|
|
Bandpass Filter From 400MHz To 403MHz With N-Female Connectors |
|
|
OBP-401.5-3 |
|
|
Cavity bandpass filter part number OBP-401.5-3 is only one product of a wide selection of coaxial RF filter components supplied by RFecho. This RF cavity band pass filter design is built from 400MHz to 403MHz with N Female connectors. The N-Type cavity bandpass filter design is rated for a VSWR of ≤1.5:1 and a maximum power of 50 Watts. |
|
|
Property |
Value |
|
Center Frequency (F0) (MHz) |
401.5 |
|
Min. Pass Band Frequency (MHz) |
400 |
|
Max. Pass Band Frequency (MHz) |
403 |
|
Pass Band Insertion Loss (dB) |
≤2.0 |
|
Stop Band Rejection |
≥35dB @ Fc±8MHz (DC～392MHz、411～800MHz) |
|
Impedance (Ω) |
50 |
|
Power Handling (W) |
≤50 |
|
Connection Type |
N Female |
|
|
|
Data Sheet

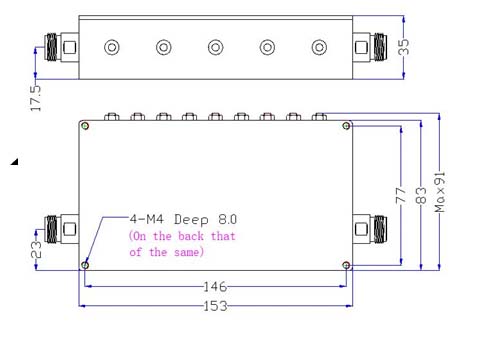

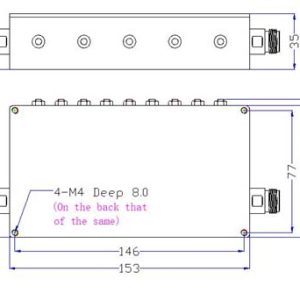

Outline

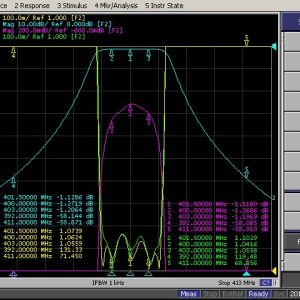

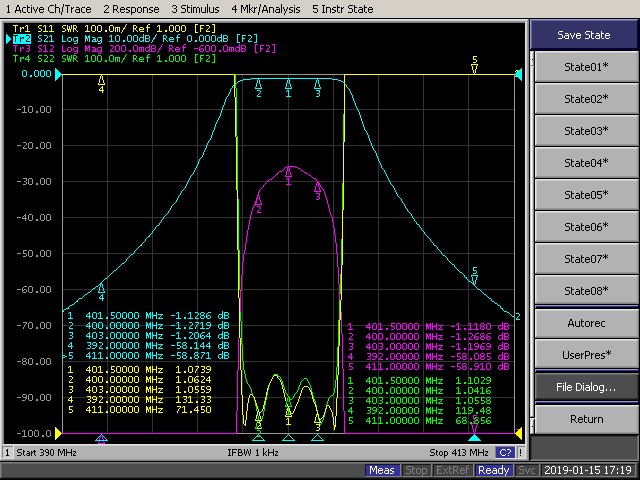

Plot
