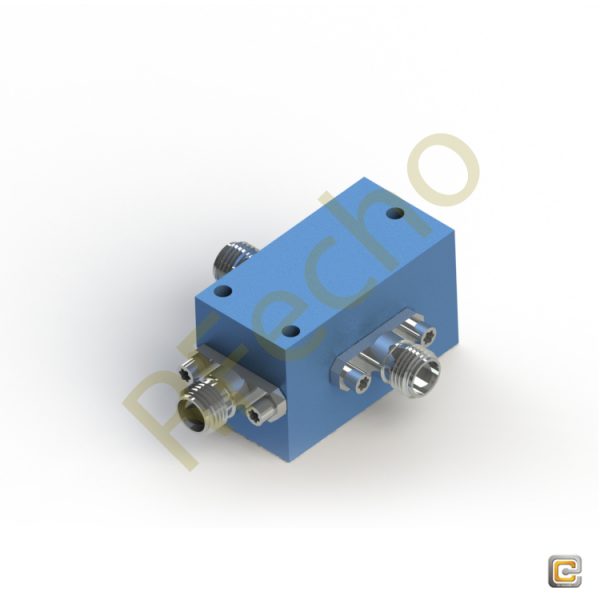

Bias Tee OBT-1720-4

Bias Tee OBT-1720-4

0 out of 5

$190

The RFecho BIAS TEES series of products range up to 2.0GHz. They have good performance in terms of reliability and ease-of-use when compared to cumbersome user-designed bias tees employing off-the-shelf conical inductors.
This series can be designed to inner-only topology andutilize our standard housings for fast turn manufacturing.
They are asuperior option for biasing amplifiers, lasers, and modulators driven withhigh frequency data patterns.

SKU: OBT-1720-4 Categories: Bias Tee, Routing

Description

SPEC

Bias Tee



The RFecho BIAS TEES series of products range up to 2GHz.They have good performance in terms of reliability and ease-of-use when compared to cumbersome user-designed bias tees employing off-the-shelf conical inductors.



This series can be designed to inner-only topology and utilize our standard housings for fast turn manufacturing.They are a superior option for biasing amplifiers, lasers, and modulators driven with high frequency data patterns.

Features

Low Insertion Loss

Non-Resonant

Compact Size

Applications

Amplifier

Modulator

  Part No.

Frequency Range

Isolation

Insertion Loss

Current

Power

Voltage

VSWR

OBT-1720-4

1700 – 2000 MHz

30 dB Min

0.5 dB Max

5000 mA Max

10 Watt Max

100 Vdc Max

1.50:1 Max





PDF

Additional information

Min Frequency

1.7GHz

Max Frequency

2.0GHz

Insertion Loss (dB), Max.

0.5

VSWR (Max.)

1.50:1
