Bias Tee OBT-5100-S

Bias Tee OBT-5100-S

0 out of 5

$690

The RFecho BIAS TEES series of products range up to 10GHz. They have good performance in terms of reliability and ease-of-use when compared to cumbersome user-designed bias tees employing off-the-shelf conical inductors.
This series can be designed to inner-only topology andutilize our standard housings for fast turn manufacturing.
They are asuperior option for biasing amplifiers, lasers, and modulators driven withhigh frequency data patterns.

SKU: OBT-5100-S Categories: Bias Tee, Routing

Description

SPEC

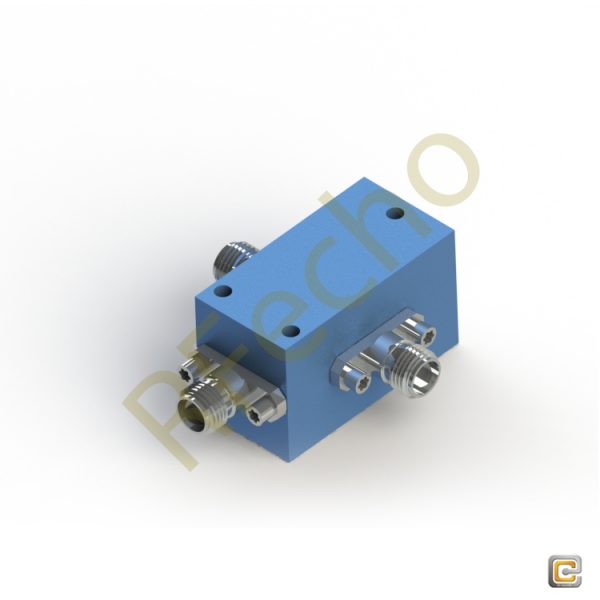

Bias Tee



The RFecho BIAS TEES series of products range up to 10GHz.They have good performance in terms of reliability and ease-of-use when compared to cumbersome user-designed bias tees employing off-the-shelf conical inductors.



This series can be designed to inner-only topology and utilize our standard housings for fast turn manufacturing.They are a superior option for biasing amplifiers, lasers, and modulators driven with high frequency data patterns.

Features

Low Insertion Loss

Non-Resonant

Compact Size

Applications

Amplifier

Modulator

  Part No.

Frequency Range

Isolation

Insertion Loss

Current

Power

Voltage

VSWR

OBT-5100-S

0.5 – 10 GHz

30 dB Min

1.0 dB Max

200 mA Max

1 Watt Max

50 Vdc Max

1.50:1 Max





PDF

Additional information

Min Frequency

0.5GHz

Max Frequency

10GHz

Insertion Loss (dB), Max.

1

VSWR (Max.)

1.50:1
