Biconical Antenna OBC022-1000W

Biconical Antenna OBC022-1000W

OBC022-1000W

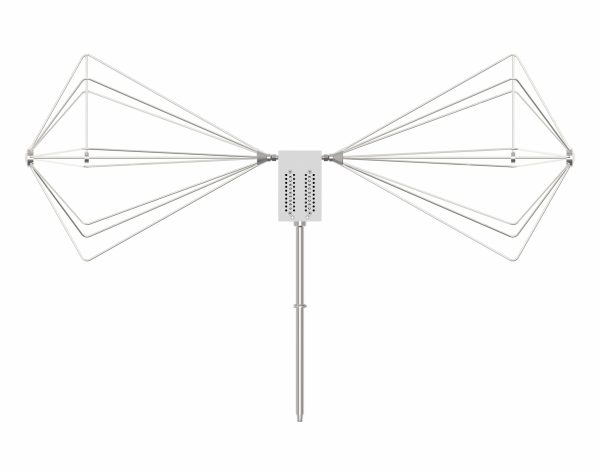

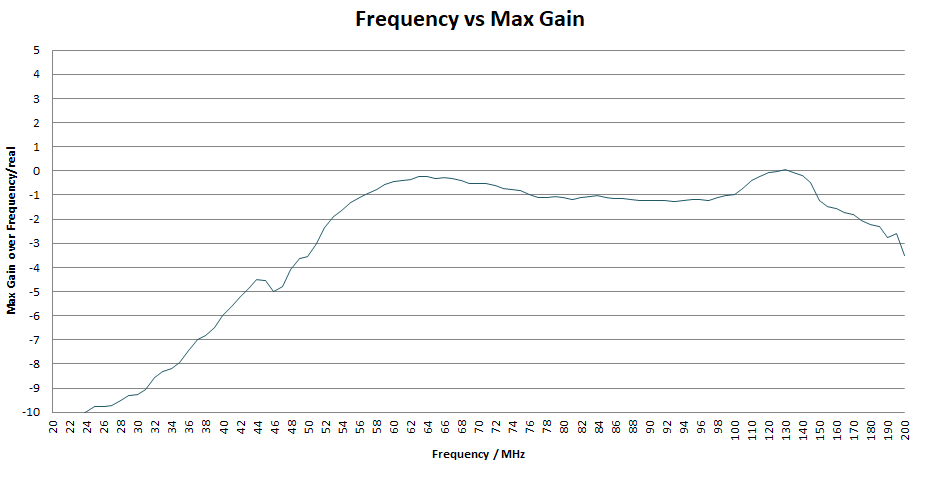

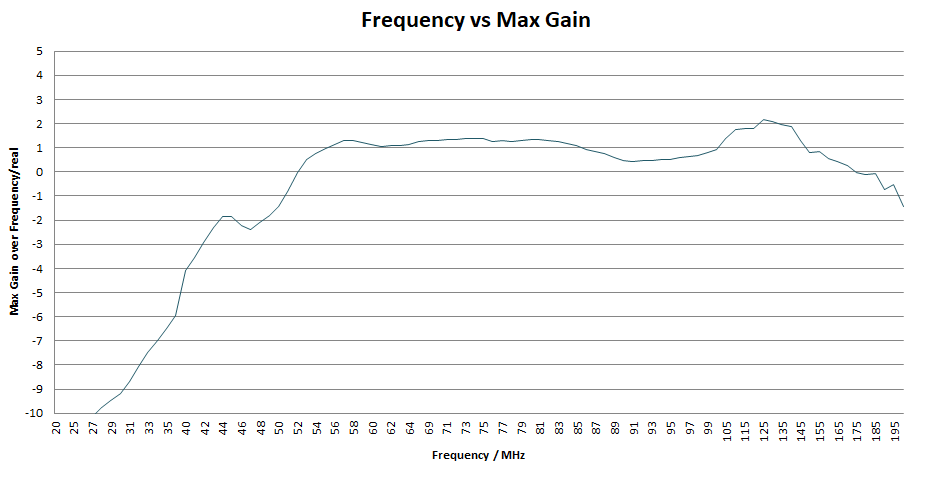

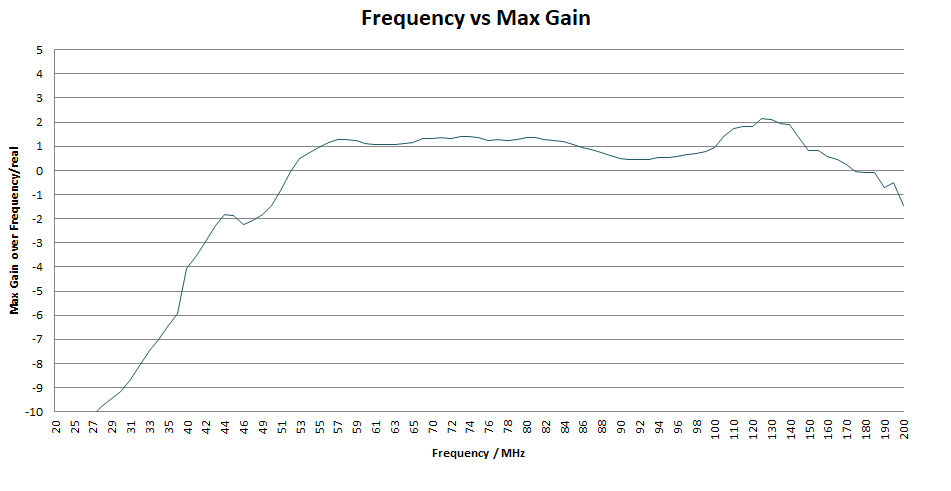

The OBC022-1000W is a versatile Biconical antenna, covering a wide frequency range from 20 MHz to 200 MHz, and known for its perfect pattern stability with 2500W power handling. The 4:1 Balun design of this model enhances gain and provides a more sensitive antenna factor. The OBC022-1000W features robust broadband characteristics, making it a popular choice for a wide range of EMI testing operations, including demonstrating compliance with FCC, CE, MIL-STD, RTCADO-160 and other criteria. It integrates flawlessly into scanning measurement and automated measurement systems, and is commonly used for transmission and immunity test to meet various EMC standard. Moreover, this antenna can completely replace traditional half-wave dipole antenna, providing a significant time saving.

Property

Value

Frequency Range

20 MHz∼200 MHz

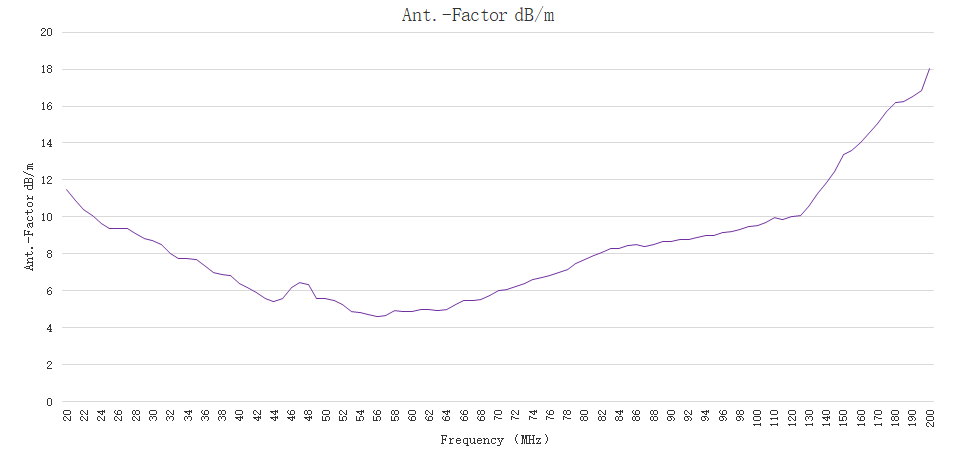

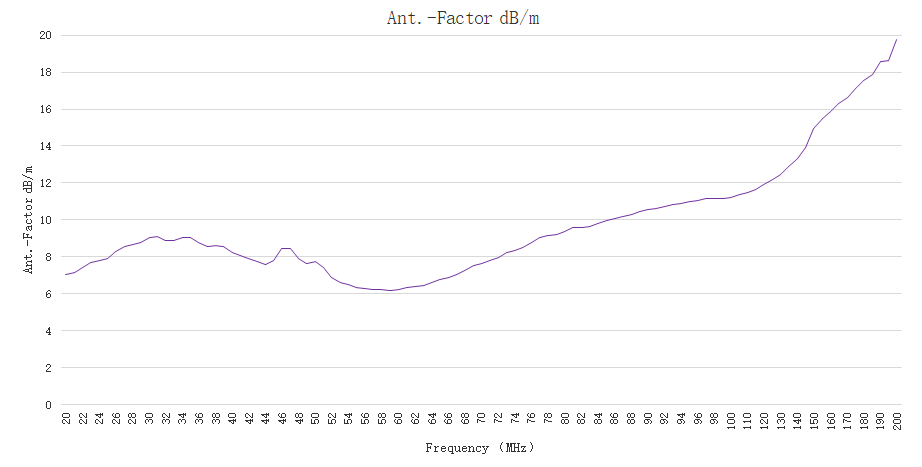

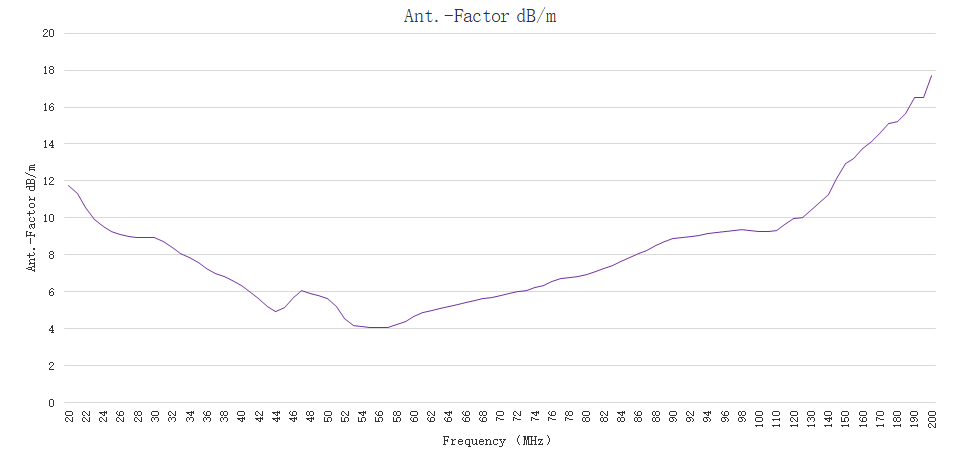

Antenna Factor:

typ.4-18 dB/m

Antenna shaft (Tube)

22 mm

Coaxial Connector (female)

N 7/16

Nominal Impedance

50 Ohm

Length holder

LH=660 mm

Features

20-200 MHz coverage.

Ensures consistent performance.

Supports up to 2500W power.

Applications

Ensures EMC compliance.

Automated measurement systems.

Transmission and immunity testing.
