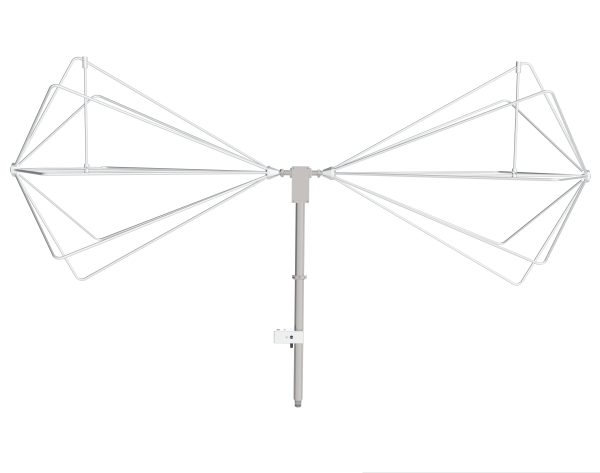

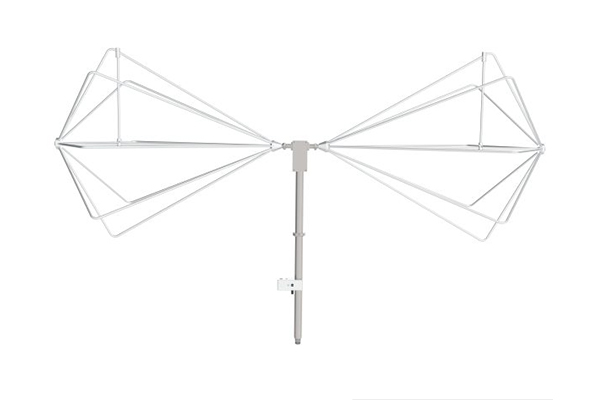

Biconical Antenna OBC0310
The OBC0310 is a high-performance Biconical antenna, designed for a broad frequency range from 30 MHz to 1000 MHz, and well-known for its perfect pattern stability with 100W power handling. The 4:1 Balun design of this model enhances gain and provides a more sensitive antenna factor. The OBC0310 features robust broadband characteristics, making it a popular choice for a wide range of EMI testing operations,
including demonstrating compliance with FCC,CE, MIL-STD, RTCADO-160 and other criteria. It integrates flawlessly into scanning measurement and automated measurement systems, and is commonly used for transmission and immunity test to meet various EMC standard. Moreover, this antenna can
completely replace traditional half-wave dipole antenna, providing a significant time saving.
- Description
Description
SPEC
|
|
|
|
Biconical Antenna OBC0310 |
|
|
OBC0310 |
|
|
The OBC0310 is a high-performance Biconical antenna, designed for a broad frequency range from 30 MHz to 1000 MHz, and well-known for its perfect pattern stability with 100W power handling. The 4:1 Balun design of this model enhances gain and provides a more sensitive antenna factor. The OBC0310 features robust broadband characteristics, making it a popular choice for a wide range of EMI testing operations, |
|
|
Property |
Value |
|
Frequency Range |
30 MHz∼1000 MHz |
|
Antenna Factor |
1.32 m |
|
Holder length / diameter |
0.58 m / 22 mm |
|
Connector |
N |
|
Element fixture |
10 mm |
|
Holder / balun weight |
0.9KG |
|
|
|
|
Features |
|
|
30-300 MHz coverage. |
|
|
Ensures accurate results. |
|
|
Supports up to 100W power. |
|
|
Applications |
|
|
Ensures EMC compliance |
|
|
Automated measurement systems. |
|
|
Transmission and immunity testing. |
|

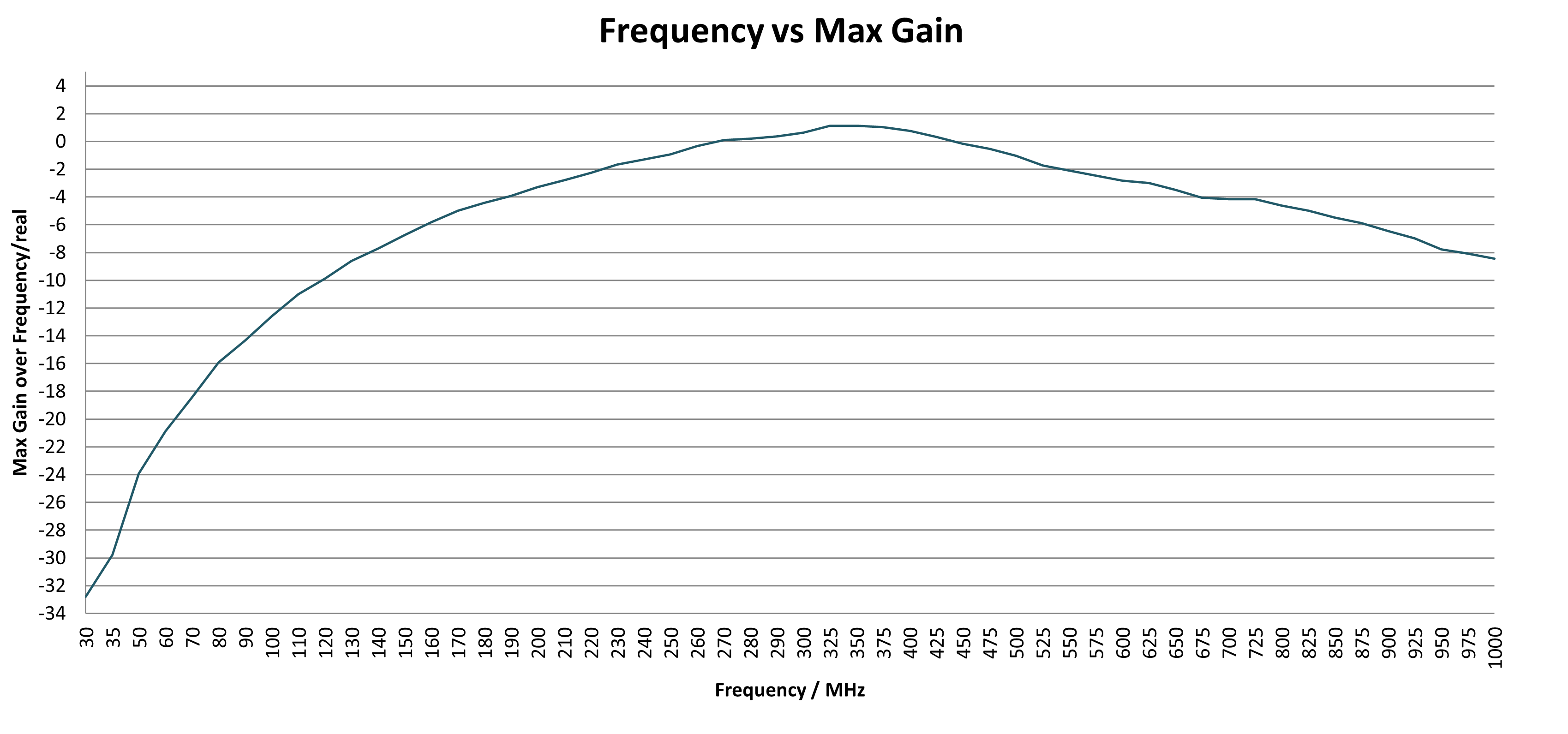

Frequency vs Max Gain

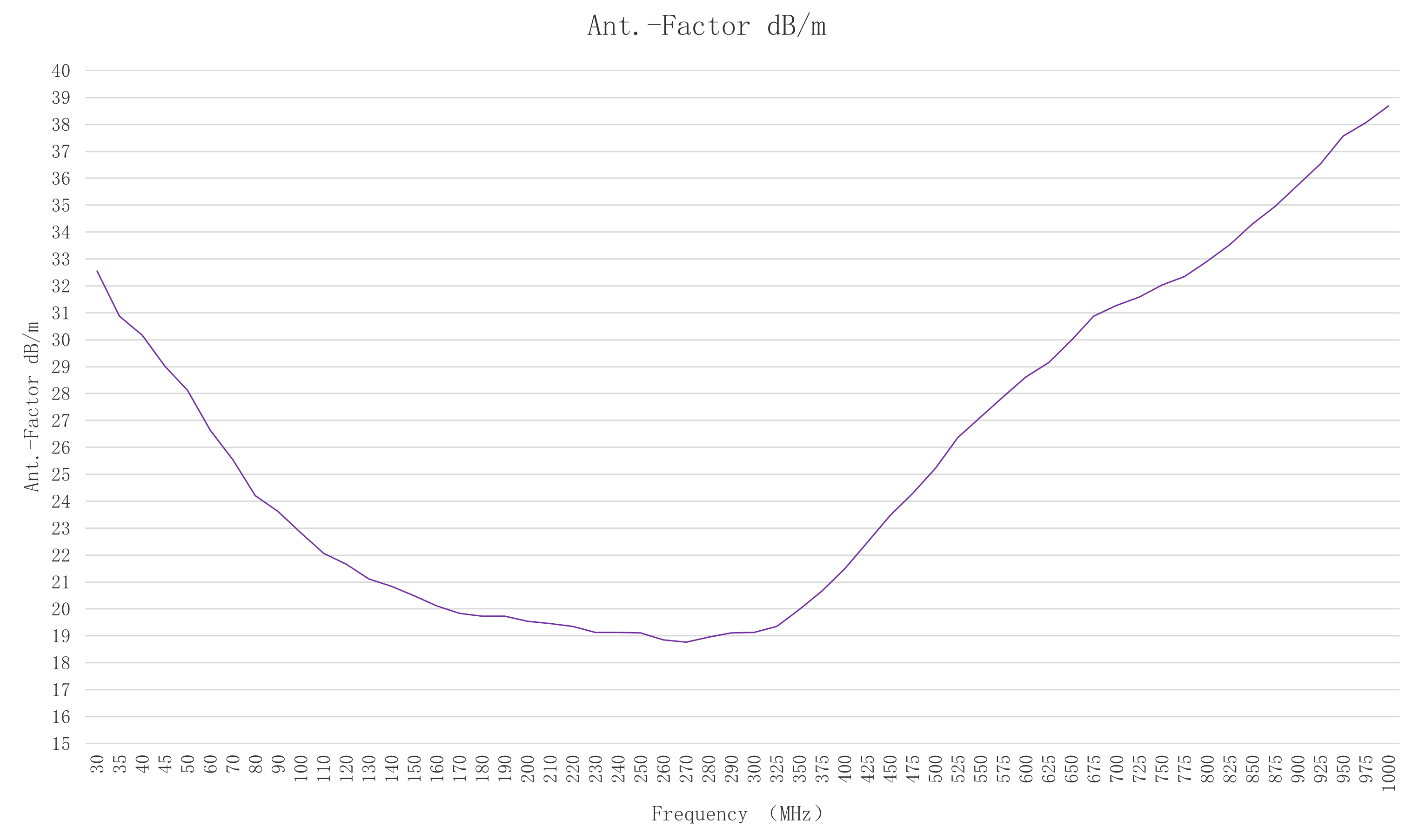

Ant.-Factor(dB/m)
