Broadband Horn Antenna OBH-08180


Compare

OBH08180 double ridge horn antennas operate from ultra-band from 800MHz to 18GHz. The antenna supports linear polarized wave forms.High gain and low VSWR permit the measurement of weak signals and the generation of high field strengths without any significant return loss.

OBH08180 antenna is calibrated individually in line with ANSI C63.5-2006, making the antennas ideal for EMC/RF measurements.OBH08180’s radiation pattern contains only a single main lobe over the entire frequency range.The antennas are low weight and with rugged construction.

Lightweight for easy handling Stiff and robust mechanical design Standard MVG circular interface for precision centering Precision pin for accurate polarization alignment
Precision machinedHigh reliability coaxial connector.

SPEC

OBH Series Broadband Horn Antenna

800MHz to 18GHz broadband horn antenna



4 antennas cover from 400MHz to 40GHz



OBH08180 double ridge horn antennas operate from ultra-band from 800MHz to 18GHz The antenna supports linear polarized wave forms.



High gain and low VSWR permit the measurement of weak signals and the generation of high field strengths without any significant return loss.



OBH08180 antenna is calibrated individually in line with ANSI C63.5-2006, making the antennas ideal for EMC/RF measurements.



OBH08180’s radiation pattern contains only a single main lobe over the entire frequency range.

The antennas are low weight and with rugged construction.



Lightweight for easy handling

Stiff and robust mechanical design

Standard MVG circular interface for precision centering

Precision pin for accurate polarization alignment

Precision machined

High reliability coaxial connector



Features

Linear polarized with high polarization purity

Frequency from 800MHz to 18GHz

Low return loss / VSWR

Wide bandwidth

Uniform Gain

High Power Handling Capability

Each antenna is calibrated individually in line with ANSI C63.5-2006

Lightweight for easy handling



Applications

EMC/RF Measurements

Detecting the Direction

Surveillance

Antenna Gain/Pattern Measurements







      Type of Antenna

Dual-Ridge Horn

Frequency Range (GHz)

0.8-18.0

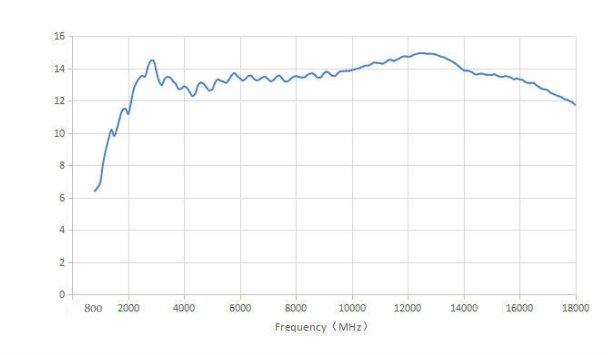

Gain(dB)

8-13dB

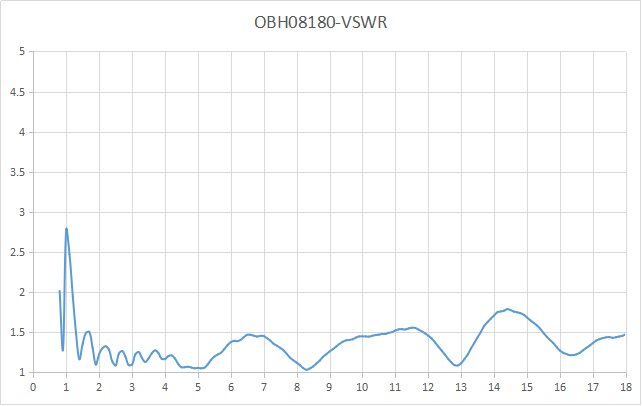

VSWR

<2.7Max

Polarization

Single Linear

Impedance

50Ω







PDF

Outline

Plot

SKU: OBH-08180 Categories: , ,
