Broadband Horn Antenna OBH-100400


Compare

OBH100400 horn antenna operates from 10GHz to 40GHz.The antenna supports linear polarized waveforms.High gain and low VSWR permit the measurement of weak signals and the generation of high field strengths without any significant return loss.

OBH100400 is calibrated individually in line with ANSI C63.5-2006, making the antennas ideal for EMC/RF measurements.OBH100400’s radiation pattern contains only a single main lobe over the entire frequency range .The antennas are low weight and with rugged construction.

Standard MVG circular interface for precision centering Precision pin for accurate polarization alignment, Precision machined High reliability coaxial connector

SPEC

OBH Series Broadband Horn Antenna

10GHz to 40GHz broadband horn antenna



4 antennas cover from 400MHz to 40GHz



OBH100400 horn antenna operates from 10GHz to 40GHz.The antenna supports linear polarized waveforms.

High gain and low VSWR permit the measurement of weak signals and the generation of high field strengths without any significant return loss.

OBH100400 is calibrated individually in line with ANSI C63.5-2006, making the antennas ideal for EMC/RF measurements.

OBH100400’s radiation pattern contains only a single main lobe over the entire frequency range.

The antennas are low weight and with rugged construction.

Standard MVG circular interface for precision centering

Precision pin for accurate polarization alignment, Precision machined

High reliability coaxial connector

Features

Linear polarized with high polarization purity

Frequency from 10GHz to 40GHz

Low return loss / VSWR

Wide bandwidth

Uniform Gain

High Power Handling Capability

Each antenna is calibrated individually in line with ANSI C63.5-2006

Lightweight for easy handling



Applications

EMC/RF Measurements

Detecting the Direction

Surveillance

Antenna Gain/Pattern Measurements



Type of Antenna

Dual-Ridge Horn

Frequency Range (GHz)

10-40

Gain(dB)

8-13dB

VSWR

<2.7Max

Polarization

Single Linear

Impedance

50Ω







PDF

Outline

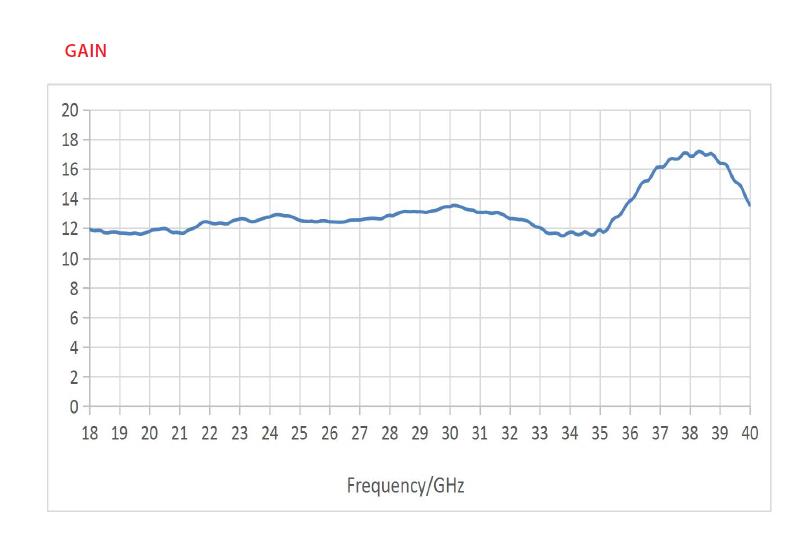

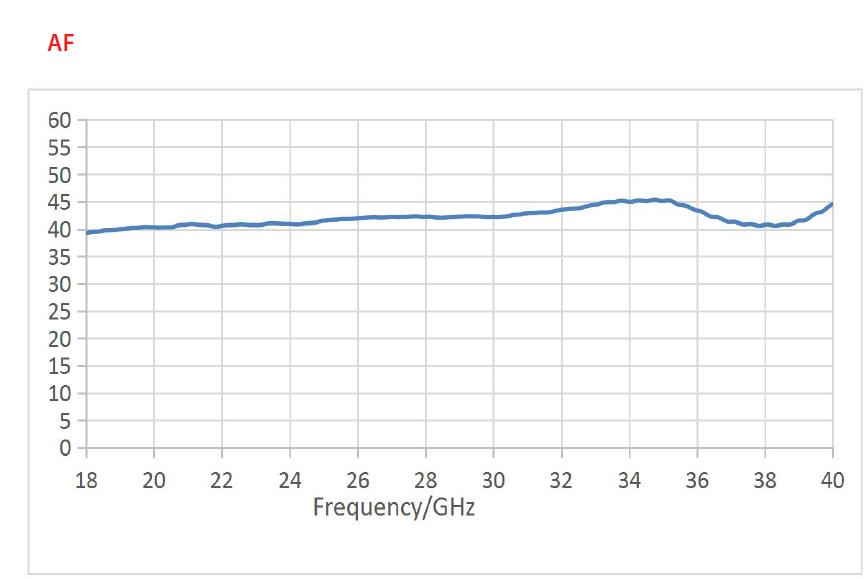

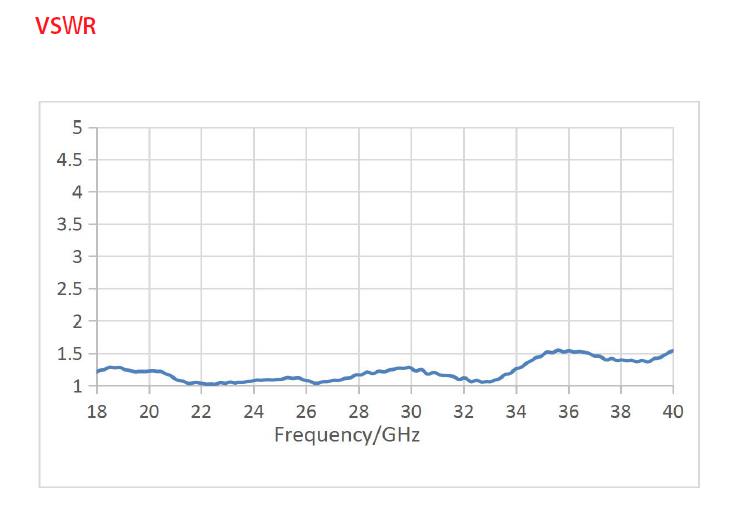

Plot

SKU: OBH-100400 Categories: , ,
