Broadband Horn Antenna OBH-10180


Compare

OBH10180 double ridge horn antennas operate broadband from 1GHz to 18GHz. The antenna supports linear polarized waveforms. High gain and low VSWR permit the measurement of weak signals and the generation of high field strengths without any significant return loss.

OBH series are calibrated individually in line with ANSI C63.5-2006, making the antennas ideal for EMC/RF measurements. The OBH series itself apart from conventional broadband horn antennas in that its radiation pattern contains only a single main lobe over the entire frequency range. The antennas are low weight and with rugged construction

SPEC

OBH Series Broadband Horn Antenna

1GHz to 18GHz broadband horn antenna



4 antennas cover from 400MHz to 40GHz



OBH10180 double ridge horn antennas operate broadband from 1GHz to 18GHz. The antenna supports linear polarized waveforms.

High gain and low VSWR permit the measurement of weak signals and the generation of high field strengths without any significant return loss.

OBH series are calibrated individually in line with ANSI C63.5-2006, making the antennas ideal for EMC/RF measurements.

The OBH series itself apart from conventional broadband horn antennas in that its radiation pattern contains only a single main lobe over the entire frequency range.

The antennas are low weight and with rugged construction





Features

Linear polarized with high polarization purity

Frequency from 1GHz to 18GHz

Low return loss / VSWR

Wide bandwidth

Uniform Gain

High Power Handling Capability

Each antenna is calibrated individually in line with ANSI C63.5-2006

Lightweight for easy handling



Applications

EMC/RF Measurements

Detecting the Direction

Surveillance

Antenna Gain/Pattern Measurements



Type of Antenna

Dual-Ridge Horn

Frequency Range (GHz)

1-18GHz

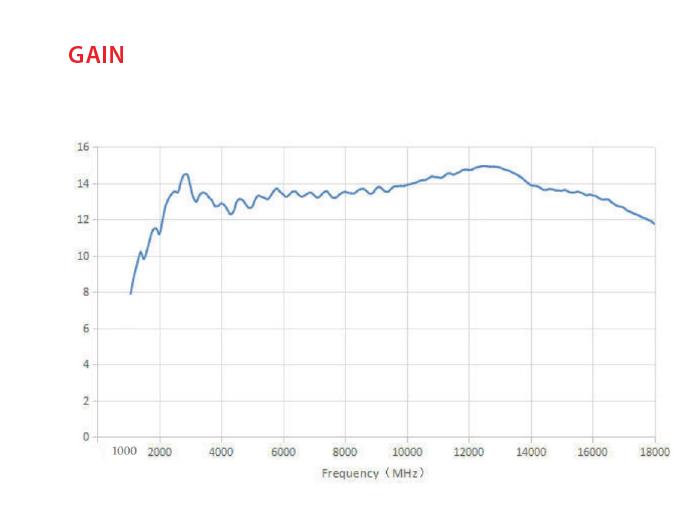

Gain(dB)

6-15dB

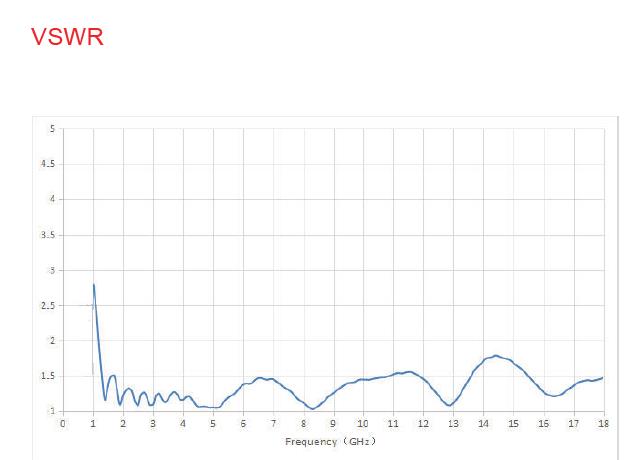

VSWR

<2.0Max

Polarization

Single Linear

Impedance

50Ω







PDF

Outline

Plot

SKU: OBH-10180 Categories: , ,
