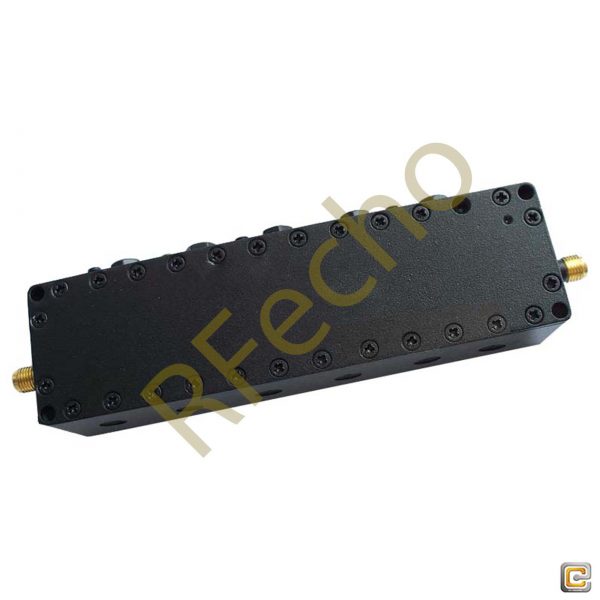

Bandpass Filter From 1452MHz To 1496MHz With SMA-Female Connectors
Cavity bandpass filter part number OBP-1474-44 is only one product of a wide selection of coaxial RF filter components supplied by RFecho. This RF cavity band pass filter design is built from 1452MHz to 1496MHz with SMA Female connectors. The SMA cavity bandpass filter design is rated for a VSWR of ≤1.2:1 and a maximum power of 10 Watts.
- Description
- Additional information
- Reviews (0)
Description
Cavity bandpass filter part number OBP-1474-44 is only one product of a wide selection of coaxial RF filter components supplied by RFecho. This RF cavity band pass filter design is built from 1452MHz to 1496MHz with SMA Female connectors. The SMA cavity bandpass filter design is rated for a VSWR of ≤1.2:1 and a maximum power of 10 Watts.
RFecho bandpass filter has a minimum passband frequency of 0.01 GHz and a maximum pass band frequency of 40 GHz. Cavity RF band-pass filter part number OBP-1474-44 has an insertion loss maximum that is 1.0 dB. More coaxial SMA bandpass filter design specs for this radio frequency component can be found on its cavity RF bandpass filter PDF specifications datasheet.
RFecho also stocks a large selection of other RF filter products that will ship the same day from our location. RF/microwave and millimeter wave bandpass cavity filter components and other RF parts for radio, antenna, other types of radio frequency component connections in typical use, production, test and measurement labs, military/defense, etc. are in stock and ship same day from our warehouse inventory.
Bandpass Filter Datasheet (Click to download)
OBP-1474-44Additional information
| Center Frequency (F0) (MHz) | |
|---|---|
| Min. Pass Band Frequency (MHz) | |
| Max. Pass Band Frequency (MHz) | |
| Pass Band Insertion Loss (dB) | |
| Stop Band Rejection | |
| Impedance (Ω) | |
| Power Handling (W) | |
| Connection Type |
