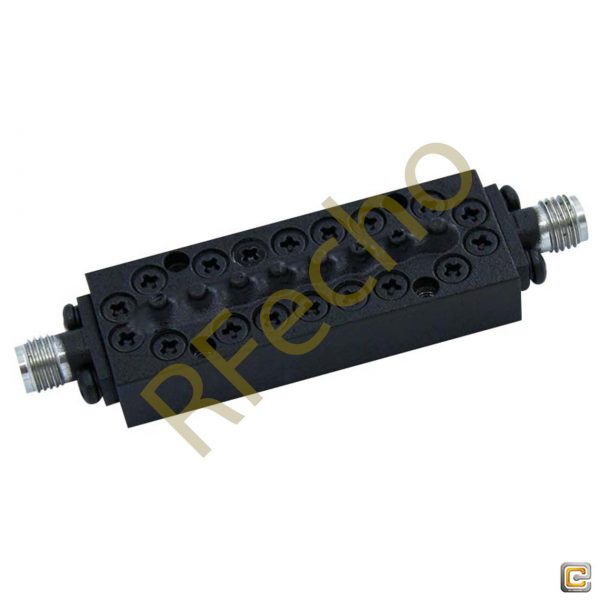

Bandpass Filter From 26.5GHz To 29.5GHz With N-Type 2.92mm(K) M/F Connectors OBP-28000-3000

Cavity bandpass filter part number OBP-28000-3000 is only one product of a wide selection of coaxial RF filter components supplied by RFecho. This RF cavity band pass filter design is built from 37GHz to 42GHz with N-Type 2.92mm(K) M/F Connectors. The N-Type cavity bandpass filter design is rated for a VSWR of ≤1.5:1 and a maximum power of 10 Watts.

SKU: OBP-28000-3000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Cavity bandpass filter part number OBP-28000-3000 is only one product of a wide selection of coaxial RF filter components supplied by RFecho. This RF cavity band pass filter design is built from 26.5GHz To 29.5GHz with N-Type 2.92mm(K) M/F Connectors. The N-Type cavity bandpass filter design is rated for a VSWR of ≤1.5:1 and a maximum power of 10 Watts.

RFecho bandpass filter has a minimum passband frequency of 0.01 GHz and a maximum pass band frequency of 40 GHz. Cavity RF band-pass filter part number OBP-28000-3000 has an insertion loss maximum that is 1.0 dB. More coaxial N-Type bandpass filter design specs for this radio frequency component can be found on its cavity RF bandpass filter PDF specifications datasheet.

RFecho also stocks a large selection of other RF filter products that will ship the same day from our location. RF/microwave and millimeter wave bandpass cavity filter components and other RF parts for radio, antenna, other types of radio frequency component connections in typical use, production, test and measurement labs, military/defense, etc. are in stock and ship same day from our warehouse inventory.



PDF

Bandpass Filter Datasheet (Click to download)

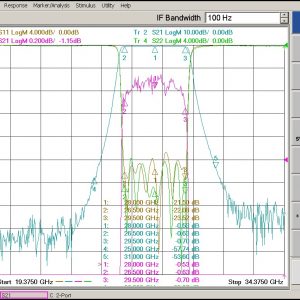

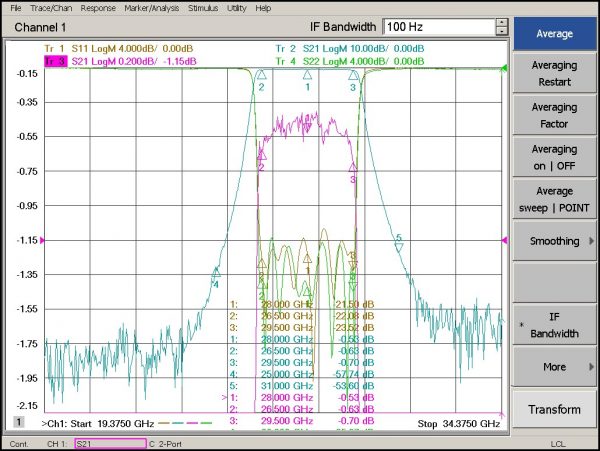

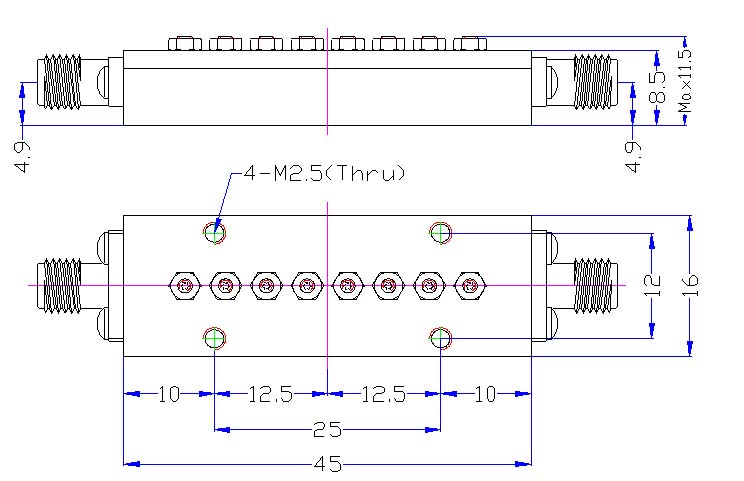

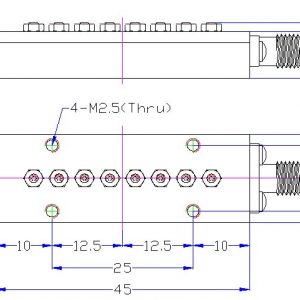

Outline

Additional information

Center Frequency (F0) (MHz)

28000

Min. Pass Band Frequency (MHz)

26500

Max. Pass Band Frequency (MHz)

29500

Pass Band Insertion Loss (dB)

≤1.0

Stop Band Rejection

≥30dB @ 25GHz ≥30dB @ 31GHz

Impedance (Ω)

50

Power Handling (W)

≤10

Connection Type

2.92mm-Female
