Bandpass Filter From 2.0GHz To 10.0GHz With SMA-Female Connectors

Bandpass Filter From 2.0GHz To 10.0GHz With SMA-Female Connectors

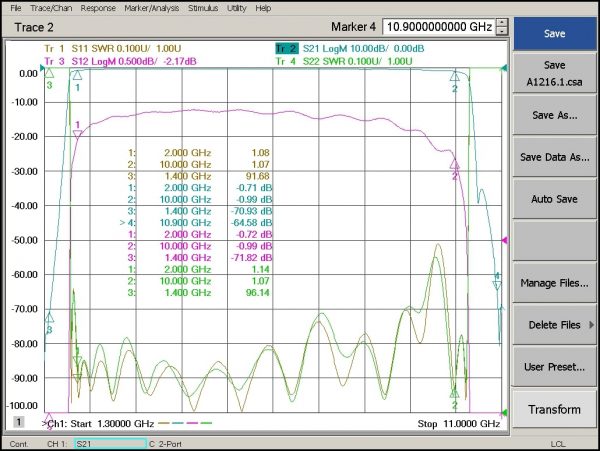

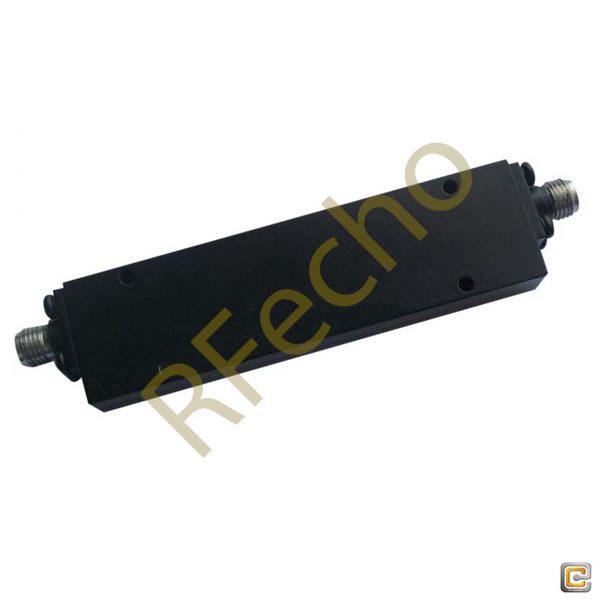

Cavity bandpass filter part number OBP-6000-8000 is only one product of a wide selection of coaxial RF filter components supplied by RFecho. This RF cavity band pass filter design is built from 2.0GHz to 10.0GHz with SMA Female connectors. The SMA cavity bandpass filter design is rated for a VSWR of ≤1.3:1 and a maximum power of 5 Watts.

SKU: OBP-6000-8000 Categories: Cavity Band Pass Filter, RF Cavity Filter, RF Filters

Description

Cavity bandpass filter part number OBP-6000-8000 is only one product of a wide selection of coaxial RF filter components supplied by RFecho. This RF cavity band pass filter design is built from 2.0GHz to 10.0GHz with SMA Female connectors. The SMA cavity bandpass filter design is rated for a VSWR of ≤1.3:1 and a maximum power of 5 Watts.

RFecho bandpass filter has a minimum passband frequency of 0.01 GHz and a maximum pass band frequency of 40 GHz. Cavity RF band-pass filter part number OBP-6000-8000 has an insertion loss maximum that is 1.5 dB. More coaxial SMA bandpass filter design specs for this radio frequency component can be found on its cavity RF bandpass filter PDF specifications datasheet.

RFecho also stocks a large selection of other RF filter products that will ship the same day from our location. RF/microwave and millimeter wave bandpass cavity filter components and other RF parts for radio, antenna, other types of radio frequency component connections in typical use, production, test and measurement labs, military/defense, etc. are in stock and ship same day from our warehouse inventory.

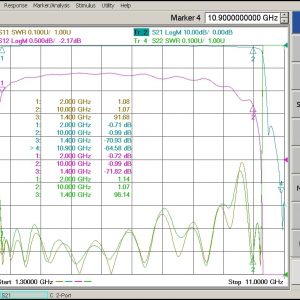

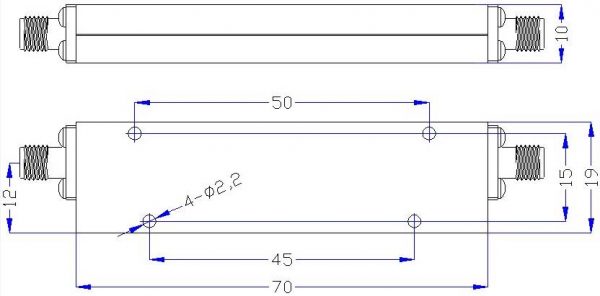

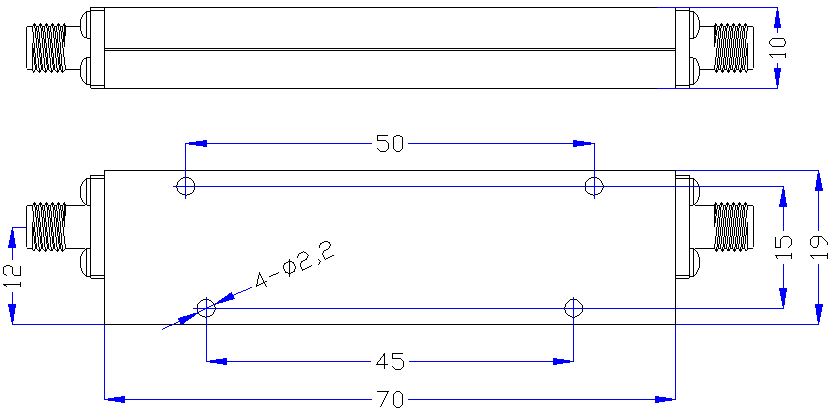

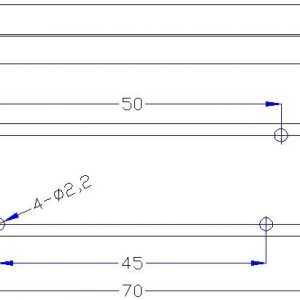

Outline



PDF

Bandpass Filter Datasheet (Click to download)

Additional information

Center Frequency (F0) (MHz)

NA

Min. Pass Band Frequency (MHz)

2000

Max. Pass Band Frequency (MHz)

10000

Pass Band Insertion Loss (dB)

≤1.5

Stop Band Rejection

≥60dB @ DC~1.4GHz ≥50dB @ 10.9~11.3GHz ≥55dB @ 11.3~15.4GHz ≥30dB @ 15.4~16.9GHz ≥55dB @ 16.9~19.5GHz

Impedance (Ω)

50

Power Handling (W)

5

Connection Type

SMA-Female
