2555MHz to 2655MHz Band Stop RF Filter rejection ≥ 60dB RF Cavity Band Reject Filter with N Female Connector

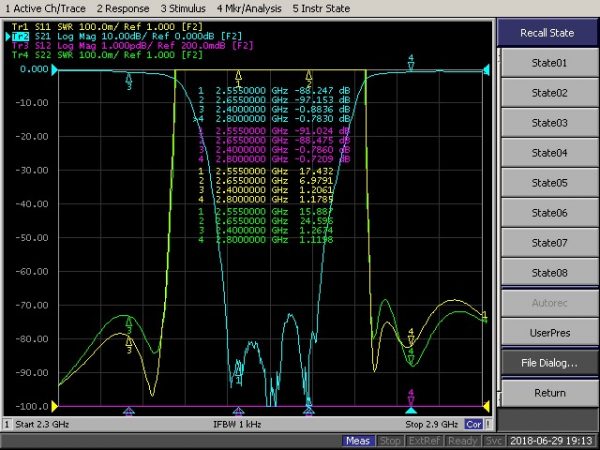

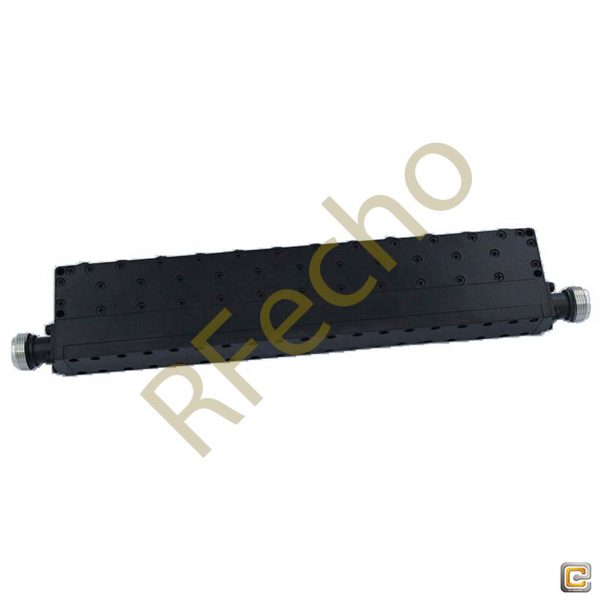

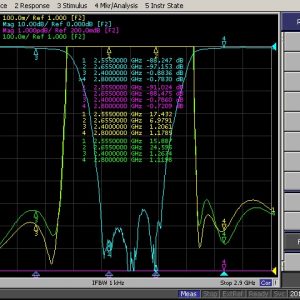

2555MHz to 2655MHz Band Stop RF Filter model OHP: 2605-100 also known as Band Stop filter and Notch Filter that passes most frequencies unaltered but attenuates frequencies in a specific range to a very low level. This 2555MHz to 2655MHz Band Stop RF Filter manufactured with a stopband frequency from 2555MHz to 2655MHz and a passband frequency from DC to 2400MHz & 2800MHZ to 6000MHz. RF Cavity Band Reject Filter provides a nominal insertion loss of ≤1.5dB across its passband and a typical rejection of ≥60. Our 2555MHz to 2655MHz Band Stop RF Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This RF Cavity Band Reject Filter has Passband VSWR of ≤1.7:1 and Impedance of 50ohms. 2555MHz to 2655MHz Band Stop RF Filter is manufactured with N Female Connector and Net Weight of 0.465Kg. Our Ocean Microwave Band Reject Filter has power Handling of ≤20W. 2555MHz to 2655MHz Ocean Band Stop Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 2555MHz to 2655MHz Band Stop RF Filter is ready for shipping worldwide after purchase. Additional specs of this RF Cavity Band Reject Filter with N Female Connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.
