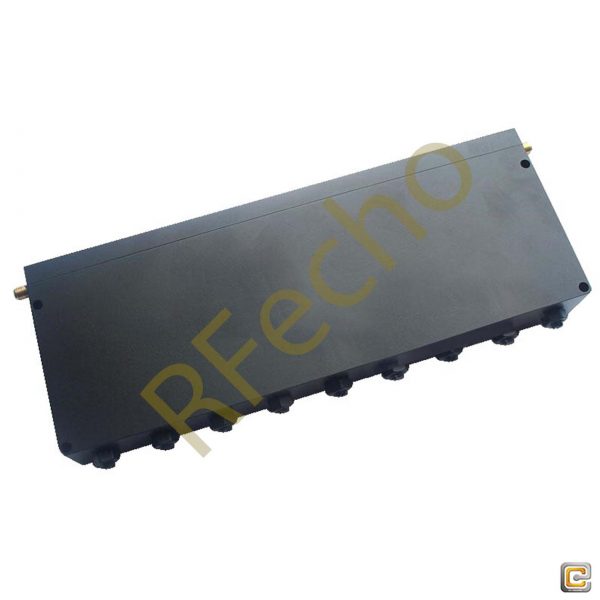

Band Reject RF Filter 832MHz to 862MHz rejection ≥ 40dB Band Reject Passive Filter with SMA Female Connector

Band Reject RF Filter model OHP: 847-30 also known as Band Stop filter and Notch Filter that passes most frequencies unaltered but attenuates frequencies in a specific range to a very low level. This Band Reject RF Filter manufactured with a stopband frequency from 832MHz to 862MHz and a passband frequency from DC to 812MHz & 882MHZ to 2400MHz. Band Reject Passive Filter provides a nominal insertion loss of ≤2.0dB across its passband and a typical rejection of ≥40. This Band Reject RF Filter can be changed by modifying the design, custom designs can be offered under different model numbers. This Band Reject Passive Filter has Passband VSWR of ≤1.5:1 and Impedance of 50ohms. Band Reject RF Filter is manufactured with SMA Female Connector and Net Weight of 0.83Kg. Our Ocean Microwave Band Reject Filter has power Handling of ≤50W. 832MHz to 862MHz Ocean Band Stop Cavity filter from RFecho is just one part in a large selection of our RF Components. Our 832MHz to 862MHz Band Reject RF Filter is ready for shipping worldwide after purchase. Additional specs of this Band Reject Passive Filter with SMA Female connector input can be found on the pdf file. RFecho also stocks a wide array of other RF components that ship from our warehouse for all your RF components needs.
