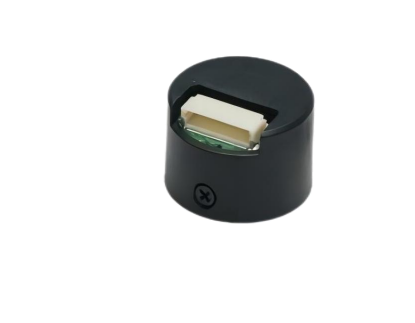

ER20M-P2K0-3D44T0
$55
EM20M-P series are on-axial magnetic encoders. These encoders are designed with two or three channels output, and also with resolution from 250 pulse per revolution (PPR) to 16384 PPR. Because of the bear-less and split-type design, EM20M-P has very smaller size：20mm (Cylinder)×13 mm (H). The low profile design can save assembly space and system weight, and the bear-less structure can reduce some potential failure risks, such as motion wear and grease volatilization. EM20M-P series encoders can be widely used onto stepping motor ,DC motor and BLDC motor with 20mm frange size.
- Description

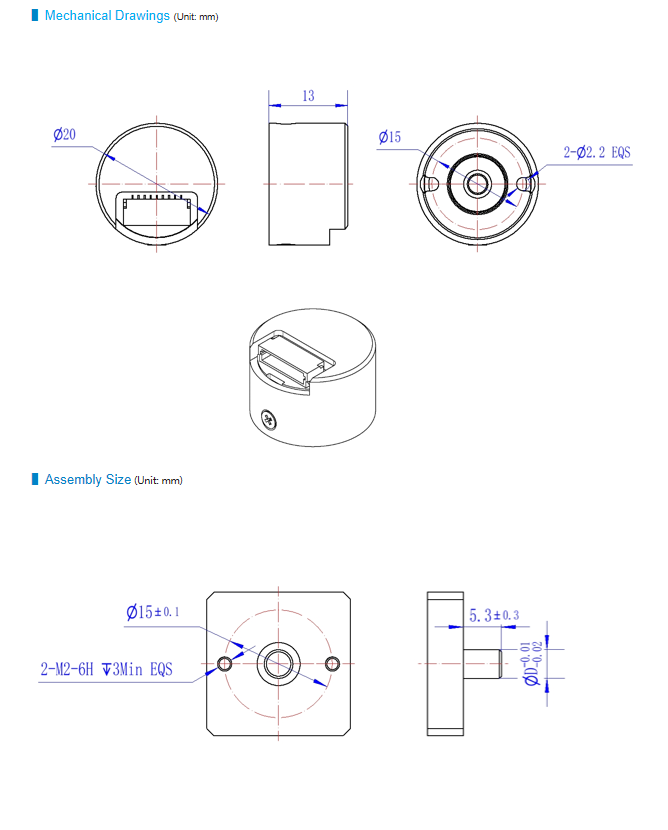

- Outline

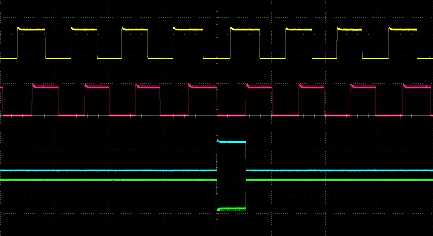

- Plot
- Additional information
- Reviews (0)
Description
EM20M-P series are on-axial magnetic encoders. These encoders are designed with two or three channels output, and also with resolution from 250 pulse per revolution (PPR) to 16384 PPR. Because of the bear-less and split-type design, EM20M-P has very smaller size：20mm (Cylinder)×13 mm (H). The low profile design can save assembly space and system weight, and the bear-less structure can reduce some potential failure risks, such as motion wear and grease volatilization. EM20M-P series encoders can be widely used onto stepping motor ,DC motor and BLDC motor with 20mm frange size.
Additional information
| Weight | 0.1 kg |
|---|---|
| Dimensions | 9 × 8 × 4 cm |
| Shape | Cylinder |
| Resolution | 2000 |
| Channel | 3(A/B/Z) |
| Output | Differential |
| Shaft Size | 4mm |
| Connection | 9pin |
| connector Voltage | 5V TTL |
| Z pulse width | 1/4T |
