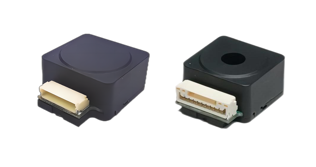

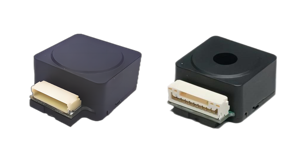

ER20T-P2K0-3D52T1
“ER20T-P series are reflective optical encoders. These encoders are designed with two or three channels output, and also with resolution from 250 pulses per revolution (PPR) to 4096 PPR.
Because of the bear-less and split-type design, ER20T-P has very smaller size：20mm (Square)×11 mm (H). The low profile design can save assembly space and system weight, and the bear-less structure can reduce some potential failure risks, such as motion wear and grease volatilization.
ER20T-P series encoders can be widely used to stepping motor ,DC motor and BLDC motor with 20mm or above flange size.”
- Description
- Outline
- Plot
- Additional information
- Reviews (0)
Description
“ER20T-P series are reflective optical encoders. These encoders are designed with two or three channels output, and also with resolution from 250 pulses per revolution (PPR) to 4096 PPR.
Because of the bear-less and split-type design, ER20T-P has very smaller size：20mm (Square)×11 mm (H). The low profile design can save assembly space and system weight, and the bear-less structure can reduce some potential failure risks, such as motion wear and grease volatilization.
ER20T-P series encoders can be widely used to stepping motor ,DC motor and BLDC motor with 20mm or above flange size.”
Additional information
| Weight | 0.1 kg |
|---|---|
| Dimensions | 9 × 8 × 4 cm |
| Shape | Square |
| Resolution | 2000 |
| Channel | 3(A/B/Z) |
| Output | Differential |
| Shaft Size | 5mm |
| Connection | 10pin lock |
| Voltage | 5V TTL |
| Z pulse width | 1/2T cover w/o hole |
