ER28M-P reflective optical encoders Channels~3 Resolution~999
$95
ER28M-P reflective optical encoders
Channels~3
Resolution~1000
- Description
- Outline
- Plot
- Additional information
- Reviews (0)
Description
Description

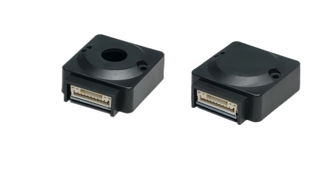

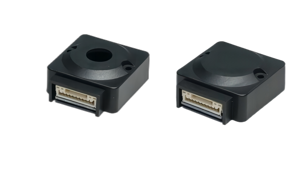

ER28M-P series are reflective optical encoders. These encoders are designed with two or three channels output, and also with resolution from 500 pulses per revolution (PPR) to 20000 PPR.
Because of the bear-less and split-type design, ER28M-P has very smaller size��28mm (Square)��12 mm (H). The low profile design can save assembly space and system weight, and the bear-less structure can reduce some potential failure risks, such as motion wear and grease volatilization.
ER28M-P series encoders can be widely used to stepping motor ,DC motor and BLDC motor with 28mm or above flange size.

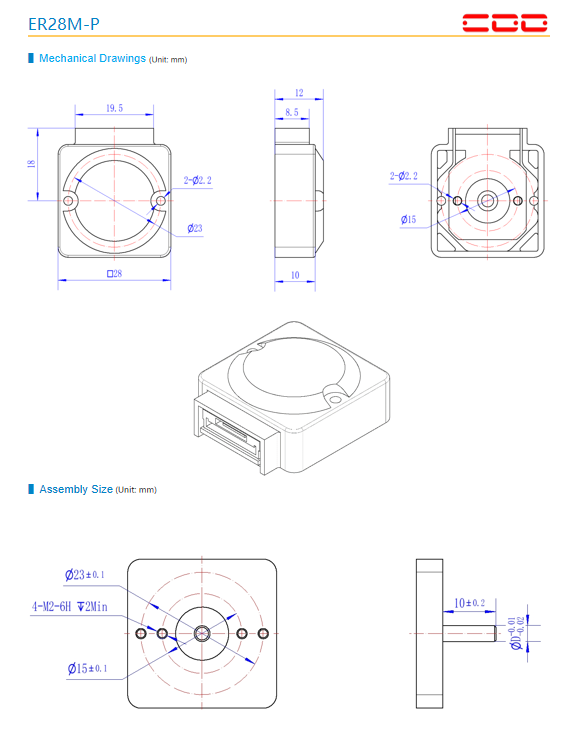

Outline

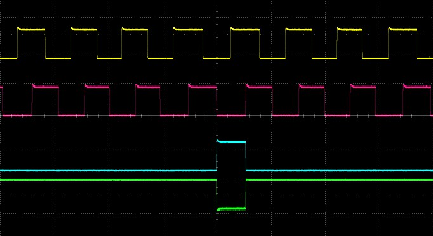

Plot
Additional information
Additional information
| Weight | 0.1 kg |
|---|---|
| Dimensions | 9 × 8 × 4 cm |
| ShapeFrequency (GHz) | Square |
| Resolution | 1000 |
| Channel | 3(A/B/Z) |
| Output: | Differential |
| Shaft Size | 4mm |
| Connection | 9pin connector |
| Voltage: | 5V TTL |
| Z pulse width: | 1/2T cover w/o hole |
| Size | 28mm(Square)X12mm(H) |
