4CH CWDM 3g SDI Over Fiber Converter 4k 4x3g SDI Fiber Mux for Long Distance Transmission

Description

This 4CH CWDM 3G SDI TX&RX are fiber optic serial digital video transmission units that offer the industry’s broadest range of digital rates 3Gbps bandwidth while maintaining the signal quality that broadcasters demand.

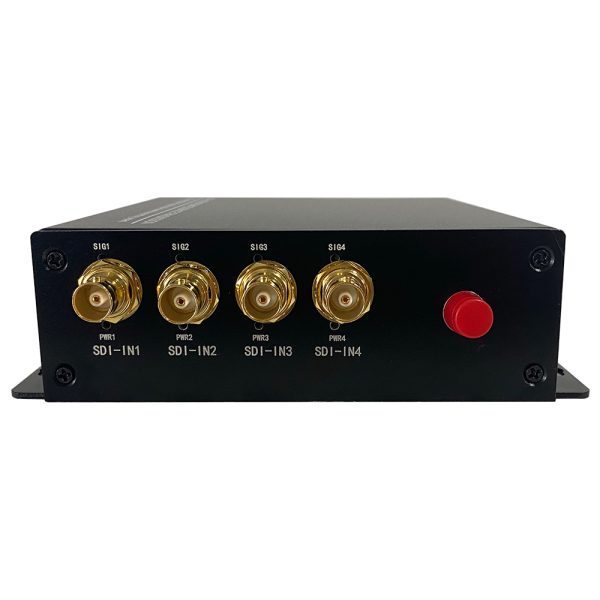

​The transmitter accepts a 75 ohm BNC input and converts it into an optical stream via a standard fiber optic connector.
​3.The transmitter BNC include equalization and reclocker for long lengths of coaxial cable, so you can use them at nearly any point in your SDI chain.
​The receiver unit converts the uncompressed signal back to BNC output.
​The receiver include reclocker and cable driver for long lengths of optical link, use our SFP module, support range 100KM@3Gbps MAX. Optic fiber transfer, so you can use them at nearly any point in your SDI chain.
​Both the transmitter and receiver modules include LED indicators to display Power On, SDI signal presence. The units use +5.0V power supply.
