Ferrite Devices OIS-170190-02-20-42

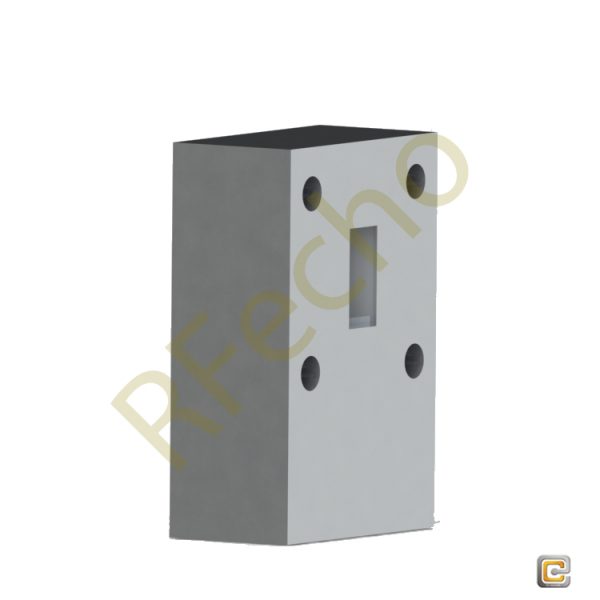

Model OIS-170190-02-20-42 is a K band waveguide junction isolator that covers the frequency range of 17.2 to 19.4GHz.Compared with a Faraday isolator, the waveguide junction isolator offers a lower insertion loss and a much shorter insertion length for system integration.
As a tradeoff, thewaveguide junction isolator offers a typical insertion loss of 0.2dB and anisolation of 20 dB, respectively. The isolator is magnetic shielded and isreadily for system integration.
The input and output ports are WR-42waveguides UG-595/U flanges with 4-40 threaded holes.

Add to Wishlist
Add to Wishlist
SKU: OIS-170190-02-20-42 Categories: ,
Get a Quote
Description

SPEC

Ferrite Devices



Model OIS-170190-02-20-42 is a K band waveguide junction isolator that covers the frequency range of 17.2 to 19.4GHz. Compared with a Faraday isolator, the waveguide junction isolator offers a lower insertion loss and a much shorter insertion length for system integration. As a tradeoff, the waveguide junction isolator offers a typical insertion loss of 0.2dB and an isolation of 20 dB, respectively.



The isolator is magnetic shielded and is readily for system integration. The input and output ports are WR-42 waveguides UG-595/U flanges with 4-40 threaded holes.



Features

Low Insertion Loss

Moderate Isolation

Compact Configuration





Applications

Port Isolation

Module Integration

Part No.

OIS-170190-02-20-42

RF Frequency Range(GHz)

17.2-19.4

Insertion Loss(dB)

    0.2

Isolation(dB)

    20

Return Loss

   15dB

Forward Power Handling(W) Reverse Power Handling(W)

Specification Temperature

Operating Temperature

5

1

+25 °C

-40°C~+85 °C





PDF

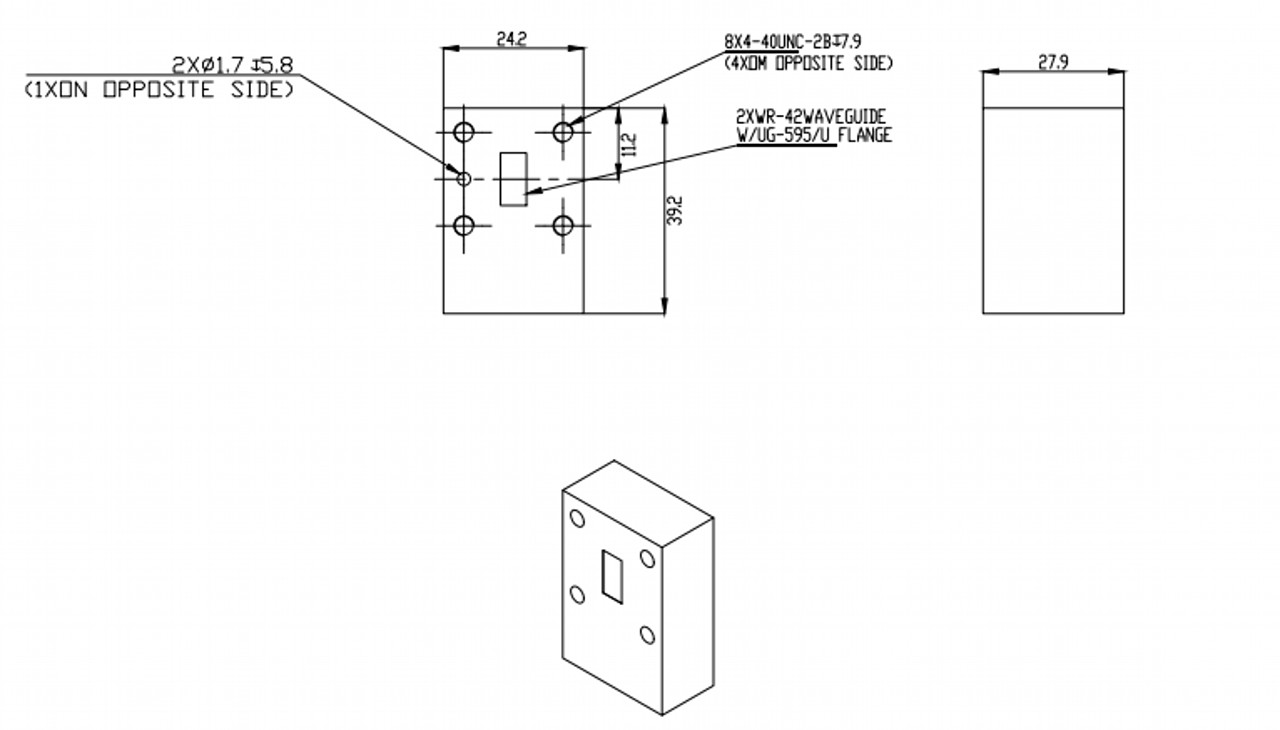

Outline

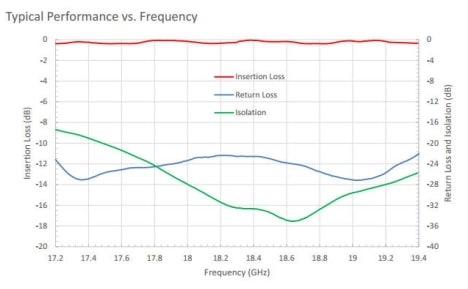

Plot

Additional information
Product Code

OIS-170190-02-20-42

Min Freq. (GHz)

17.2

Max Freq. (GHz)

19.4

Insertion Loss (dB)

0.20

Isolation (dB)

20

VSWR

NA
