Ferrite Devices OIS-180210-04-18-51

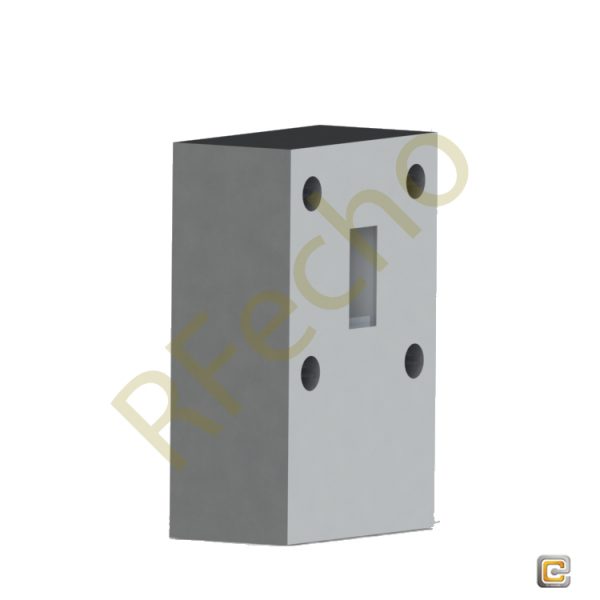

Model OIS-180210-04-18-51 is a WR-51 waveguide junction isolator that covers the frequency range of 18 to21GHz.
The waveguide junctionisolator is designed and manufactured to provide low insertion loss andmoderate isolation for system integration.
Compared with a Faradayisolator,it offers lower insertion loss and a much shorter insertionlength.
The WR-51 offers 18dB minimum isolation and 0.4dBmaximum insertion loss with good flatness.The input and output portsare WR-51 waveguides with UG-419/U-MS quare flanges.The isolatorimplements a U shaped magnet
- Description
- Additional information
Description
SPEC
|
Ferrite Devices |
|||
|
|
|||
|
Model OIS-180210-04-18-51 is a WR-51 waveguide junction isolator that covers the frequency range of 18 to21GHz. The waveguide junction isolator is designed and manufactured to provide low insertion loss and moderate isolation for system integration. Compared with a Faraday isolator, it offers lower insertion loss and a much shorter insertion length.
The WR-51 offers 18dB minimum isolation and 0.4dB maximum insertion loss with good flatness. The input and output ports are WR-51 waveguides with UG-419/U-MS square flanges. The isolator implements a U shaped magnet shielding steel cover to protect it from magnetic field interface.
|
Features Low Insertion Loss Moderate Isolation Compact Configuration
Applications Port Isolation Module Integration |
||
|
Part No. |
OIS-180210-04-18-51 |
||
|
RF Frequency Range(GHz) |
18-21 |
||
|
Insertion Loss(dB) |
0.4 |
||
|
Isolation(dB) |
18 |
||
|
VSWR |
1.4:1 |
||
|
Forward Power Handling(W) Reverse Power Handling(W) Operating Temperature |
5 2 -40°C~+85 °C |
||
|
|
|
||

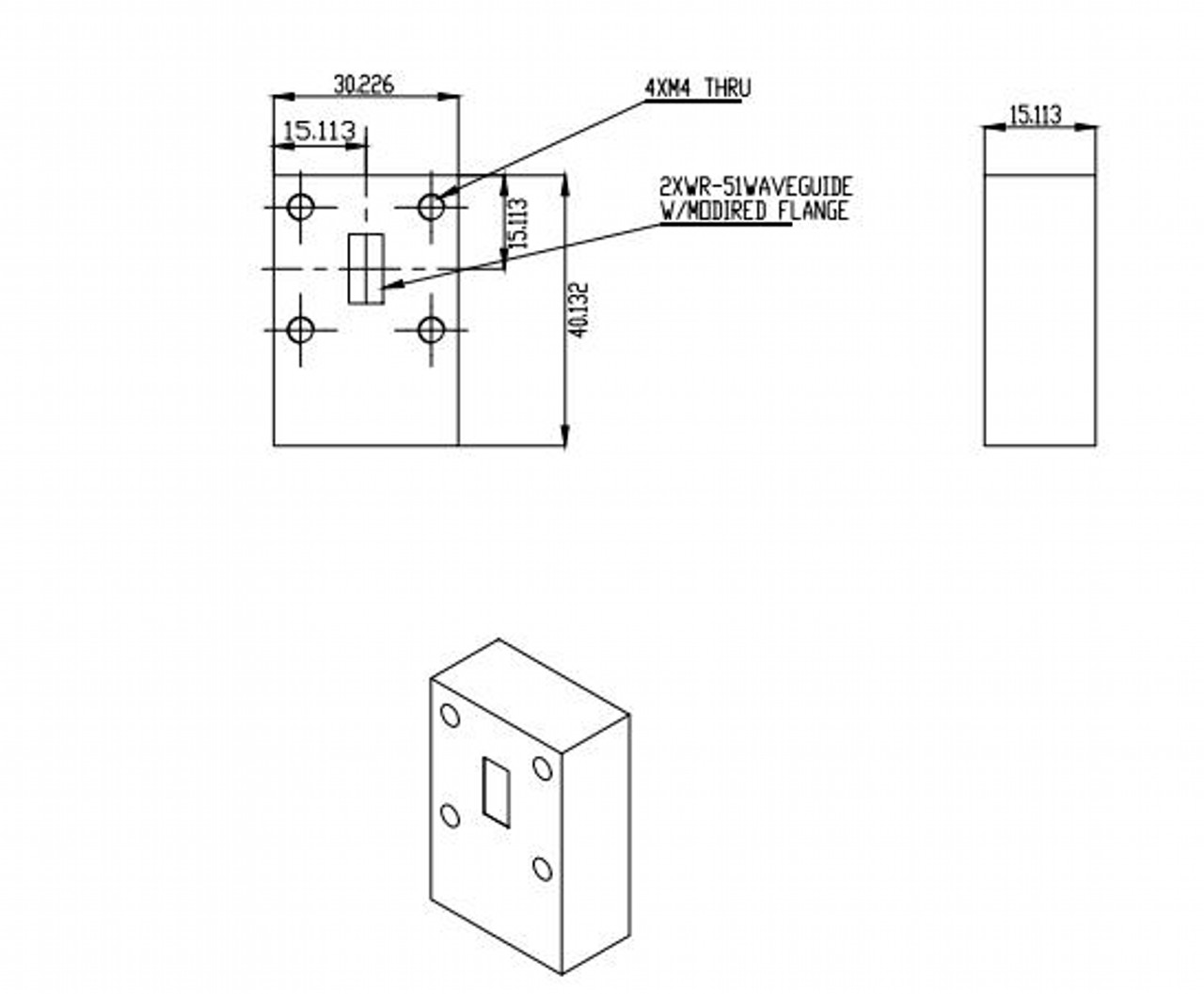

Outline
