Ferrite Devices OIS-270400-16-14-KFKF-I

Model OIS-270400-16-14-KFKF-I is a full Ka band coaxial isolator that covers the frequency range of 26.5 to 40GHz.
The full band isolator is designed andmanufactured to provide an insertion loss of 1.6dB typical with good flatness. The isolator also offers a moderate isolation of 14dB and a high-power handling forsystem integration.The input and output ports are K (F) connectors.
The RF interface of other type of connector combinations are also offered under differentmodel numbers.

Add to Wishlist
Add to Wishlist
SKU: OIS-270400-16-14-KFKF-I Categories: ,
Get a Quote
Description

SPEC

Ferrite Devices



Model SNC-2734031614-KFKF-I7 is a full Ka band coaxial isolator that covers the frequency range of 26.5 to 40GHz. The full band isolator is designed and manufactured to provide an insertion loss of 1.6dB typical with good flatness.



The isolator also offers a moderate isolation of 14dB and a high-power handling for system integration. The input and output ports are K (F) connectors. The RF interface of other type of connector combinations are also offered under different model numbers.



Features

Low Insertion Loss

Moderate Isolation

Compact Configuration







Applications

Port Isolation

Module Integration

Part No.

SNC-2734031614-KFKF-I7

RF Frequency Range(GHz)

26.5-40

Insertion Loss(dB)

    1.6

Isolation(dB)

    14

Return Loss(dB)

    12

Forward Power Handling(W) Reverse Power Handling(W)

Specification Temperature

Operating Temperature

Impedance

10

1

+25 °C

-40°C~+80 °C

50 Ω





PDF

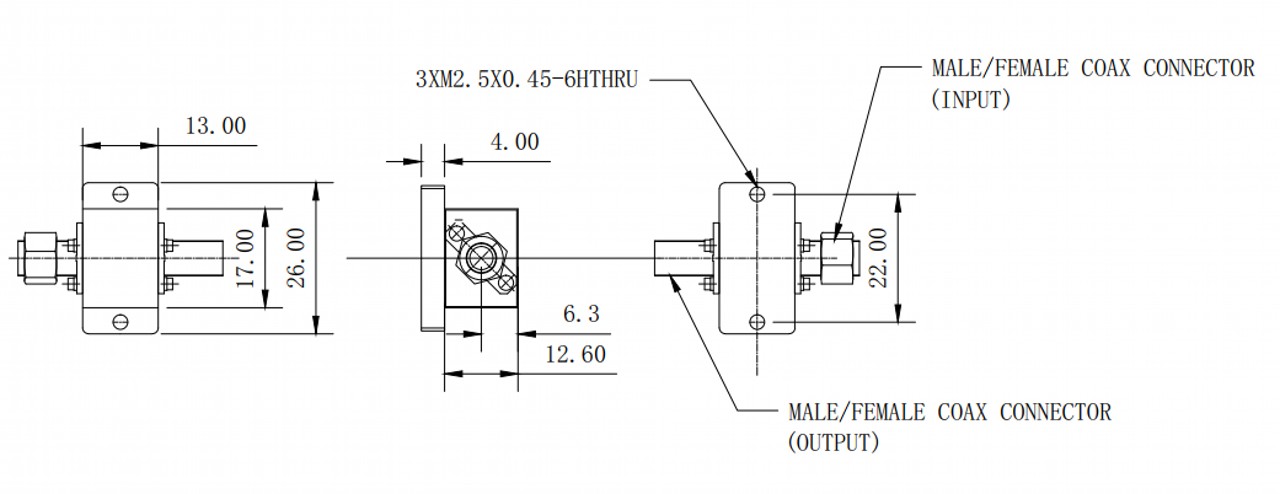

Outline

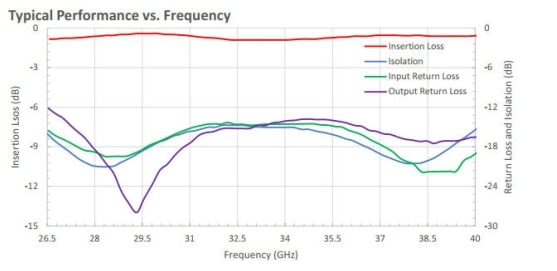

Plot

Additional information
Product Code

OIS-270400-16-14-KFKF-I

Min Freq. (GHz)

26.5

Max Freq. (GHz)

40.0

Insertion Loss (dB)

1.60

Isolation (dB)

14

VSWR

NA
