Ferrite Devices OIS-340360-05-18-28

Ferrite Devices OIS-340360-05-18-28

0 out of 5

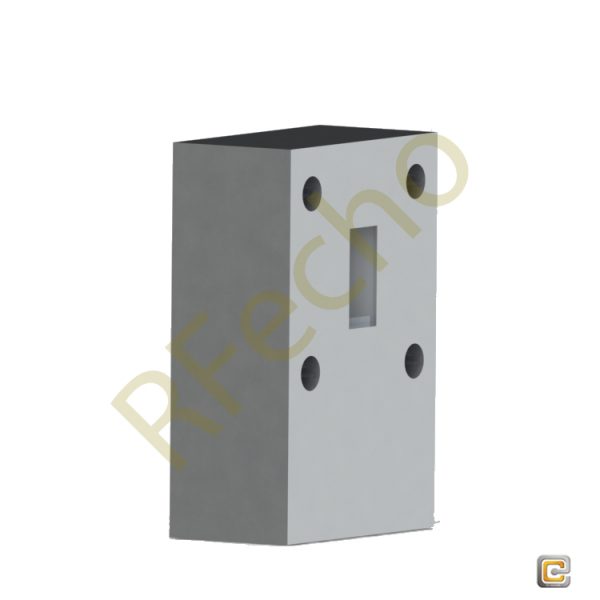

Model OIS-340360-05-18-28 is a Ka band waveguide junction isolator that covers the frequency range of 33.6 to 36.4GHz.
Compared with a Faradayisolator, the waveguide junction isolator offers a lower insertion loss of 0.5 dB typical and a much shorter insertion length for system integration. As a trade off, the waveguide junction isolator only offers a typical isolation of 18 dB.
The input and output ports are WR-28 waveguides withUG-599/U flanges.

SKU: OIS-340360-05-18-28 Categories: Ferrite Devices, Routing

Description

SPEC

Ferrite Devices



Model OIS-340360-05-18-28 is a Ka band waveguide junction isolator that covers the frequency range of 33.6 to 36.4GHz. Compared with a Faraday isolator, the waveguide junction isolator offers a lower insertion loss of 0.5 dB typical and a much shorter insertion length for system integration.



As a trade off, the waveguide junction isolator only offers a typical isolation of 18dB. The input and output ports are WR-28 waveguides with UG-599/U flanges.



Features

Low Insertion Loss

Moderate Isolation

Compact Configuration





Applications

Port Isolation

Module Integration

Part No.

OIS-340360-05-18-28

RF Frequency Range(GHz)

33.6-36.4

Insertion Loss(dB)

    0.5

Isolation(dB)

    18

VSWR

    1.35:1

Forward Power Handling(W) Reverse Power Handling(W)

Specification Temperature

Operating Temperature

8(CW)

2(CW)

+25 °C

-45°C~+85 °C





PDF

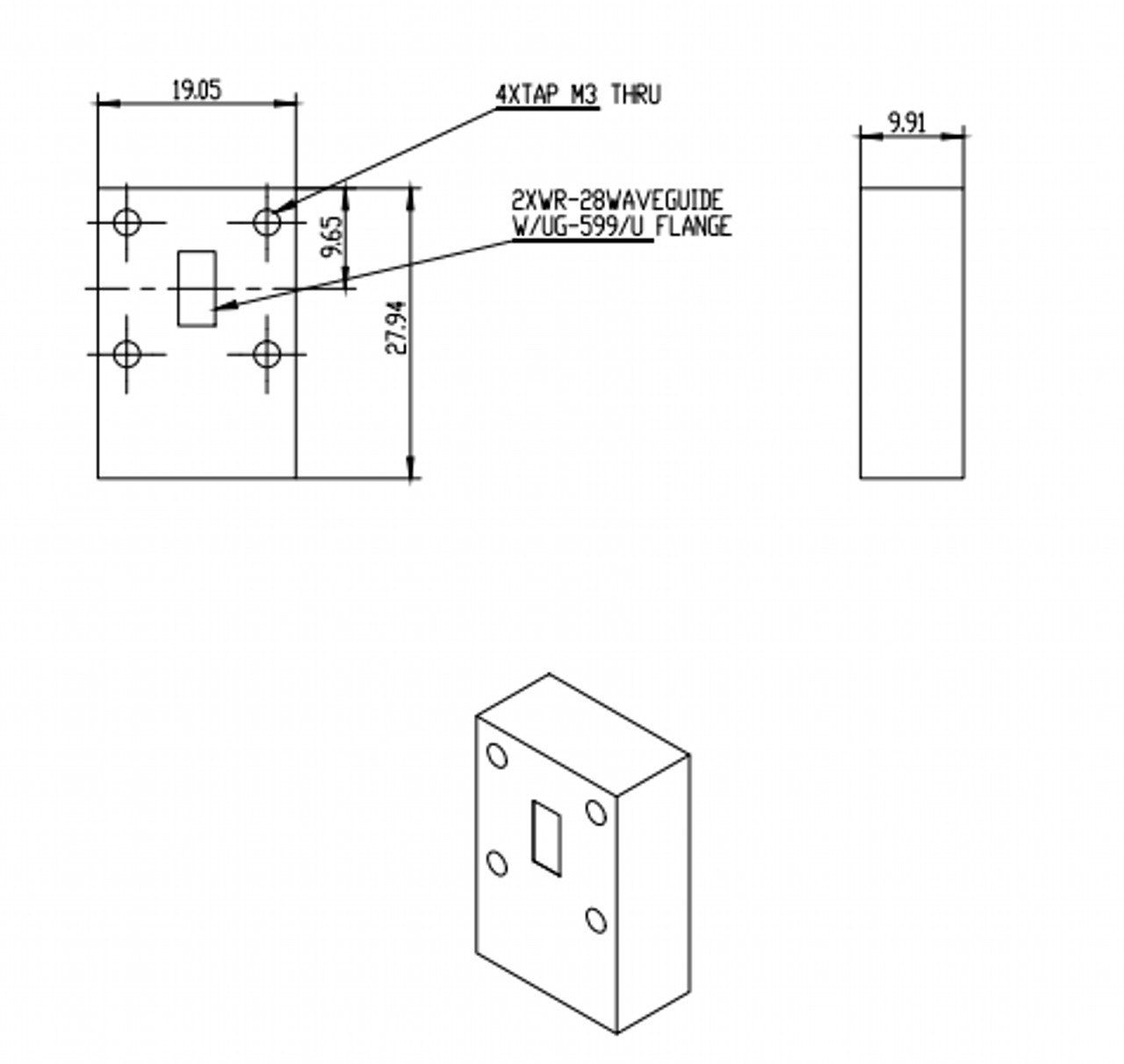

Outline

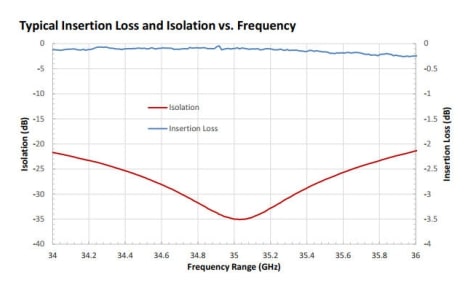

Plot

Additional information

Min. Frequency (GHz)

33.6

Max. Frequency (GHz)

36.4

Insertion Loss (dB)

0.5

Isolation (dB)

18

VSWR

1.35:1
